Desalination: Transforming Seawater into Fresh, Drinkable Water
Desalination: Transforming Seawater into Fresh, Drinkable Water
1. Introduction
Water is essential for all forms of life, yet 97% of the Earth's water is found in the oceans and is unsuitable for drinking due to its high salinity.
Desalination（filtering salt water), the process of converting saline or brackish water into potable water, is a crucial solution for many regions facing freshwater shortages.
How does desalination turn seawater into drinking water?
Countries, municipalities, military forces, and ships rely on desalination to provide a stable and sustainable source of drinking water.
This technology not only ensures human survival in arid and water-scarce regions but also promotes industrial and economic growth in areas that would otherwise remain uninhabitable.
The increasing global demand for clean drinking water has made desalination an essential technology, especially in coastal and dry regions. With advancements in desalination methods, this process has become more efficient and accessible.
The most widely used method today is reverse osmosis (RO), which removes salt and impurities using specialized membranes. This article provides a detailed overview of desalination, its benefits, technological advancements, and the challenges it faces.
2. Advantages of Desalination
Desalination offers multiple advantages:
💧Abundant Water Source: With 97% of Earth's water being saline, desalination provides an almost unlimited supply of water for human consumption and industrial use.
💧 Reliable Water Supply: Unlike freshwater sources, which are dependent on climate and geography, seawater is available year-round, making desalination a reliable option.
💧 Coastal Infrastructure Feasibility: Desalination plants can be built along coastlines, reducing transportation costs and providing water to inland areas through pipelines.
💧 Drought Resistance: Unlike lakes and rivers that may dry up due to climate change, seawater remains stable, ensuring a consistent water supply.
Despite these benefits, desalination requires significant energy and infrastructure, making cost efficiency and sustainability key concerns. Energy-efficient desalination methods are continuously being developed to address these challenges.
3. Main Desalination Methods
There are two primary methods for desalinating water:
a) Distillation
Distillation is one of the oldest desalination techniques. It involves heating seawater to generate steam, which is then condensed into freshwater, leaving salts and impurities behind. However, the high energy consumption of distillation makes it less practical for large-scale applications. Reverse osmosis vs thermal desalination remains a key debate when selecting desalination technologies.
Variants of distillation include:

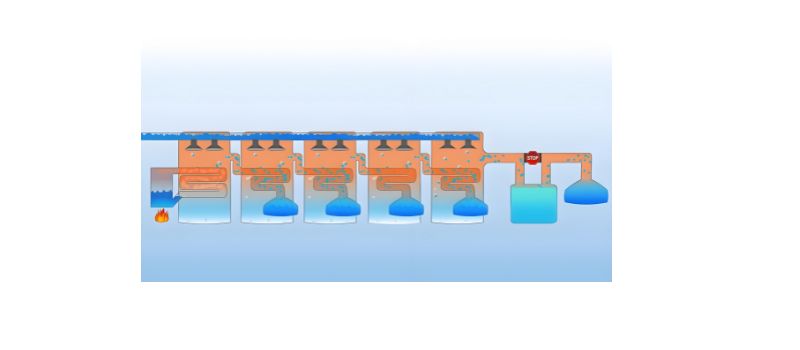

💧 Multi-Stage Flash (MSF) Distillation: Uses multiple chambers with decreasing pressure to flash-evaporate water efficiently.
💧 Multi-Effect Distillation (MED): Employs multiple evaporator chambers, each using waste heat from the previous stage to improve efficiency.
b) Reverse Osmosis (RO)
Reverse osmosis has become the dominant desalination technology due to its energy efficiency and high effectiveness. It was first developed in 1969 when engineer Dean Spatz discovered that semi-permeable membranes could be used to remove salt from water. Today, RO accounts for over 60% of desalination plants worldwide.
Best desalination technologies for clean water involve continuous advancements in membrane materials and energy recovery systems to enhance efficiency.
RO technology forces seawater through a specialized membrane under high pressure, separating freshwater from dissolved salts and contaminants. The process has been continuously improved, with modern RO membranes achieving 99% or higher salt rejection rates.

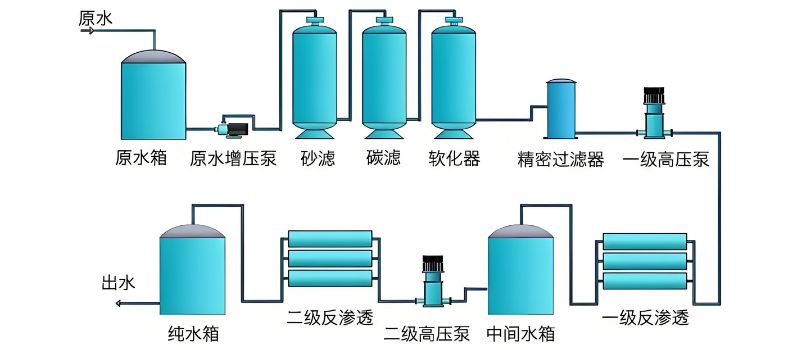

4. The Desalination Process: Step-by-Step
The desalination process consists of multiple stages, each designed to optimize water purification while minimizing environmental and operational challenges.
Step 1: Pretreatment
Before reaching the reverse osmosis stage, seawater must undergo extensive pretreatment to remove suspended solids, organic matter, and microorganisms. Seawater contains:
💧 Algae, bacteria, and zooplankton
💧 Fine sand, sediment, and crushed shell particles
💧 Dissolved organic matter, including transparent exopolymers (TEPs), which cause biofouling
To remove these impurities, the raw water is treated with coagulation and flocculation agents. Pretreatment filters for desalination plants play a critical role in ensuring efficient RO membrane performance.
such as ferric sulfate or polyelectrolytes, which help suspended particles aggregate and settle.
Step 2: Multi-Media Filtration
The water then passes through multi-media filtration, which consists of layers of coarse gravel, sand, anthracite, and garnet. These materials capture remaining particulates before the water moves to the next stage. Some systems also use diatomaceous earth filters for finer filtration.
Step 3: High-Pressure Pumping
At this stage, the clarified water is pressurized using specialized pumps. There are two main types of pumps used:
💧 Centrifugal Pumps: Suitable for large-scale desalination plants.
💧 Positive Displacement (Plunger) Pumps: More common in small-to-medium plants (1,000–100,000 gallons per day). These pumps require dampeners to control pressure fluctuations.
The water is typically pressurized to 600–1,000 psi (pounds per square inch)（approximately 41–69 Mpa） to overcome osmotic pressure and push water through the RO membranes.
Step 4: Reverse Osmosis (RO) Membrane Filtration
Reverse osmosis (RO) is the core process of desalination, effectively removing dissolved salts, minerals, and contaminants from seawater. During this stage, high-pressure pumps force pretreated water through semi-permeable RO membranes, allowing only water molecules to pass while blocking dissolved solids, bacteria, and other impurities. RO membranes have an exceptionally fine pore size of 0.001 microns, ensuring a 99% or higher salt rejection rate with a 45% or higher recovery rate.
However, protection filtration is critical to maintaining the efficiency and lifespan of RO membranes. Without proper pre-filtration, contaminants such as sediment, rust, organic matter, and biofouling agents can clog or damage the membranes, leading to reduced performance, increased energy consumption, and higher operational costs.
Best filters for reverse osmosis desalination include polypropylene melt-blown cartridge filters, string wound filters, and high-flow cartridge filters.
Different micron-rated filter cartridges are used to eliminate various sizes of contaminants before the water reaches the RO membranes:
💧 Microfiltration (0.1–1 µm): Removes bacteria and large particles.
💧 Ultrafiltration (0.01–0.1 µm): Captures proteins and viruses.
💧 Nanofiltration (0.001–0.01 µm): Filters out dissolved salts and organic molecules.
To ensure effective RO membrane protection, the following types of cartridge filters are commonly used:
Polypropylene Melt Blown Cartridge Filter
This is one of the most widely used pre-filters in RO systems, designed to remove sediment, dirt, rust, and other large particles from the water. With a high dirt-holding capacity, these filters offer extended service life and improve the overall performance of the RO system. Melt-blown filters are constructed from multiple layers of thermally bonded polypropylene fibers, which provide graded filtration—capturing larger particles on the outer layers while finer particles are trapped within the inner layers.
Polypropylene String Wound Cartridge Filter
Another effective pre-filtration option, this filter consists of tightly wound polypropylene fibers wrapped around a core, creating a dense and durable structure. It provides excellent filtration efficiency while minimizing fiber shedding into the water. String wound filters are ideal for applications requiring fine filtration at an economical cost, offering consistent particle retention and minimal pressure drop.
For large-scale desalination plants and high-capacity RO systems, high flow cartridge filters offer a more advanced protection filtration solution. These filters are designed to handle higher flow rates while maintaining excellent filtration performance. With a larger surface area, they can capture more contaminants, extend filter life, and reduce maintenance costs. One of the most popular options, such as the Max A high flow cartridge filter, provides a large outer diameter and high water flow capacity, making it highly efficient for pre-RO filtration.
By integrating these filtration technologies, desalination plants can prolong membrane lifespan, reduce fouling, and enhance overall system efficiency, ensuring a more reliable supply of purified water.
Step 5: Post-Treatment and Storage
Even after reverse osmosis (RO) membrane filtration, ultrafine particles and trace contaminants may remain in the water.
Filtration systems for seawater desalination employ absolute-rated filter cartridges(with precision pore sizes below 0.1 microns) to achieve the highest purity standards.
Polypropylene Pleated Cartridge Filter
The pleated design increases the effective filtration area by 3-5 times compared to standard cylindrical filters, with a 50% higher contaminant-holding capacity and a service life of up to 12 months, significantly reducing maintenance costs.
High-Flow Cartridge Filter
Designed for large-scale plants with daily capacities exceeding 100,000 tons, each filter supports flow rates of 50 m³/h and a contaminant load capacity of 5 kg, ideal for continuous high-intensity operations.
Final Precision Filtration
Before disinfection, water undergoes:
💧 Polypropylene Pleated Filter: Removes particles >1 micron.
💧 PES Membrane Filter: Eliminates 99.99% of microorganisms (including Cryptosporidium) via a 0.02-micron absolute pore size, requiring monthly chemical cleaning to maintain flux.
Disinfection and Storage
💧 Ultraviolet (UV) Disinfection: A high-dose 40 mJ/cm² UV system inactivates chlorine-resistant pathogens (e.g., Giardia).
💧 Chemical Disinfection: Chloramine is added to maintain a residual chlorine level of 0.2–0.5 mg/L in distribution pipelines, which reduces the formation of carcinogenic byproducts such as trihalomethanes.
💧 Remineralization: pH is stabilized at 7.8–8.2 using a calcium carbonate-CO₂ balancing method, while food-grade magnesium sulfate (MgSO₄) is added to achieve calcium and magnesium concentrations of 30–50 mg/L, complying with WHO drinking water guidelines.
After these treatments, desalinated water is safely distributed to residential, industrial, and municipal networks, serving as a reliable freshwater source for arid regions.
5.Is Desalination a Viable Solution?

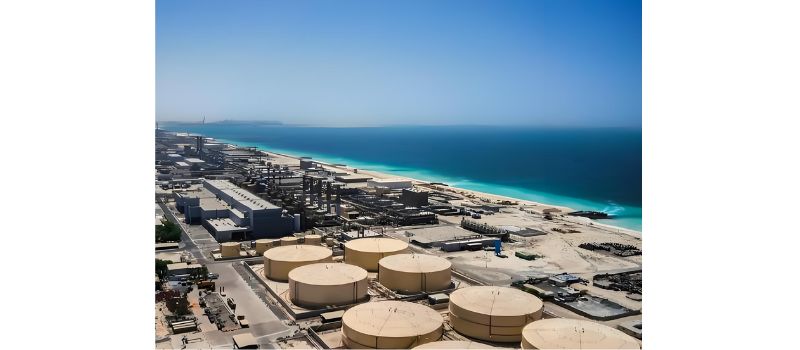

Desalination is increasingly being adopted in water-scarce regions, including the Middle East, Australia, California, and South Africa. While effective, the process has challenges:
💧 Energy Consumption: RO plants require significant electricity, increasing operational costs.
💧 Environmental Concerns: Brine (highly concentrated saltwater) disposal can harm marine ecosystems if not properly managed.
💧 Infrastructure Investment: High capital costs make large-scale desalination projects expensive.
However, technological advancements, such as energy recovery devices (ERDs) and innovations in desalination for sustainable water supply, are reducing energy use and improving sustainability.
Solar-powered desalination, are reducing energy use and improving sustainability.
Environmental impact of desalination plants is another key concern, as brine disposal can harm marine ecosystems if not properly managed.
Desalination for offshore oil and gas platforms is gaining traction as industries seek reliable freshwater sources in remote locations.
6. Conclusion
Desalination plays a critical role in addressing global water shortages, particularly in coastal and arid regions. Reverse osmosis technology has become the leading method due to its efficiency and effectiveness. While challenges remain in terms of cost and environmental impact, continued innovation in membrane technology, energy efficiency, and waste management will make desalination a more sustainable and accessible solution.
As fresh water becomes scarcer, desalination will likely become an increasingly essential component of global water management strategies.
How desalination helps solve water scarcity problems? It ensures a reliable supply of clean drinking water for future generations.
