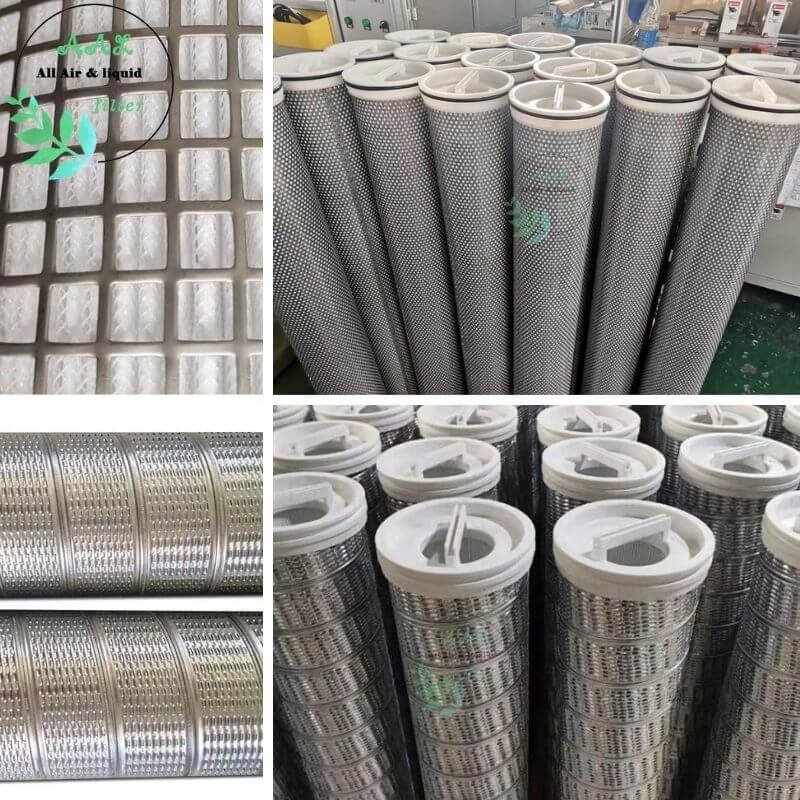

Glassfiber High Flow Filter Cartridge – Metal Cage & Nylon Caps for Oil & Petrochemical Filtration
- Fiberglass filter media for high-temperature resistance
- Stainless steel outer cage for pressure durability
- Nylon end caps with Viton O-ring seal
- Inward filtration flow, high dirt-holding capacity
Glass Fiber Pleated High Flow Filter Cartridge
Ideal for Petrochemical and Harsh Industrial Liquid Filtration Applications
Product Overview
Our Glass Fiber Pleated High Flow Filter Cartridge is designed for demanding industrial liquid filtration applications, especially in the petrochemical, oil & gas, power generation, and chemical processing industries. This cartridge combines depth filtration and high surface area with a robust metal outer cage, offering exceptional dirt-holding capacity and structural strength. The use of glass fiber media ensures high temperature and chemical resistance, while the nylon-reinforced end caps and Viton (FKM) seals provide reliable sealing under aggressive operating conditions.
Key Features
✅ High Temperature Resistance – Glass fiber media handles elevated temperatures and harsh fluids.
✅ Metal Outer Cage – Ensures maximum durability and stability under high flow and pressure.
✅ Chemical Compatibility – Suitable for acids, bases, solvents, and hydrocarbons.
✅ High Flow, Long Life – Pleated design maximizes surface area and service life.
✅ Inside-to-Outside Flow – Traps contaminants within the filter body to prevent downstream contamination.
✅ Reliable Sealing – Nylon end caps and Viton O-rings ensure leak-free performance in critical processes.
Specifications
Parameter | Details |
Filter Media | Glass Fiber (Depth Fine) |
Outer Cage | Stainless Steel |
End Caps | Nylon (Glass Fiber Reinforced) |
Seal Material | Viton (FKM) |
Lengths Available | 20", 40", 60", 80" |
Outer Diameter | 6" (152mm) |
Inner Diameter | 73.5mm |
Micron Ratings | 1μm to 100μm |
Max Operating Temperature | 120°C (248°F)-260°C（500°F） |
Max Operating Pressure | 3 bar @ 21°C |
Surface Area | 3.5–10.5㎡ depending on length |
Flow Direction | Inside to Outside |
Change-Out Pressure | Recommended at 2.5 bar @ 20°C |
Applications
Petrochemical & Refining: Filtration of lubricants, hydrocarbons, amines, and glycol.
Oil & Gas: Injection water, produced water, and chemical fluids filtration.
Power Generation: Turbine lube oil, boiler feedwater, and condensate polishing.
Chemical Processing: Acids, alkalis, solvents, and process fluids.
Metal Finishing & Steel Mills: Cooling water and rolling mill fluids.
Paints, Coatings & Inks: Final filtration to remove particles and gels.
Water Treatment (Pre-RO): For high-temperature, high-pressure pre-filtration.
Why Choose This Filter?
Rugged design suitable for critical filtration processes in corrosive and high-pressure environments.
Excellent alternative to Pall Ultipleat®/PECO and other high flow filters with added thermal and chemical durability.
Easy integration into existing high flow filtration systems with minimal system modifications.
Contact us today to request samples, technical data sheets, or a quote tailored to your filtration system.
