SS Bag Filter Housing – Single & Multi-Bag Design for Water, Oil, and Chemical Use
- Strong corrosion resistance and high temperature tolerance
- Efficient filtration and strong compatibility
- Compact structure and stable design
- Easy operation and low maintenance costs

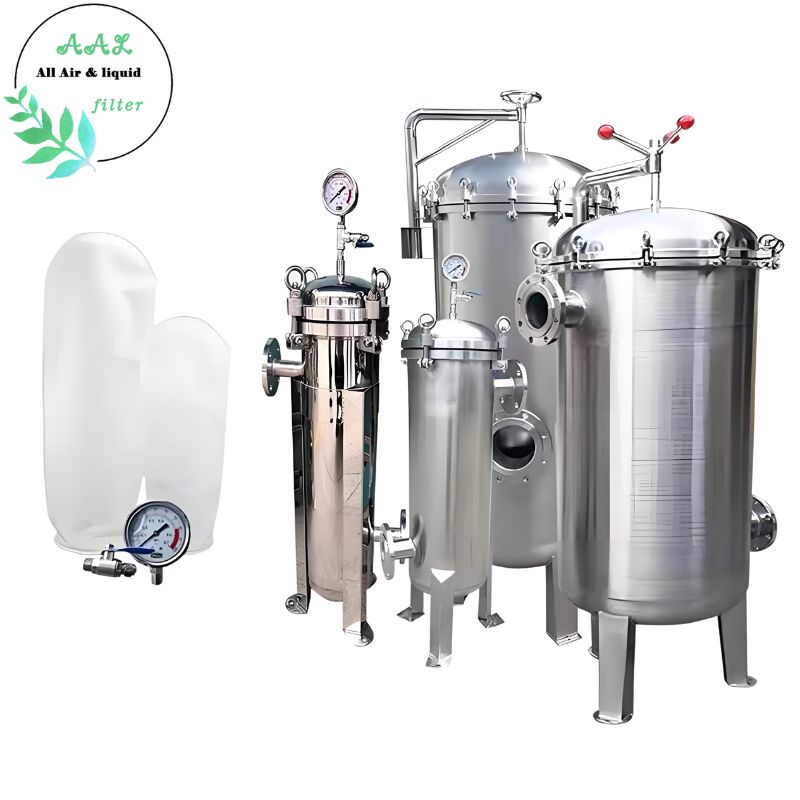

SS Stainless Steel Bag Filter Housing
Product Overview
AALfilter's SS Bag Filter Housing is engineered with both single-bag and multi-bag configurations, offering a flexible and efficient solution for various liquid filtration needs in industries such as water treatment, chemical processing, and oil filtration. Constructed from durable 304 or 316L stainless steel, this housing ensures excellent corrosion resistance, high pressure tolerance, and long service life. Compatible with standard filter bags of various micron ratings, it supports high flow rates and minimal maintenance downtime.
Learn more about our high-quality filter bags compatible with this housing.
Curious about how it compares? See the difference between bag filter housing and cartridge filter vessel to choose the best option for your application.
Key Features:
✅ High Filtration Efficiency: Large processing capacity, high filtration accuracy, and low filtration resistance.
✅ Durable Construction: Made from SS304 or SS316L stainless steel, resistant to corrosion and high pressure.
✅ Compact Design: Small footprint, easy installation, and simple operation.
✅ Flexible Configuration: Supports single or multi-bag setups, with adjustable mounting legs for height flexibility.
✅ Sealing Performance: Double O-ring sealing ensures no side leakage, with rotary ring-pommel fast-loading bolts for easy maintenance.
✅ Versatile Compatibility: Compatible with various filter bag materials (PE, PP, NMO, PTFE) and suitable for a wide range of applications.
✅ Surface Treatment Options: Mirror polishing, sub-polishing, or sandblast finishing available for different requirements.
Specifications:
Parameter | Details |
Material | Housing: SS304/316L; Vent/Drain Valve: SS304; Seals: EPDM/Silicone/Viton, etc. |
Cartridge Size | Length: 10", 20", 30", 40"; OD: 2.5" (pleated) |
Flow Rate (Single Cartridge) | 10": 0.5 m³/h; 20": 1 m³/h; 30": 1.5 m³/h; 40": 2 m³/h |
Connection Types | Inlet/Outlet: Flange/Thread/Quick Valve; Connection Method: Clamp |
Surface Finish | Mirror polishing (Ra ≤0.3µm inner, 0.4µm outer) or sandblasting |
Operational Parameters | Design Pressure: 1.0 MPa; Max. Pressure: 0.8 MPa; Temp. Resistance: 130℃; Sterilization Temp.: 121℃±2℃ |
Cartridge Configuration | Quantity: 1-15 cartridges; End Cap Types: DOE/222/226 O-rings (flat/fin) |
Type | Type 1 | Type 2 | Type 3 | Type 4 | Type 5 |
Bag Size (mm) | 180×450 | 180×810 | 105×230 | 105×380 | 150×560 |
Single Bag Flow Rate (M³/H) | 20 | 40 | 6 | 12 | 20 |
Single Bag Filtration Area (M²) | 0.25 | 0.5 | 0.09 | 0.16 | 0.25 |
Single Bag Filtration Volume | 8L | 17L | 1.3L | 2.5L | 8L |
Bag Quantity | 1-8pcs bags (customizable) | ||||
Inlet/Outlet Connection | Quick Valve, Flange, Thread | ||||
Inlet/Outlet Diameter | 1", 1.5", 2", Customized Size | ||||
Filtration Bag Media | PE, PP, NMO, PTFE |
Tech Support
Our team is available for troubleshooting, technical assistance, and to help you select the right filtration solutions for your applications.
Applications
✅ Food and Beverage: Filtration of juices, wines, dairy products, and other liquids.
✅ Water Treatment: Pre-RO filtration, wastewater treatment, and ultrapure water preparation.
✅ Oil and Chemical: Filtration of oils, chemicals, and solvents.
✅ Pharmaceuticals: Sterile filtration of injectables, biologics, and other pharmaceutical products.
✅ Electronics: High-purity filtration for semiconductor manufacturing.
✅ Petrochemicals: Filtration of fuels, lubricants, and petrochemical products.
✅ Inks & Polymers: Filtration of inks, coatings, and polymer solutions.
