Power Plant Filtration For boiler feed, cooling,condensate and wastewater treatment

Water treatment plays a crucial role in power plants, particularly in the management of water used for boiler feed, cooling, condensate filtration and wastewater treatment. These processes help prevent corrosion, scaling, and microbial contamination, while also promoting water reuse and reducing operational costs. Below is a detailed overview of key water filtration processes specifically for power plant applications.

1. Power Plant's Boiler Feed Water Treatment

Application: Supplying high-purity water to boilers, ensuring optimal performance and preventing damage from scaling and corrosion.

Core Goal: Maintain ultra-pure water with an electrical conductivity of less than 0.1 μS/cm to protect boiler systems.

Filtration Products and Process:

Pre-treatment:

1. Multimedia Filters: Remove suspended solids and particulate matter.

2. Activated Carbon Adsorption: Eliminate organic compounds and residual chlorine.

3. Softening (Ion Exchange Resins): Remove hardness-causing ions like Ca²⁺ and Mg²⁺.

Depth Treatment:

1. Reverse Osmosis (RO): Removes salts and dissolved solids, with a desalination rate of over 98%.

2. Electrodeionization (EDI) or Mixed Bed Ion Exchange (MB): Produce ultra-pure water with a high level of purity for boiler use.

3. Wound Filter Cartridges (1–5 μm): These high-efficiency filter cartridges effectively remove fine particles and protect downstream RO membranes and ion exchange resins from fouling.

Challenges: Fluctuations in water quality (e.g., high TDS or hardness).
Solution: Utilize online water quality monitoring systems (pH, ORP, conductivity) and automatic regeneration systems for real-time adjustments.

Filtration Process:

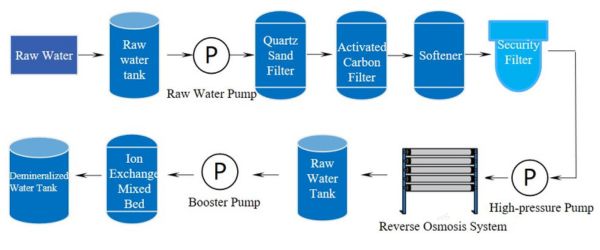

1. Raw water → Multimedia filtration → Activated carbon adsorption → Softening →Wound filter cartridge→Reverse Osmosis (RO) → EDI/MB for ultra-pure water.

2. Condensate Filtration

Application: Recovery and treatment of turbine condensate water to remove corrosion byproducts (Fe, Cu) and trace ions (Cl⁻, SO₄²⁻).

Core Goal: Ensure turbine condensate meets ASTM D4519 standards for water reuse in the system, reducing waste and operational costs.

Filtration Products and Process:

Pre-treatment:

1. Wound Filter Cartridges (5–10 μm): Remove suspended particles from the condensate.

2. High-Flow Filter Cartridges (5–10 μm): Designed for high-capacity condensate filtration, these cartridges effectively remove suspended particles and reduce the load on downstream ion exchange systems.

Ion Exchange:

1. High-Speed Mixed Bed Ion Exchange: Removes trace ions and maintains water quality suitable for turbine condensate reuse.

2. Powdered Resin (POWDEX): Used to achieve finer ion removal for high-quality condensate water.

Case Study: In a supercritical boiler unit, iron content was reduced from 200 ppb to <5 ppb using a combination of electromagnetic filters and high-speed mixed beds, achieving substantial annual savings in water treatment.

Filtration Process:

1. Condensate water → Wound filter cartridge / flow filter cartridge→ High-speed mixed bed ion exchange → Polished condensate ready for reuse.

3. Power Generation's Cooling Water Treatment

Application: Filtration of cooling water for power plants and other industrial facilities to prevent scale formation, corrosion, and microbial growth (e.g., Legionella bacteria).

Core Goal: Maintain a stable water quality to prevent scaling and corrosion in cooling towers and heat exchangers.

Filtration Products and Process:

Physical Treatment:

1. Bypass Filtration (Automatic Backwash Filters, 50 μm): Removes larger particles and debris.

2. UV Sterilization (254 nm): Inactivates harmful microorganisms and bacteria.

Chemical Treatment:

1. Corrosion Inhibitors: Prevents rust and corrosion in cooling systems.

2. Scale Inhibitors: Prevents the formation of scaling compounds like calcium carbonate.

3. Biocides and Dispersants: Controls microbial growth and biofouling in cooling systems.

Innovative Solution: Electrochemical Water Treatment (ECW): A chemical-free alternative that reduces operational costs by 30%, helping to maintain optimal water quality while reducing chemical consumption.

Filtration Process:

1. Cooling water → Bypass filtration → UV disinfection → Chemical treatment → Water distribution to cooling towers and heat exchangers.

4. Wastewater Treatment in Power Plant

Application: Wastewater treatment in power plants, which generated from flue gas desulfurization (FGD) processes.

Core Goal: Remove heavy metals (Hg, As), suspended solids (gypsum), and high-concentration chloride (Cl⁻) from FGD wastewater, enabling efficient reuse.

Filtration Products and Process:

Chemical Precipitation:

1. Lime Addition: Adjust pH to 9–10 to precipitate heavy metals and gypsum particles.

Filtration:

1. Clarifiers + Plate-and-Frame Filter Presses: Dewater sludge to <30% moisture content for easy disposal or further treatment.

Depth Treatment:

1. Membrane Distillation (MD) or Reverse Osmosis (RO): Further treatment to recover clean water for reuse.

Case Study: A power plant utilized Vibratory Membrane Technology to improve the FGD wastewater recovery rate to 90%, reducing the volume of sludge produced by 40%.

Filtration Process:

1. FGD wastewater → Lime precipitation → Clarification → Plate-and-frame filtration → MD/RO → Reuse of treated water.

5. Ash Slurry Water Treatment of Power Generation

Application: Treatment of ash slurry produced in coal-fired power plants to remove suspended solids (SS >10,000 mg/L) and reduce the pH (high pH >11).

Core Goal: Remove large quantities of ash and suspended solids to ensure the water is suitable for closed-loop recycling.

Filtration Products and Process:

Sedimentation:

1. Gravity Settling + Flocculants (PAC/PAM): Accelerates the separation of ash particles from water.

Filtration:

1. Ceramic Membranes (0.1 μm) or Centrifugation: Achieves SS < 50 mg/L for closed-loop recycling and water reuse.

Filtration Process:

1. Ash slurry → Sedimentation → Flocculation → Ceramic membrane filtration → Recycled water for use.

6. Makeup Water Treatment for Plant Generation

Application: Treatment of surface water, groundwater, or seawater to produce high-quality makeup water for industrial processes.

Core Goal: Ensure water quality meets the required standards for use in boilers, cooling systems, and other critical processes.

Filtration Products and Process:

Surface Water Treatment:

1. Ultrafiltration (UF): Removes large particles and microorganisms from raw water.

2. Two-Stage Reverse Osmosis (RO): Final desalination and TDS removal.

Seawater Treatment:

1. Seawater Reverse Osmosis (SWRO): Desalination with a rate of 99.7% and energy recovery devices (ERD) to save 35% energy consumption.

Filtration Process:

1. Surface water → UF → Two-stage RO → High-quality makeup water.

7. Zero Liquid Discharge (ZLD) Systems

Application: Achieving zero liquid discharge to minimize wastewater disposal and recover almost all the water used in industrial processes.

Core Goal: Reduce waste and optimize water recovery, especially in water-intensive industries like power generation.

Filtration Products and Process:

Concentration Reduction:

1. High-Efficiency Reverse Osmosis (HERO): Concentrates brine for further treatment.

2. Electrodialysis (ED): Further reduces the volume of concentrated wastewater.

Evaporation and Crystallization:

1. Multi-Effect Distillation (MED) or Mechanical Vapor Recompression (MVR): Recover clean water and produce industrial salts (NaCl/Na₂SO₄).

Cost Challenge: High energy consumption (4–10 kWh/m³).
Optimization: Integrating solar or waste heat recovery systems to reduce energy demand and operational costs.

Filtration Process:

1. Wastewater → HERO/ED → Evaporation/Crystallization → Clean water recovery → Salt production.
