💧Filtration vs. Reverse Osmosis: Key Technologies in Industrial Water Treatment

In modern industrial water treatment systems, filtration and reverse osmosis (RO) are two widely used and crucial technologies. Although both aim to purify water and remove contaminants, they differ significantly in separation mechanisms, filtration precision, and suitable applications. Understanding these differences is essential for businesses to make informed decisions when selecting the right water treatment equipment.

🔍1. Overview of Filtration and Reverse Osmosis

Filtration is a traditional method that removes suspended solids through physical or mechanical means, often used in pre-treatment or processes with lower purity requirements.

Reverse osmosis (RO), on the other hand, applies high pressure to force water molecules through a semi-permeable membrane, effectively removing dissolved salts, heavy metals, bacteria, and various harmful substances. It is a high-precision, deep purification technology ideal for demanding industrial needs.

💠2. What is Reverse Osmosis (RO)?

Reverse osmosis uses pressure to overcome natural osmotic pressure, pushing water through membranes with pore sizes around 0.0001 microns, effectively removing dissolved solids and impurities.

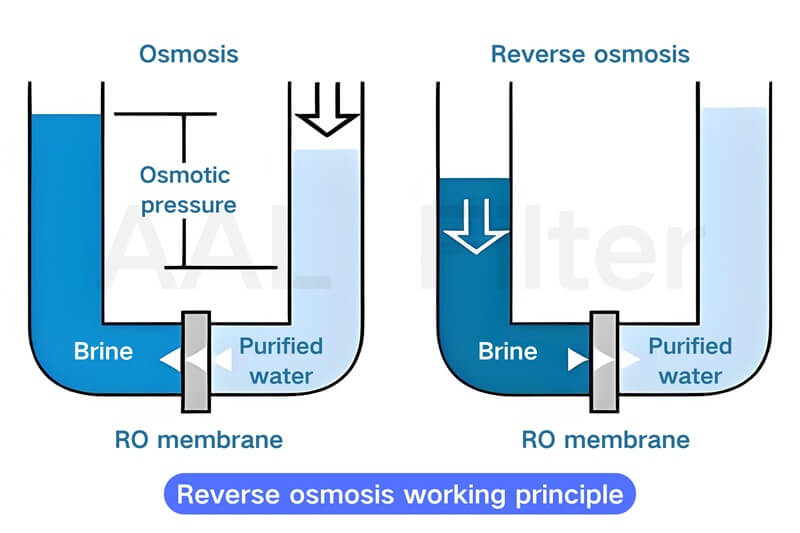

▶️Working Principle

· High-pressure pump applies force to overcome osmotic pressure.

· Water passes through a semi-permeable membrane.

· Contaminants like ions, viruses, and dissolved organics are rejected, yielding high-purity water.

▶️Applications

·Seawater desalination: Converts saline water into fresh water.

·Boiler feed water: Prevents scaling and extends equipment life.

·Wastewater reuse: Ensures compliance with environmental standards.

·Electronics and pharmaceutical: Produces ultra-pure water.

🧱3. What is Filtration?

▶️Definition

Filtration involves using filter media—such as metal mesh, activated carbon, or quartz sand—to physically block particles and impurities suspended in water.

▶️Working Principle

· Water flows through filter media.

· Particles larger than the pore size are trapped.

· Clean water exits the system, achieving basic purification.

▶️Common Types of Filtration

· Surface filtration (e.g., Y strainers, basket strainers)

· Depth filtration (multimedia filters)

· Bag filters: Easy to replace, good for batch processing

· Activated carbon filters: Adsorb organic matter, chlorine, and odors

· Ultrafiltration/Nanofiltration: Intermediate between traditional filtration and RO

▶️Limitations

Filtration is effective for removing suspended solids and some bacteria, but it cannot remove dissolved salts, heavy metals, or micro-contaminants.

⚖️4. Core Differences Between Filtration and Reverse Osmosis

🏗️5. Practical Applications in Industrial Water Treatment

Industrial water needs vary by sector, requiring a tailored approach based on water source, required quality, and operational goals.

▶️Common Industrial Filtration Systems

· Y Strainers: Protect pipelines by removing large particles. Simple design, easy maintenance.

· Basket Strainers: Remove fibers and larger solids at process inlets. Filter basket requires periodic cleaning.

· Self-Cleaning Filters: Ideal for high-contaminant and continuous-flow systems. No downtime for cleaning.

· Bag Filter Systems: Cost-effective solution for high-flow intermittent applications. Easy filter bag replacement.

· Multimedia Filters: Layered media (quartz, anthracite) remove turbidity and suspended matter efficiently.

· Activated Carbon Filters: Adsorb organic contaminants, chlorine, odors. Require periodic replacement.

· Cartridge Filters: Used before RO membranes to protect against fine particles. Available in PP, string wound, pleated types.

· Microfiltration (MF): Pore size 0.1–10 μm. Removes particles and bacteria. Used in food and pharma.

· Ultrafiltration (UF): Pore size 0.01–0.1 μm. Removes viruses, colloids, large organic molecules.

· Nanofiltration (NF): Pore size 0.001–0.01 μm. Removes divalent salts, pesticides, organics.

· Ceramic Membranes: High durability, corrosion-resistant. Used in harsh conditions.

· Plate and Frame Filters: Traditional system for solid-liquid separation.

· Vacuum Filters: Used for sludge dewatering and chemical slurries.

· Filter Presses: High solid content separation using mechanical pressure.

· Sand Filters: Used in pools and cooling systems for basic particle removal.

· Magnetic Filters: Remove iron and metal particles from water using magnetic fields.

· Electrocoagulation Filters: Combine chemical reaction and filtration to remove pollutants.

· Cross-Flow Filtration: Minimizes fouling by directing flow tangentially across membrane surfaces.

💡Tip: Filter systems are usually applied as pretreatment for RO to reduce membrane fouling and extend service life.

🌐6. Reverse Osmosis Applications in Various Industries

Reverse osmosis technology is essential where ultra-pure, low-TDS water is required. Below are typical applications and treatment flows:

▶️Municipal Water Purification

· Purpose: Remove chlorine, metals, dissolved solids from tap sources.

· Flow: Sand Filter → Activated Carbon → Cartridge Filter → RO → Disinfection

▶️Seawater Desalination

· Purpose: Supply potable water to islands and coastal regions.

· Flow: Multimedia Filter → Ultrafiltration → High-Pressure RO → Stabilization → Remineralization

▶️Brackish Water Treatment

· Purpose: Lower TDS for agriculture or industrial reuse.

· Flow: Sedimentation → Sand Filter → Activated Carbon → Cartridge Filter → RO → pH Adjustment

▶️Power Plant Boiler Feed

· Purpose: Prevent scale and corrosion.

· Flow: Softener → Dechlorination → Cartridge Filter → Double-Stage RO → Mixed Bed Polisher

▶️Petrochemical Wastewater Reuse

· Purpose: Reclaim wastewater and reduce discharge.

· Flow: Coagulation → Sand Filter → Activated Carbon → Ultrafiltration → RO → EDI (optional)

▶️Electronics & Semiconductor

· Purpose: Produce 18 MΩ·cm ultrapure water.

· Flow: Multimedia + Carbon Filter → Double RO → EDI → Polishing → 0.1 µm Final Filter

▶️Food & Beverage

· Purpose: Provide clean, taste-neutral water for production.

· Flow: Coarse Filter → Activated Carbon → Cartridge Filter → RO → UV/Ozone Sterilization

▶️Pharmaceutical Grade Water

· Purpose: Comply with GMP standards, remove pyrogens and ions.

· Flow: Sand Filter → Activated Carbon → Precision Filter → Double RO → Heat Exchanger → EDI → UV/Loop Sanitization

▶️Textile & Dyeing Reuse

· Purpose: Recycle rinse and dye waters.

· Flow: Screening → Coagulation → Multimedia → UF → RO → Storage Tank

▶️Metallurgy & Steel Water Recycling

· Purpose: Reduce hardness and salinity in cooling water.

· Flow: Settling → Sand Filter → Chemical Treatment → Cartridge Filter → RO → Post-treatment

▶️Aquaculture (RAS)

· Purpose: Maintain low ammonia and nitrite, stabilize water quality.

· Flow: Solid Separation → Biofilter → Carbon Adsorption → UF → RO → Conditioning Tank

▶️Bottled/Packaged Water Production

· Purpose: Provide high-quality, safe drinking water.

· Flow: Coarse Filtration → Carbon → Cartridge → RO → UV → Final Sterile Filtration

💡Tips: Consult water treatment experts to customize RO systems based on your industry, water source, and compliance standards.

🧭7. Conclusion: How to Choose the Right Water Treatment System?

Filtration and reverse osmosis are not competing but complementary technologies. In most industrial systems, filtration is used as pretreatment to enhance the performance of downstream RO systems.

· If your goal is to remove large particles, a filtration system may suffice.

· If you need high-purity process water, a reverse osmosis system is essential.

❓8. FAQ – Frequently Asked Questions

Q1: Can RO systems completely replace filtration?
🅰️ No. Pre-filtration is required before RO to protect the membranes from fouling and clogging.

Q2: What is the lifespan of an RO membrane?
🅰️ Typically 2–5 years, depending on feedwater quality and pre-treatment effectiveness.

Q3: Do all industries need reverse osmosis?
🅰️ No. Only sectors with strict water quality demands—like pharmaceutical, electronics, or food processing—require RO systems.

🧑‍🔧9. Final Recommendation

When designing an industrial water treatment system, consider:

· Raw water source and quality

· Target water purity

· Operating costs and maintenance

· Regulatory compliance

💡tips:Consulting a professional water treatment engineer during the project planning phase ensures optimal performance and cost-effectiveness.
