Security Filters vs. Cartridge Filters: Key Differences and Connections

In industries like water treatment, pharmaceuticals, food processing, and electronics, security filters and cartridge filters play critical roles in ensuring clean, safe liquids. However, many people confuse these terms or misunderstand their functions. This guide explores the differences and connections between security filters and cartridge filters, helping you choose the right solution for your filtration needs.

🔍What is a Security Filter?

A security filter, also known as a precision or terminal filter, is designed to protect downstream equipment or processes by removing fine particles and impurities from liquids. Typically installed as the final stage in a filtration system, it ensures high-purity liquid output, safeguarding sensitive equipment like reverse osmosis (RO) membranes or pharmaceutical-grade systems.

✅Key Features of Security Filters

· Filtration Precision: Typically 1–10 microns, capturing fine particles to protect downstream processes.

· Structure: Consists of a replaceable cartridge (e.g., PP melt-blown, string-wound, or pleated) housed in a stainless steel or plastic vessel.

· Applications: Widely used in RO pre-treatment, pharmaceutical process water, potable water systems, and ultra-pure water for electronics.

· Role: Acts as the "last line of defense," ensuring liquid quality meets stringent process requirements.

🧩Typical Components

· Housing: Stainless steel or corrosion-resistant plastic, designed for high-pressure applications.

· Cartridge: Replaceable filter media, often PP melt-blown or pleated.

· Inlet/Outlet: Connects to piping systems, typically DN25–DN100.

💡What is a Cartridge Filter?

A cartridge filter is a broad category of filtration equipment that uses replaceable cartridges to remove contaminants from liquids. It encompasses various filter types, including security filters, and can be used in multiple stages of a filtration process, from pre-filtration to final polishing.

✅Key Features of Cartridge Filters

· Filter Media: Uses replaceable cartridges like melt-blown, pleated, string-wound, ceramic, or sintered metal.

· Filtration Range: Wide precision range (0.1–100 microns), depending on cartridge type and application.

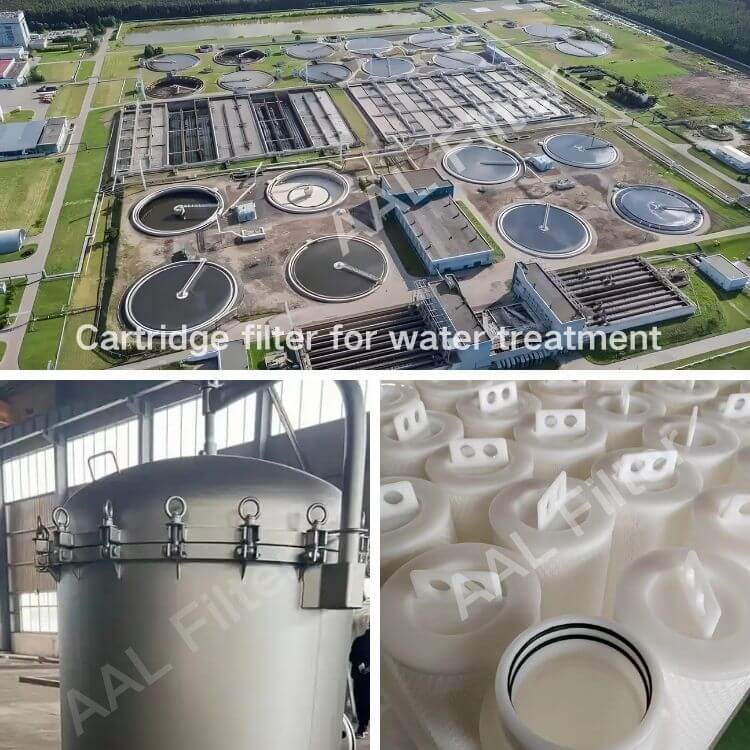

· Applications: Found in water treatment, chemical processing, food and beverage, oil and gas, and more, for pre-filtration, intermediate, or final filtration.

· Versatility: Highly customizable with various cartridge materials and configurations to suit diverse liquids and flow rates.

🧩Typical Components

· Housing: Single or multi-cartridge designs, made of stainless steel, PP plastic, or fiberglass.

· Cartridge: Selected based on liquid properties (e.g., PTFE for corrosive fluids, PP for neutral liquids).

· Configuration: Can be single-stage or multi-stage, tailored to process needs.

🔄Key Differences Between Security Filters and Cartridge Filters

While both rely on cartridge-based filtration, security filters and cartridge filters differ in purpose, precision, and application. Here's a detailed comparison:

1. Purpose and System Role

🔹Security Filter: Designed for terminal filtration, protecting sensitive downstream equipment (e.g., RO membranes, injection water systems) from fine particles.

🔹Cartridge Filter: A broader category, used in any filtration stage—pre-filtration, intermediate, or final—depending on the cartridge and system design.

2. Filtration Precision

🔹Security Filter: High precision (1–10 microns), ideal for capturing fine contaminants in critical applications.

🔹Cartridge Filter: Wide precision range (0.1–100 microns), suitable for both coarse (e.g., sediment removal) and fine filtration.

3. Applications

🔹Security Filter: Common in high-purity settings like RO pre-treatment, pharmaceutical water, and electronics manufacturing.

🔹Cartridge Filter: Versatile across industries, including cooling water, chemical processing, paint filtration, and oil treatment.

4. Design and Maintenance

🔹Security Filter: Emphasizes durability and reliability, often using stainless steel housings. Cartridges require frequent replacement due to fine particle capture.

🔹Cartridge Filter: Offers flexible designs (single or multi-cartridge) and cartridge types (e.g., PTFE, nylon) to handle diverse liquids and flow rates.

🧃Comparison with Bag Filters

To give you a complete picture, let's also look at bag filters, which differ from both:

🔹Bag Filters: Use filter bags for high-flow, low-precision filtration (50–800 microns), ideal for pre-filtration of large particles.

🔹Vs. Cartridge Filters: Bag filters handle higher flow rates with lower maintenance costs but offer coarser filtration.

🔹Vs. Security Filters: Bag filters are typically used before security filters in multi-stage systems to remove larger particles.

🔗Connections Between Security Filters and Cartridge Filters

Security filters are essentially a subset of cartridge filters, sharing several similarities:

· Shared Structure: Both use replaceable cartridges in durable housings (stainless steel or plastic).

· Cartridge Compatibility: Cartridges used in security filters (e.g., PP melt-blown, pleated) can often be used in other cartridge filter systems.

· Application Overlap: In high-purity industries, both may serve as terminal filters, differing only in precision or system role.

· Complementary Roles: In multi-stage systems, cartridge filters handle pre- or intermediate filtration, while security filters provide final polishing.

🎯How to Choose the Right Filter

Selecting between a security filter and a cartridge filter depends on your application. Consider these factors:

· Filtration Precision: Choose security filters for high-precision needs (1–10 microns) to protect RO systems or sensitive equipment. Opt for cartridge filters for broader needs, from coarse to ultra-fine filtration.

· Liquid Properties: For corrosive or high-temperature liquids, select cartridge materials like PTFE or stainless steel. Security filters typically use PP cartridges for neutral liquids.

· Flow Rate and Maintenance: High-flow applications may require multi-cartridge or bag filters, while security filters suit moderate-flow, high-precision tasks.

· System Role: Use security filters for terminal protection and cartridge filters for flexible, multi-stage filtration.

🛠️Maintenance and Replacement Tips

🔧For Security Filters

· Monitor Pressure Drop: Replace cartridges when the pressure differential exceeds 0.1–0.2 MPa to maintain flow efficiency.

· Ensure Proper Sealing: Check cartridge-housing seals to prevent bypass leakage.

· Use High-Quality Cartridges: Opt for reliable options like AALfilter’s PP melt-blown or pleated cartridges for extended lifespan.

🔧For Cartridge Filters

· Select Cartridge Type: Use melt-blown cartridges for high-particle loads and pleated cartridges for precision filtration.

· Clean Housings Regularly: Prevent bacterial growth or corrosion, especially in water treatment.

· Balance Multi-Cartridge Systems: Ensure even pressure distribution across cartridges to optimize performance.

🌟Why Choose AALfilter for Your Filtration Needs?

At AALfilter, we provide high-performance liquid filtration solutions tailored to your needs. Our products include:

· Filter Cartridges: Melt-blown, pleated, string-wound, and more.

· Membrane Systems: RO, UF, and NF membranes for precision filtration.

· Custom Solutions: Designed for water treatment, industrial processes, and sustainability goals.

With over a decade of manufacturing expertise, we ensure efficiency, reliability, and eco-friendly performance.

📩Contact us for product catalogs or expert guidance!

❓Frequently Asked Questions (FAQ)

1. What is the main difference between a security filter and a cartridge filter?

🅰️Security filters are specialized cartridge filters used for terminal filtration (1–10 microns) to protect downstream equipment. Cartridge filters are a broader category, used in various stages with a wider precision range (0.1–100 microns).

2. Can security filter cartridges be used in other cartridge filters?

🅰️Yes, cartridges like PP melt-blown or pleated are often compatible across both systems, provided they meet the required precision and material specifications.

3. When should I use a security filter?

🅰️Use security filters in high-purity applications, such as RO pre-treatment, pharmaceutical water, or electronics manufacturing, to ensure fine particle removal.

4. How often should I replace filter cartridges?

🅰️Replace cartridges when the pressure drop exceeds 0.1–0.2 MPa or as recommended by the manufacturer, typically every 3–6 months, depending on liquid contamination levels.

5. Are cartridge filters better than bag filters?

🅰️Cartridge filters offer higher precision and versatility, ideal for fine filtration. Bag filters are better for high-flow, coarse filtration (50–800 microns) with lower maintenance costs.

6. How do I choose the right cartridge material?

🅰️Select materials based on liquid properties: PP for neutral liquids, PTFE for corrosive fluids, and stainless steel for high-temperature or high-pressure applications.
