What Are Commercial HVAC Systems and How They Work in Large Buildings

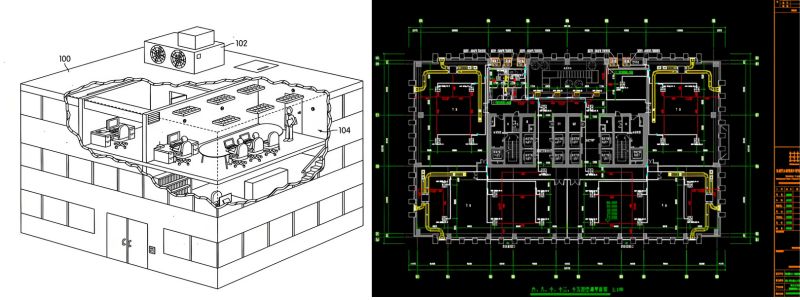

✅ What is Commercial HVAC?
Commercial HVAC (Heating, Ventilation, and Air Conditioning) refers to the systems used in commercial buildings to control the temperature, humidity, and air quality. These systems ensure a comfortable and safe environment for employees, customers, and visitors. Unlike residential HVAC systems, commercial units are more complex and are designed to handle larger spaces and heavier usage loads.
❄️ How Does a Commercial HVAC Systems Work?
Commercial HVAC systems function by regulating indoor climate through heating, cooling, ventilation, and control systems. Here's a breakdown of how each component contributes:
🌡️ Warm or Cool Air
Heating is typically provided by furnaces or boilers using gas, electricity, or oil. Cooling is delivered through chillers or air conditioners. These systems heat or cool the air to maintain desired indoor temperatures.
🌬️ Distribution
The conditioned air is distributed through an intricate duct system. Fans and blowers push the air through ducts to various zones within the building, ensuring even temperature distribution.
🎛️ Controls
Modern commercial HVAC systems use programmable thermostats and building automation systems (BAS) for precise control. Sensors monitor temperature, humidity, CO₂ levels, and occupancy to optimize performance.

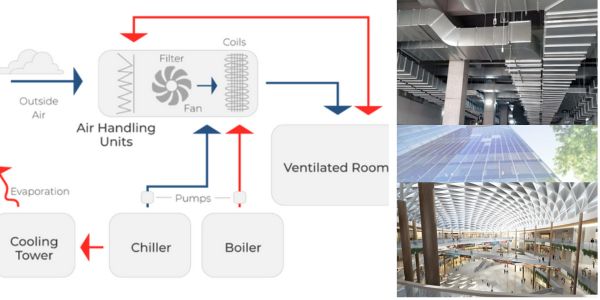

🏢 What Are Commercial Building HVAC Systems?
HVAC systems are essential in modern commercial buildings, ensuring that indoor environments remain comfortable, safe, and energy-efficient. These systems regulate temperature, humidity, and air quality—whether it's a small office or a large manufacturing plant.
🧠 Thermostats and Building Management System (BMS)
HVAC systems operate based on inputs from thermostats and predefined control strategies managed by a Building Management System (BMS)—a centralized, intelligent platform.
✳️ Benefits of BMS:
Provides a safe and comfortable environment
Enables energy-saving and precise control
Reduces maintenance costs and extends system lifespan
📶 BMS Architecture:
Field Level – Sensors, actuators, meters
Automation Level – Direct Digital Controllers (DDCs)
Supervision Level – Central graphical interface
📦 Air Handling Units (AHUs)
AHUs condition and circulate air by drawing in outdoor air, mixing it with return air, filtering it, and pushing it through the duct system. They're critical for indoor air quality.
🧽 Filters
HVAC filters capture dust, pollen, and airborne particles, preventing system contamination and protecting occupant health. more about, How to Select the Best Air Filter (Merv1-Merv16)?
🔄 Return and Supply Air
Return Air: Extracted air from the building to be reconditioned.
Supply Air: Fresh, treated air delivered to the zones.
📦 Variable Air Volume (VAV)
VAV boxes control the amount of air delivered to each zone using dampers, allowing efficient and responsive zone control.
🌀 Fan Coil Units (FCUs)
FCUs are compact and ideal for smaller spaces. They recondition indoor air using heating/cooling coils but do not bring in outdoor air.
💧 Refrigerant
Refrigerants absorb and release heat during phase changes, transferring thermal energy in cooling/heating cycles.
🧊 Chillers
Chillers produce chilled water that circulates through air handlers or FCUs for large-scale cooling applications.
🔁 Pumps
Pumps circulate hot or chilled water through the HVAC system, maintaining consistent flow and temperature regulation.
🔄 Coils
Coils act as heat exchangers, regulating temperature by transferring heat between air and water.
🏗️ Types of Commercial Building HVAC Systems
Choosing the right HVAC system is crucial for comfort, energy efficiency, and cost control. Below are common types:
1. Single Split System
One outdoor compressor and one indoor unit.
Best for: Small spaces (offices, shops, server rooms)
Advantages: Cost-effective, simple installation, independent control
Limitations: Not scalable—requires a unit per zone
2. Multi-Split System
Multiple indoor units connect to a single outdoor unit.
Best for: Clinics, restaurants, small office buildings
Advantages: Saves outdoor space, flexible zoning
Limitations: Complex installation, sensitive to design/load balancing
3. Variable Air Volume (VAV) System
Maintains constant air temperature but varies airflow.
Best for: Schools, offices, government buildings
Advantages: Energy efficient, good zoning capability
Limitations: Not suitable for single-zone or open spaces
4. Variable Refrigerant Flow (VRF) System
Modulates refrigerant flow per zone; some models provide simultaneous heating/cooling.
Best for: Hotels, high-end offices, mixed-use facilities
Advantages: High efficiency, multi-zone, quiet, compact
Limitations: High upfront cost, complex design/maintenance
5. Constant Air Volume (CAV) System
Delivers a fixed air volume with variable temperature.
Best for: Warehouses, exhibition halls, retail
Advantages: Simple, reliable, uniform comfort
Limitations: Inefficient for multi-zone environments
6. Rooftop Unit (RTU)
Packaged HVAC systems mounted on rooftops that handle air treatment for the entire building.
Best for: Single-story commercial buildings, retail stores, malls
Advantages: Easy maintenance, space-saving, all-in-one solution
Limitations: May require crane access; limited flexibility in multi-story setups
7. VAV System with Reheat
A variation of VAV that adds heat at the zone level for precise temperature control.
Best for: Office buildings with variable heat loads and occupancy
Advantages: Precise control, energy efficiency, comfort in cold weather
Limitations: Higher initial cost and control complexity
🔍 How Commercial HVAC Differs From Residential HVAC
Feature | Commercial HVAC | Residential HVAC |
---|---|---|
Size | Much larger and more powerful | Smaller, designed for home use |
Location | Rooftops or mechanical rooms | Side or backyard of a house |
Economizers | Often included for energy efficiency | Rarely used |
Zoning | Multiple zones with independent control | Usually one or two zones |
Ventilation | Advanced air exchange & filtration | Basic ventilation |
Drainage | Larger condensate handling | Minimal drainage needs |
Cost | High installation and maintenance costs | Lower overall cost |
Maintenance | Frequent and specialized servicing required | Periodic basic servicing |
⚠️ Common Commercial HVAC Problems
Understanding early signs of trouble prevents costly downtime:
Short Cycling – Frequent on/off cycles due to system imbalance or faulty thermostat
Leaking Refrigerant – Causes loss in efficiency and potential compressor damage
Dirty Filters – Reduced airflow, higher energy use
Dirty Coils – Less effective heat exchange
Noises – Mechanical wear or airflow blockages
Faulty Economizer – Wastes energy by missing free cooling
Clogged Drain Lines – Leads to water damage and poor humidity control
Loose Evaporator Belt – Reduces fan performance or causes failures
🔧 Commercial Building HVAC Maintenance
Routine maintenance is essential for performance, efficiency, and system longevity.
🛠️ Typical HVAC Maintenance Checklist:
① Inspect and listen for unusual noises or smells
② Replace HVAC air filters regularly (monthly or quarterly)
③ Check thermostat settings and calibration
④ Clean dust and debris from registers and intakes
⑤ Inspect electrical wiring and tighten connections
⑥ Clean and disinfect condensate drain pans and lines
⑦ Examine piping for leaks or corrosion
⑧ Check seals on doors, dampers, and access panels
⑨ Inspect ductwork for leaks and damaged insulation
✅ Regular preventative maintenance reduces energy costs, extends equipment life, and ensures consistent indoor comfort.
