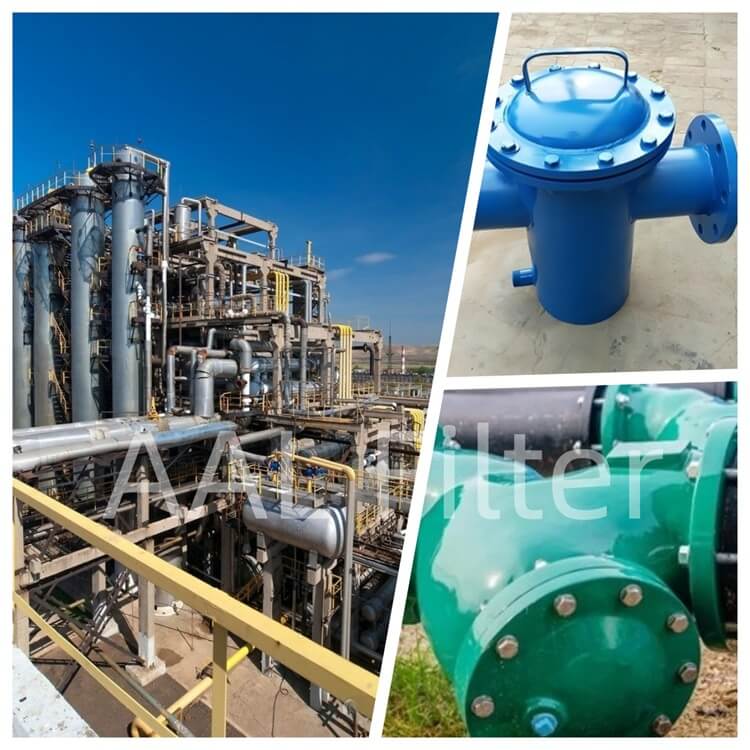

In modern industrial processes, pipeline strainers play a vital role in safeguarding critical equipment by capturing solid contaminants in flowing fluids. Their primary function is to protect pumps, valves, steam traps, and other sensitive components from damage and performance degradation. Among the most commonly used designs are the basket strainer and the Y-strainer.
This guide dives deep into the structural, functional, and maintenance differences between these two types of strainers, helping you make a well-informed selection based on your system’s unique needs.
At the heart of every strainer lies its essential job: to intercept and remove solid particles from fluid media. These particles may originate from pipe installation debris, internal equipment wear, or external environmental contamination. Strainers are typically installed upstream of pumps and other vital machinery to:
· reduce erosion
· extend equipment lifespan
· enhance system stability
· Ensure process purity and operational safety
· Early-stage protection for new pipeline systems
· High-precision filtration in industrial production lines
· Safety assurance in the transmission of steam, liquid, or gas
· Pre-filtration stage before fine filtration equipment
💡 Note: Strainers differ from filters. While both remove contaminants, filters focus on smaller micron-level particles and often require finer media, while strainers are better suited for coarse filtration with lower maintenance frequency.

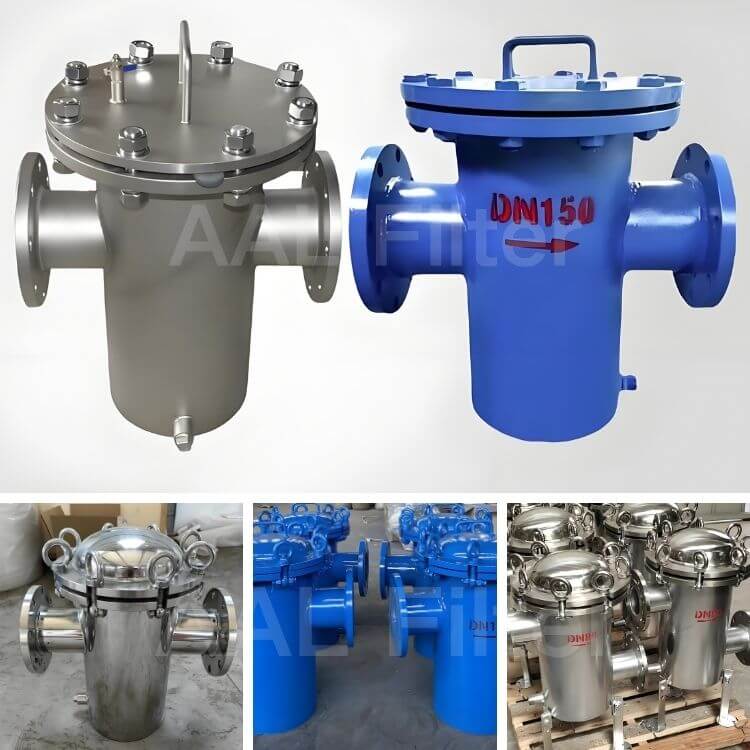

The basket strainer features a cylindrical or spherical housing that contains a removable metal mesh basket. It provides a large filtration area and excellent contaminant holding capacity.
· Simplex Basket Strainer: Straightforward design but requires system shutdown during cleaning
· Duplex Basket Strainer: Equipped with two filtration chambers for continuous operation during maintenance
Advantages:
· High filtration precision—ideal for removing fine particulates
· Large debris holding capacity reduces cleaning frequency
· Duplex models enable zero-downtime operation
· Customizable with different materials and mesh sizes for specialized media
Disadvantages:
· Limited to horizontal installation
· Simplex models require full shutdown for maintenance
· Higher initial investment and potential larger footprint
✅ Best Used For:
· High-flow pipelines with moderate to large particulate load
· Systems requiring high purity and long maintenance intervals
🔄3. Y-Strainers in Detail

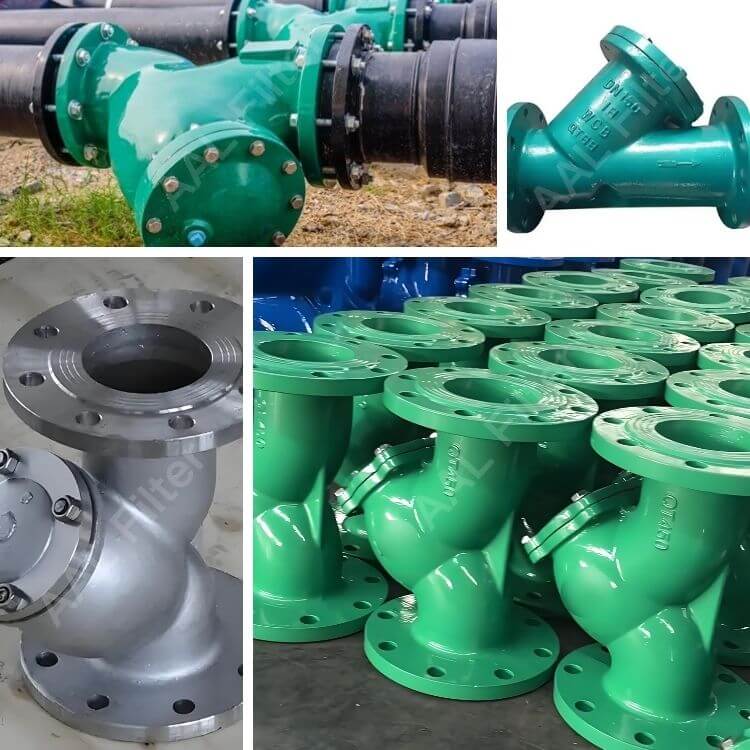

The Y-strainer has a Y-shaped body with an internal tapered or cylindrical screen. Its compact and angled design is ideal for tight or vertical space installations.
· Compatible with horizontal and vertical installations
· Can handle high-pressure systems (up to 6000 psi)
· Often equipped with a blow-off valve for fast flushing
· Suitable for continuous or cyclic flow systems
Advantages:
· Small footprint—excellent for space-limited pipelines
· Quick flushing via drain valve—reduces manual cleaning downtime
· Durable and pressure-resistant
Disadvantages:
· Lower filtration accuracy—suited for coarse solids
· Smaller debris capacity—more frequent cleaning
· Some installations still require disassembly for deep cleaning
✅ Best Used For:
· High-pressure systems or vertical pipelines
· Oil & gas, chemical plants, steam systems, and mining
Feature | Basket Strainer | Y-Strainer |
Body Structure | Cylindrical/spherical with mesh basket | Y-shaped with tapered or cylindrical screen |
Installation | Horizontal only | Horizontal or vertical |
Cleaning Method | Basket removal or duplex switching | Drain valve or screen removal |
Filtration Accuracy | High (fine particles) | Medium to low (coarse particles) |
Pressure Resistance | Moderate | High (up to 6000 psi) |
Debris Holding | Large | Small to medium |
Maintenance | Infrequent (simplex may need shutdown) | More frequent but faster (with blow-off valve) |
Best For | High-flow, large-diameter pipelines | High-pressure, space-constrained installations |
· Oil and gas pipelines – protects against large-scale contaminants
· Chemical processing lines – withstands corrosive and high-pressure fluids
· Mining and metal smelting – filters ore residues in slurry lines
· HVAC and steam systems – compact installations and thermal resilience
· Power generation – turbine protection and cooling water filtration
· Food and beverage industry – ensures hygienic and consistent quality
· Agricultural irrigation – filters sand and organic debris from water
· Automotive fluid processing – protects sensitive systems from solid contaminants
Tip: Always ensure compatibility with your media (e.g., corrosive liquids, steam, oils) by choosing suitable basket/screen materials like stainless steel, Monel, or Hastelloy.
When selecting a strainer, consider:
🔹Fluid type – Liquid, gas, or steam
🔹Containant size & concentration – Fine vs. coarse filtration
🔹Operating pressure and temperature
🔹Space availability – Especially for vertical/horizontal constraints
🔹Maintenance access and frequency
🔹Need for continuous operation – Duplex or quick-flush options
🔹System flow rate – Ensure strainer size doesn't cause excessive pressure drop
🧪Mesh Selection Guide:
For fine filtration (below 100 microns), basket strainers are preferable. Y-strainers typically range from 100–5000 microns.
🧠7. Conclusion and Recommendations
🔹Choose a basket strainer when your system:
· Requires high filtration accuracy
· Can accommodate horizontal installation
· Needs large particle capacity or continuous operation (duplex)
🔹Choose a Y-strainer when:
· You have space constraints or vertical pipelines
· Operating in high-pressure environments
· Coarse filtration is sufficient
Regardless of choice, regular inspection and cleaning are crucial to prevent pressure loss and system failure.
💡8. Expert Advice Before Purchase
✅ Consult with a professional strainer supplier
🔍 Review mesh size, material compatibility, and pressure drop expectations
🔄 Compare long-term maintenance costs versus upfront investment
📏 Customize configurations based on your system’s layout and future scalability
Q1: What is an industrial strainer used for?
🅰️To remove solid particles from a fluid system, preventing damage to pumps, valves, and sensitive equipment.
Q2: What's the difference between a basket strainer and a Y-strainer?
🅰️Basket strainers offer higher precision and capacity; Y-strainers are more compact and pressure-resistant.
Q3: Can I use a Y-strainer in vertical piping?
🅰️Yes, Y-strainers are suitable for both vertical and horizontal installations.
Q4: Do I always need to shut down the system to clean a strainer?
🅰️Not always. Duplex basket strainers allow maintenance without shutdown; Y-strainers with drain valves enable on-the-fly cleaning.
Q5: How do I choose the correct mesh size?
🅰️Base it on the smallest particle size that must be removed. Balance between filtration precision and pressure loss.
