💧Complete Guide to Water for Injection (WFI): Pharmaceutical-Grade Purity & Production Processes

In advanced pharmaceutical processes such as biopharmaceuticals, vaccine manufacturing, and intravenous (IV) drug production, Water for Injection (WFI) plays a vital role. As the purest category of pharmaceutical water, WFI must be pyrogen-free, sterile, and meet the strictest global pharmacopoeial standards to ensure patient safety and product integrity.

This guide provides a comprehensive overview of what WFI is, its types, production methods, how it differs from purified water, and how to choose the right pharmaceutical-grade water solution.

1. What Is Water for Injection (WFI)?

Water for Injection (WFI) is a high-purity water specifically intended for the preparation of parenteral (injectable) medicines and other sterile applications. Its defining characteristics include:

· Pyrogen-free (free of endotoxins)

· Sterile or capable of being sterilized

· Meets USP, EP, and Chinese Pharmacopoeia standards

Main Applications of WFI:

· Solvent or diluent for injectable drugs

· Preparation of vaccines or blood products

· Final rinse for Active Pharmaceutical Ingredients (APIs) and sterile equipment

· Formulation of cell culture media in bioreactors

Due to its direct impact on human health, WFI must be produced and managed in accordance with Good Manufacturing Practice (GMP) standards.

2. Types of Water for Injection

According to the United States Pharmacopeia (USP), WFI is classified into three main types:

1️⃣ USP Water for Injection (WFI)

· Used for non-sterile manufacturing steps where final sterilization will follow

· Stored at 80°C–90°C to prevent microbial growth

· Must be used within 24 hours or maintained by hot loop circulation

2️⃣ USP Bacteriostatic Water for Injection

· Contains preservatives such as 0.9% benzyl alcohol

· Suitable for multi-dose vials, with a maximum shelf life of 28 days

· Not recommended for neonates due to toxicity concerns

· Commonly used for clinical dilution of drugs·

3️⃣ USP Sterile Water for Injection

· Sterile, pyrogen-free , and ready for direct injection

· Packaged in single-dose containers, not reusable

·  Used in clinical settings for patient injections

3. WFI vs. Purified Water: What’s the Difference?

While both Purified Water (PW) and Water for Injection (WFI) are pharmaceutical-grade waters, they differ in purity levels, applications, and production requirements.

⚠️ Note: Purified water must not be used in parenteral products.

4. WFI Production Methods

WFI must be produced under tightly controlled conditions. Below are the most common production methods:

🧪 Method 1: Multiple Effect Distillation (ME)

✅ Principle:

Uses staged pressure reduction and repeated condensation to efficiently purify water through multiple evaporation-condensation cycles.

🔧 Equipment:

· Multi-column stills

· Clean steam generator

· Cooling water system

· Control system (temperature, pressure, flow)

🔄 Process Steps:

    1️⃣ Pre-treatment: Use purified water as feed.

    2️⃣ First effect evaporation: Heated by clean steam.

    3️⃣ Multi-effect stages: Each subsequent stage uses previous steam to evaporate more water.

    4️⃣ Condensation & collection: Final condensate is collected as WFI.

    5️⃣ Storage: Maintained at 80°C–90°C with hot loop circulation.

✅ Advantages:

· High reliability (no moving parts)

· Excellent energy efficiency

· Globally accepted and GMP compliant

✅ Principle:

Water vapor is compressed to raise its temperature and pressure, then reused for heating feedwater, saving energy.

🔧 Equipment:

· Mechanical or thermal compressor

· Evaporator chamber

· Condenser

· Automation control system

🔄 Process Steps:

1️⃣Pre-treated water is heated

2️⃣Water vapor is compressed

3️⃣Compressed vapor heats incoming water and condenses into WFI

4️⃣Final WFI is collected and stored with temperature maintenance

✅ Advantages:

· High energy efficiency, lower operating cost

· Continuous operation possible

· Less sensitive to feedwater quality

❗ Considerations:

· Complex machinery

· Moving parts (compressor) require regular maintenance

💧 Method 3: Cold WFI by Reverse Osmosis + Ultrafiltration (RO + UF)

(Compliant with European Pharmacopoeia revisions)

✅ Principle:

Membrane filtration removes ions, organics, endotoxins, and microbes to produce sterile, pyrogen-free water.

🔧Equipment:

· Pre-treatment (softener, carbon filter)

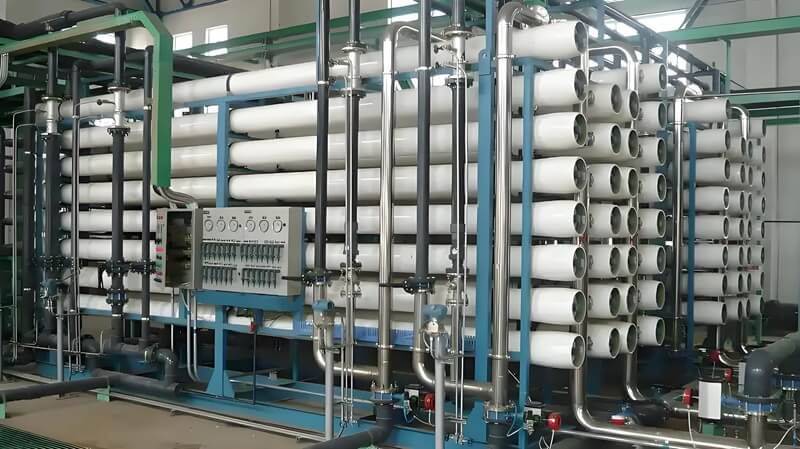

· Reverse osmosis (RO) membranes

· Ultrafiltration (UF) modules (0.01–0.1μm)

· UV sterilizers or ozone disinfection

· Cold loop storage system

🔄 Process Steps:

1️⃣Pre-treatment:Removes particles, hardness, chlorine

2️⃣RO stage:Removes salts, microbes, and organics

3️⃣UF polishing:Retains viruses, endotoxins, fine particles

4️⃣UV or ozone treatment:Optional microbial control

5️⃣Cold storage:Maintained at 5–15°C with regular disinfection

✅ Advantages:

· Energy-efficient (no steam)

· Compact and fully automated

· Ideal when source water quality is good

❗ Considerations:

· High feedwater quality required

· Regular disinfection needed (hot water, chemicals, or ozone)

· Continuous monitoring for TOC, endotoxins, microbial count is essential

💦 Typical Pre-treatment Equipment:

To ensure consistent performance, pre-treatment usually includes:

· Ion exchangers (softeners)

· UV sterilizers

· Microfilters (MF)

· Activated carbon filters

✅ Comparison Table

5. Why WFI Purity Is Critical

In pharmaceutical applications, WFI quality directly impacts both product safety and patient health:

· Microbial contamination may compromise sterility and drug efficacy

· Endotoxins , from Gram-negative bacteria, can trigger pyrogenic reactions

· Regulatory limits per USP:

     §TOC ≤ 500 ppb

     §Conductivity ≤ 1.3 µS/cm at 25°C

     §Microbial count ≤ 10 CFU/100 mL

     §Endotoxins ≤ 0.25 EU/mL

6. Conclusion: Choose the Right WFI System

In GMP-regulated pharmaceutical environments, the quality of Water for Injection reflects both manufacturing standards and compliance capabilities. Given stringent purity requirements, selecting the right water treatment solution is crucial.

If you're exploring WFI system design, equipment selection, or validation, AALFilter offers customized RO-based WFI solutions that meet global standards while optimizing energy efficiency and cost.

📌 Frequently Asked Questions (FAQ)

Q1: Can purified water replace Water for Injection?

A1: No. Purified water is not sterile or pyrogen-free, and does not meet the standards required for injectable formulations.

Q2: How often should a WFI system be sanitized?

A2: Typically once a week via thermal sanitization or as per your validated protocol and monitoring data.

Q3: Can reverse osmosis systems fully replace distillation for WFI?

A3: Modern RO+UF systems can produce cold WFI that meets European Pharmacopeia standards, but validation is mandatory to prove compliance.

Q4: Why must WFI be stored at 80–90°C?

A4: This temperature range prevents microbial growth and helps maintain a sterile water distribution loop.
