Industrial Water Treatment Systems: Complete Guide to RO Process Flow, CIP Maintenance & Application
Looking for reliable Industrial Water Treatment Systems? This guide provides a complete overview of how Reverse Osmosis (RO) technology transforms raw or wastewater into clean, high-purity water for industries like power, pharmaceuticals, food & beverage, electronics, and chemicals. You’ll learn about the entire RO process flow—from raw water pretreatment to advanced CIP maintenance—and how it ensures consistent water quality for demanding applications.
With years of expertise in filtration solutions, AAL Filter delivers premium RO membranes, precision filters, and custom-engineered systems designed to meet diverse industrial water treatment needs, from large-scale manufacturing to critical pharmaceutical processes.

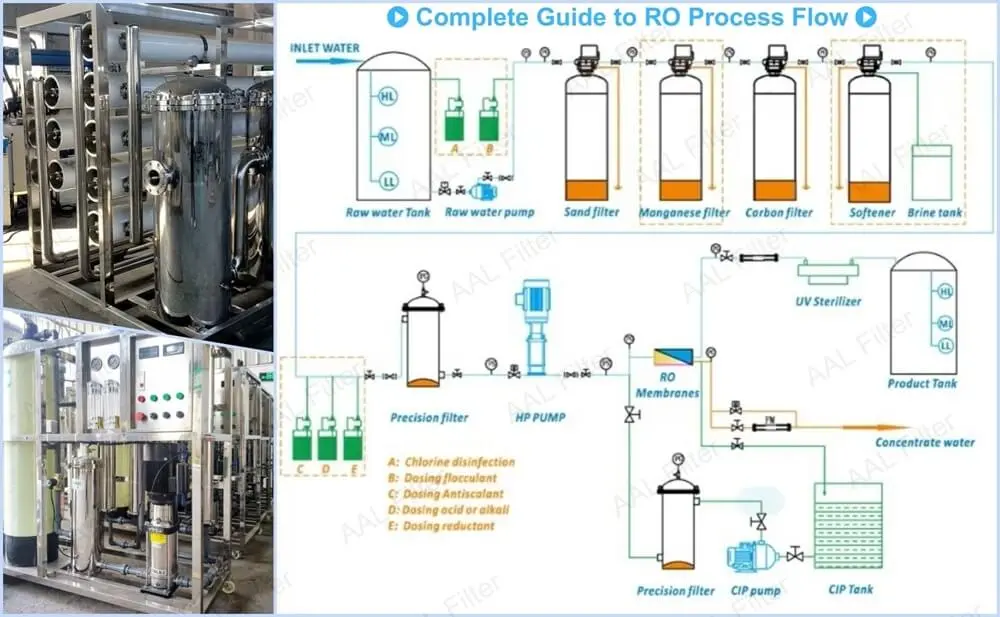

Full Process Flow of a Typical Industrial Water Treatment System (RO-Centric)
1. Raw Water Tank – Storage for incoming water from wells, rivers, or municipal sources
2. Chemical Dosing (Chlorination, Coagulant) – Disinfection and particle aggregation
3. Sand, Manganese, Activated Carbon Filters – Remove turbidity, iron/manganese, chlorine, and organic impurities
4. Water Softener – Prevents scaling by reducing water hardness
5. Chemical Dosing (Antiscalant, pH Adjuster, Reducing Agent) – Controls scaling and protects membrane integrity
6. Cartridge Filter Housing (Security Filter Housing) – Captures fine particles to safeguard RO membranes
7. High-Pressure Pump – Provides necessary pressure to drive RO separation
8. RO Membrane System – Central filtration unit for salt and contaminant removal
9. CIP (Clean-In-Place) Cleaning System – Maintains membrane performance and longevity
10. UV Sterilization – Final microbial control before storage or use
11. Product Water Tank – Stores purified water for distribution or further processing
Why These Steps Matter
● The High-Pressure Pump is vital for generating the osmotic pressure differential required by RO. Without it, the system wouldn’t function.
● The CIP System ensures membrane longevity by systematically removing fouling, scale, and biofilm, improving performance over time.
Detailed Overview: CIP Cleaning System for RO Membranes
Membrane fouling from scale, organic buildup, or microbes can severely reduce system efficiency. A robust CIP system is critical.
✅Key Components:
● CIP Tank – Mixes and stores cleaning chemicals, often with heating & agitation
● CIP Pump – Circulates cleaning solutions at controlled flow/pressure
● Cartridge Filter Housing– Removes dislodged debris during cleaning
● Piping & Valves – Direct cleaning flow across membranes, both directions
● Control Panel (Optional) – Automates cleaning cycles and monitors key parameters
✅Cleaning Procedure:
1. Shutdown and isolate RO system
2. Prepare appropriate cleaning solution (acid, alkali, or specialty cleaner)
3. Low-flow soak for wetting membranes
4. High-flow recirculation for 30–60 minutes
5. Soaking to enhance chemical action
6. Rinse thoroughly with RO or DI water until neutral pH
7. Restart system and monitor performance indicators
✅Common Cleaning Agents:
● Acidic solutions (citric acid or HCl) for carbonate scale (pH ~2–3)
● Alkaline solutions (NaOH + surfactants) for organic/microbiological fouling (pH ~10–12)
● Specialty silica cleaners for silica scaling
Applications of Industrial Water Treatment Systems
● Power Plants: Boiler feed and cooling tower makeup water
● Pharmaceuticals: Purified water (PW), Water for Injection (WFI)
● Food & Beverage: Ingredient water, bottled water production
● Semiconductor & Electronics: Ultrapure process water
● Chemical Industry: Process water, ZLD (Zero Liquid Discharge) systems
Advantages
● High contaminant removal rates (up to ~99%)
● Energy-efficient compared to thermal methods
● Modular and scalable design
● Automated control and monitoring
● Reliable water quality across industries
Key Design & Selection Considerations
● Raw water quality as driver for pre-treatment components
● Desired product quality (TDS, microbial limits, conductivity)
● System capacity and recovery targets
● Energy and OPEX efficiency vs space constraints
● CIP frequency, chemical choices, and maintenance protocols
Why Choose AAL Filter
Industrial water treatment demands precision, reliability, and expert solutions to ensure consistent water quality across diverse applications. From RO process flow design to CIP maintenance and system optimization, choosing the right partner can make all the difference.
AAL Filter provides both off-the-shelf and fully customized filtration solutions tailored to your industry needs. From wastewater treatment plants to biotech cleanrooms, we deliver performance-tested, industry-grade housings that comply with international standards.
We offer:
● Competitive pricing for cost-effective water treatment solutions
● Global shipping to keep your projects on schedule
● Customizable designs for single-bag systems or multi-cartridge, high-flow setups
● Responsive technical support to help you optimize performance and efficiency
With extensive experience in industrial filtration and water treatment technologies, AAL Filter ensures you receive not only premium RO membranes and precision filters but also expert engineering support to meet your operational goals.
Ready to enhance your water treatment efficiency and quality? Contact AAL Filter today for tailored solutions that keep your operations running smoothly.
Expert Editorial Comment
From an expert’s perspective, a well-engineered Industrial Water Treatment System—seamlessly integrating RO technology, pre-treatment, CIP, and post-treatment—is the backbone of reliable, cost-effective water purification. Consistent CIP maintenance is not just routine work; it safeguards membrane performance, minimizes operational interruptions, and maximizes return on investment over time. For industries seeking long-term efficiency and compliance, partnering with specialized solution providers like AAL Filter ensures customized designs, robust filtration components, and expert guidance for optimal system performance.
Frequently Asked Questions
What is an Industrial RO System and how does it work?
An Industrial RO System uses semi-permeable membranes to remove salts, minerals, and impurities from water. High-pressure pumps push water through the membranes, leaving contaminants behind and producing purified water suitable for industrial use.
What industries commonly use RO systems?
Industries such as food & beverage, pharmaceuticals, power plants, electronics manufacturing, and municipal water treatment often rely on RO systems for consistent water quality.
How often should RO membranes and filters be replaced?
Replacement frequency depends on water quality, system size, and operating conditions. Generally, pre-filters and cartridge filters should be checked monthly, while RO membranes may last 2–3 years with proper maintenance. AAL Filter provides high-quality filter housings and replacement cartridges to simplify maintenance.
Can AAL Filter provide custom solutions for RO systems?
Yes. AAL Filter offers both standard and customized filtration systems, including bag filters, cartridge housings, and pre-treatment solutions, tailored to specific water treatment needs.
How can I get technical support for my RO system?
You can contact AAL Filter directly for technical consultation, system design advice, and product recommendations to ensure your RO system runs efficiently and meets regulatory standards.
