Heat Jacketed Stainless Steel ss304 ss316 Bag Filter Housing
- Heat Jacketed design- Prevents crystallization and solidification, ensuring efficient filtration of high-viscosity fluids
- Corrosion-Resistant Materials- Stainless steel (SUS304/316L) for acid/alkali resistance
- Versatile Filter Bag Options- ranges from Precision micron to filtration area and filter media
- Fluid Dynamics Optimization
- Custom Solutions for Diverse Applications

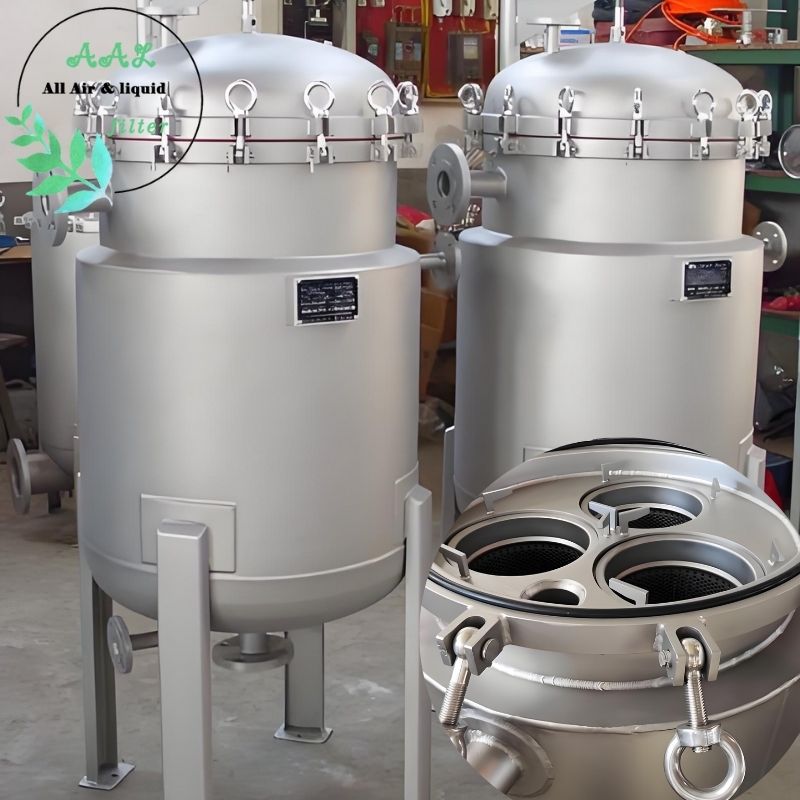

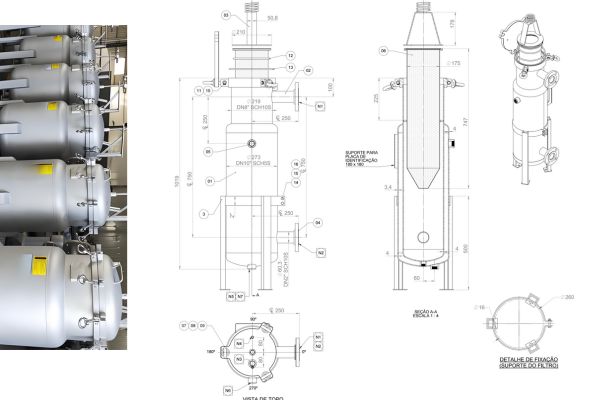

Heat Jacketed Stainless Steel Bag Filter Housing
Product Overview
AALfilter 's Heat Jacketed Stainless Steel Bag Filter Housing is a high-performance filtration solution designed for industries requiring heat preservation during liquid processing. Its innovative double- or triple-layer jacket structure ensures optimal thermal regulation, preventing fluid crystallization, solidification, or viscosity changes. Ideal for handling heat-sensitive or high-viscosity fluids, this filter enhances filtration efficiency and supports seamless integration into temperature-critical production workflows.
Key Features
✅ Heat preservation Jacket Design
l Double/Triple-Layer Jacket: Customizable with steam, hot water, or thermal oil circulation to maintain or elevate fluid temperature.
l Versatile Media: Supports insulation materials or heat transfer fluids for cold/hot cycling.
l Anti-Crystallization: Prevents fluid solidification and improves filtration rates for viscous liquids.
✅ Robust Material Options
l Stainless Steel (SUS304/316L) for corrosion resistance.
l Carbon Steel (Q235) for cost-effective durability.
l Customizable materials for specialized environments.
✅ High-Efficiency Filter Bags
l Multiple Sizes: AAL-1P1S (0.25m²) and AAL-1P2S (0.5m²) bag filter housing for standard or extended filtration needs.
l Diverse Materials: PP, PE, PTFE, nylon mesh , stainless steel sintered mesh, and activated carbon filter bags options.
l Precision Filtration: Accuracies from coarse to sub-micron levels(1-200micron), adaptable to fluid temperatures.
✅ Optimized Fluid Dynamics
l Top-flow design ensures even fluid distribution across the filter bag, minimizing turbulence and maximizing filtration consistency.
✅ Customizable Configuration
l Flexible inlet/outlet orientations to match pipeline layouts.
l Jacket ports tailored for steam, water, or oil inputs.
Specifications:
Parameter | Details |
Material | Housing: SS304/316L; Vent/Drain Valve: SS304; Seals: EPDM/Silicone/Viton, etc. |
Cartridge Size | Length: 10", 20", 30", 40"; OD: 2.5" (pleated) |
Flow Rate (Single Cartridge) | 10": 0.5 m³/h; 20": 1 m³/h; 30": 1.5 m³/h; 40": 2 m³/h |
Connection Types | Inlet/Outlet: Flange/Thread/Quick Valve; Connection Method: Clamp |
Surface Finish | Mirror polishing (Ra ≤0.3µm inner, 0.4µm outer) or sandblasting |
Operational Parameters | Design Pressure: 1.0 MPa; Max. Pressure: 0.8 MPa; Temp. Resistance: 130℃; Sterilization Temp.: 121℃±2℃ |
Cartridge Configuration | Quantity: 1-15 cartridges; End Cap Types: DOE/222/226 O-rings (flat/fin) |
Type | Type 1 | Type 2 | Type 3 | Type 4 | Type 5 |
Bag Size (mm) | 180×450 | 180×810 | 105×230 | 105×380 | 150×560 |
Single Bag Flow Rate (M³/H) | 20 | 40 | 6 | 12 | 20 |
Single Bag Filtration Area (M²) | 0.25 | 0.5 | 0.09 | 0.16 | 0.25 |
Single Bag Filtration Volume | 8L | 17L | 1.3L | 2.5L | 8L |
Bag Quantity | 1-8pcs bags (customizable) | ||||
Inlet/Outlet Connection | Quick Valve, Flange, Thread | ||||
Inlet/Outlet Diameter | 1", 1.5", 2", Customized Size | ||||
Filtration Bag Media | PE, PP, NMO, PTFE |
Tech Support
Our team is available for troubleshooting, technical assistance, and to help you select the right filtration solutions for your applications.
Applications
✅ Chemical Processing: Maintains fluid temperature to prevent crystallization in reactors or transfer lines.
✅ Pharmaceuticals: Ensures viscosity control for syrups, APIs, or heat-sensitive solutions.
✅ Food & Beverage: Processes high-viscosity liquids (e.g., oils, syrups) with consistent thermal management.
✅ Paints & Coatings: Prevents resin solidification during filtration.
✅ Energy & Petrochemicals: Handles thermal oils or waxes requiring stable temperatures.
