Micron Ratings: How to Select the Best Water Filter (1-100μm)

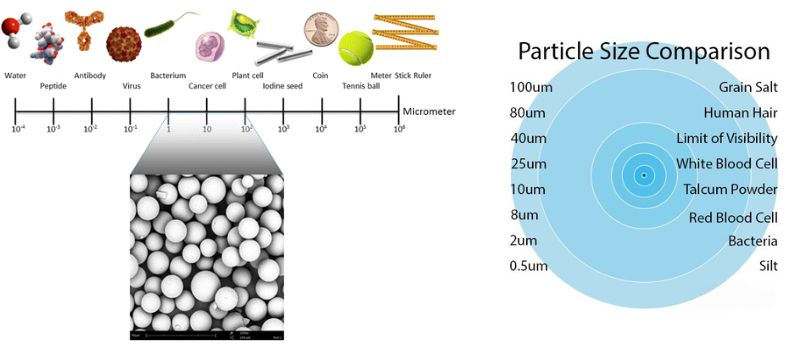

1. What is Micron Rating in Water Filtration?

A micron (μm), short for micrometer, is a unit of length in the metric system, equivalent to one-millionth of a meter (1 μm = 0.000001 m = 10⁻⁶ m). It is commonly used to measure the micron size of filters and the diameter of particles in various filtration processes.

1.1 Micron Ratings Explained: How Do Water Filters Work?

Filtration precision is determined by the smallest particle size a filter can effectively capture (measured in microns).

The lower the micron rating, the smaller the particles the filter can remove.

Filters with larger micron sizes (e.g., 50 μm, 100 μm) capture larger contaminants, while smaller micron sizes (e.g., 1 μm, 0.1 μm) are used for fine filtration, including bacteria and virus removal.

1.2 Micron Rating Chart: What Size Filter Do You Need?

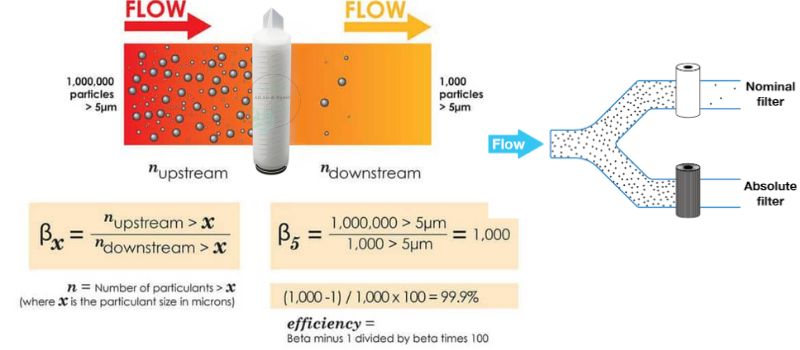

 2.Absolute vs. Nominal Micron Rating – Which One to Choose?

When selecting a filter, understanding the difference between absolute and nominal micron ratings is crucial for ensuring the desired level of filtration efficiency.

Both terms define how effectively a filter removes particles of a specific size, but their performance varies based on efficiency, application, and testing conditions.

How Absolute & Nominal Micron Ratings Affect Filtration Efficiency?

2.1 Absolute Micron Rating

The absolute micron rating defines a filter's ability to capture 99% or more of particles at a specified size in a single pass.

This means that if a filter is rated at 1 micron absolute, it can reliably remove at least 99% of all 1-micron-sized particles from the fluid passing through it.

Characteristics of Absolute Filters:

· Highly precise filtration with consistent efficiency.

· Tested using standardized methods such as the Beta Ratio Test (Beta ≥ 500 or 99.8% efficiency).

· Essential for critical applications where contamination must be minimized.

Example of Absolute Filters:

· Pleated Membrane Cartridges – High surface area and precise filtration (e.g., PES, PTFE, PVDF membranes).

· Sterilizing-Grade Filters – Used in pharmaceutical production to remove bacteria and pyrogens.

· High-Efficiency HEPA/ULPA Filters – Capture 99.97% to 99.9995% of airborne particles down to 0.1 μm.

2.2 Nominal Micron Rating

A nominal micron rating indicates that a filter can capture approximately 85–95% of the particles at the specified micron size.

Unlike absolute filters, nominal filters do not guarantee removal of all particles at their rated size and are influenced by operating conditions such as flow rate and pressure.

Characteristics of Nominal Filters:

· Less precise than absolute filters, but sufficient for general-purpose filtration.

· Filtration efficiency varies (typically 85–95% at the rated size).

· More cost-effective compared to absolute-rated filters.

· Works best in multi-stage filtration systems where additional purification steps follow.

Example of Nominal Filters:

· Melt-Blown & String-Wound Filter Cartridges – Used in industrial and municipal water treatment.

· Bag Filters – Commonly employed in high-flow applications for removing bulk contaminants.

· Carbon Block & Granular Activated Carbon (GAC) Filters – Reduce chlorine, VOCs, and organic contaminants.

3. Why Micron Rating Matters in Filtration?

⚡3.1 Ensures Filtration Efficiency for Specific Contaminants

The micron rating directly determines which contaminants a filter can remove and with what efficiency. Selecting the correct micron rating ensures targeted removal of harmful particles:

· Example 1: 0.5-micron absolute-rated filter removes 99.99% of Cryptosporidium (4–6 μm) and Giardia (8–12 μm), critical for safe drinking water.

· Example 2: 50-micron filter effectively blocks sand and rust but allows smaller silt (25 μm) to pass, making it ideal for irrigation systems.

· Industry Standards: Filters certified to NSF/ANSI 53 (cyst reduction) or NSF/ANSI 42 (aesthetic contaminants) rely on micron ratings to meet compliance.

 ⚡3.2 Prevents Clogging & Extends Filter Life

Using a multi-stage filtration system with progressively smaller micron ratings minimizes premature clogging and extends the lifespan of high-precision filters:

· Case Study: In reverse osmosis (RO) systems, a 5-micron pre-filter removes sediment before water reaches the 0.1-micron RO membrane, reducing membrane fouling by 60%.

· Industrial Applications: Oil refineries use 25-micron bag filters upstream of 1-micron coalescers to prevent abrasive particles from damaging sensitive equipment.

· Cost of Failure: Skipping pre-filtration in wastewater treatment can clog 0.5-micron membranes, increasing downtime and replacement costs by 300%.

⚡3.3 Does a Lower Micron Rating Mean More Maintenance?

A mismatched micron rating accelerates filter degradation and raises operational expenses:

High Micron vs. Low Micron:

50-micron pleated filters last 6–12 months in municipal water systems due to low clogging risk.

1-micron melt-blown filters require replacement every 1–3 months in high-turbidity environments (e.g., river water).

Maintenance Savings:

A 10-micron spin-down filter (reusable) reduces annual cartridge costs by 50% compared to disposable 5-micron cartridges in agricultural pumps.

In food processing, 25-micron stainless steel screens endure 5+ years with routine cleaning, while 5-micron bags need monthly swaps.

4. Types of Micron Filters & Their Applications

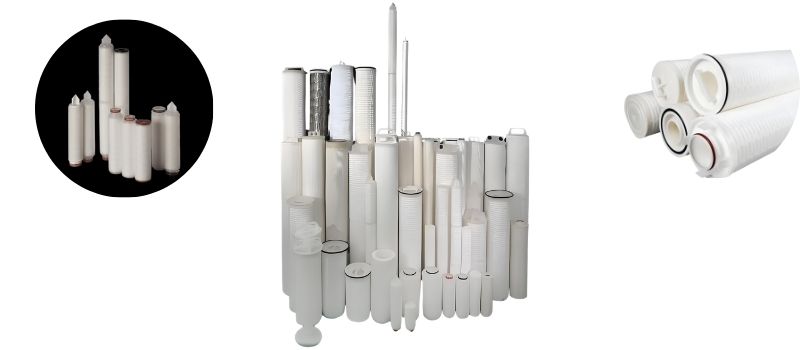

4.1 Pleated Filters: High Surface Area for Particle Capture

Design: Folded sheets of polyester or polypropylene create a large surface area for particle capture.

Best Use: Removing large particles with uniform size (e.g., sand, rust).

Micron Range: 5–25 μm (commonly used in 5–10 μm ranges).

Applications:

· Reverse Osmosis (RO) Pretreatment: Protects RO membranes from sediment.

· Whole-House Filtration: Standalone solution for sediment control.

· Product Example: 3M™ Pleated Polypropylene Filters - Ideal for high-flow residential systems (e.g., 10 μm models for well water).

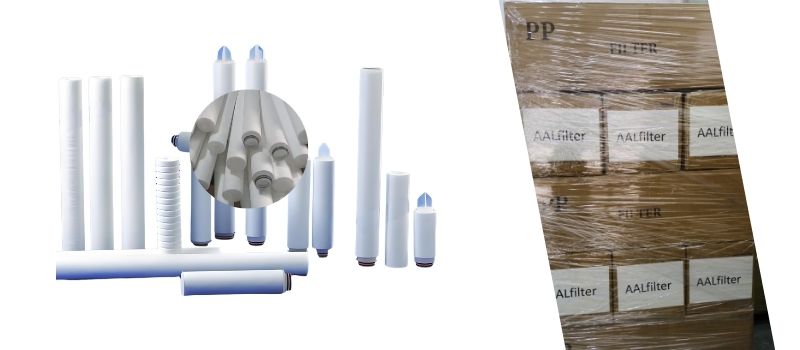

4.2 Melt-Blown Filters: Depth Filtration for Fine Particulates

Design: Depth-gradient structure with a dense core and looser outer layers.

Best Use: Removing particles of varying sizes (e.g., silt, fine debris).

Micron Range: 1–50 μm (rated by the smallest particle retained at the core).

Applications:

· Food & Beverage: Filters particulates in syrups and juices (e.g., 5 μm filters).

· Pharmaceuticals: Clarifies liquid medications.

· Product Example: Pentek® DGD-2501 Melt-Blown Cartridges - 5 μm depth filters for industrial pretreatment.

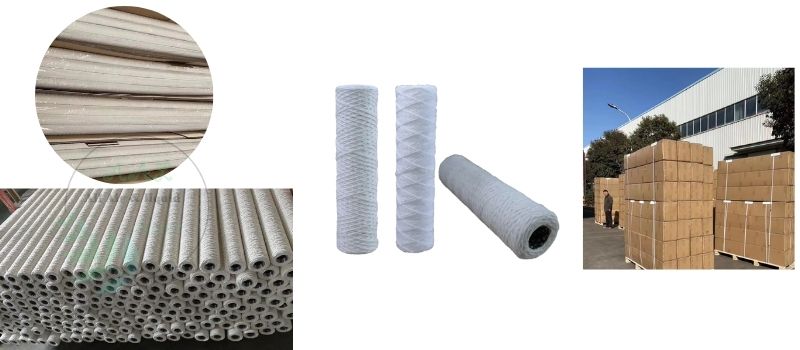

4.3 String-Wound Filters: Low-Cost Option for Industrial Use

Design: Strings (cotton, polypropylene) wound tightly around a core, increasing density toward the center.

Best Use: Removing variable-sized particles in low-cost applications.

Micron Range: 1–50 μm.

Applications:

· Chemical Processing: Filters abrasive slurries.

· Agriculture: Irrigation water purification.

· Maintenance: Replace every 3–6 months.

· Product Example: Cuno® Aqua-Pure String-Wound Filters - 25 μm models for sediment removal in commercial systems.

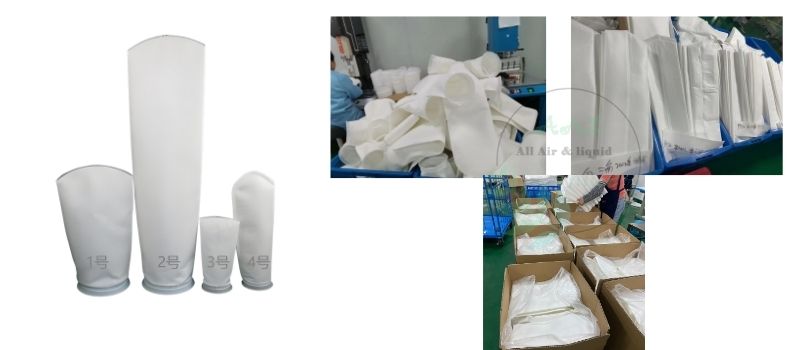

4.4 Bag Filters: High-Flow Applications & Bulk Contaminant Removal

Design: Polyester or polypropylene felt bags with depth-gradient layers.

Best Use: High-flow applications requiring large debris removal.

Micron Range: 1–200 μm.

Applications:

· Wastewater Treatment: Captures sludge and coarse particles.

· Paint Manufacturing: Filters pigments.

· Product Example: Parker Zander® Bag Housings - 50 μm bags for industrial coolant filtration.

5.Filtration Categories by Micron Rating

Filtration effectiveness largely depends on the micron rating of the filter, which determines the size of particles it can remove.

Different industrial and commercial applications require specific micron levels to achieve optimal water quality, fluid purity, and system protection.

Below are filtration types categorized by micron rating:

· Coarse Filtration (50 – 100 μm) – Large debris, sand, rust.

· Medium Filtration (10 – 50 μm) – Pollen, dust, sediments.

· Fine Filtration (1 –5 –10 μm) – Bacteria, organic matter.

· Microfiltration (0.1 – 1 μm) – Bacteria, sediments.

· Ultrafiltration (0.01 – 0.1 μm) – Viruses, proteins.

· Nanofiltration (NF) & Reverse Osmosis (RO) (<0.001 μm) – Ions, heavy metals.

5.1 What Micron Filter is Best for Drinking Water?

5.2 What Micron Rating Do You Need for Well Water?

5.3 Reverse Osmosis & Ultrapure Water Filtration: What Micron Rating Works?

Reverse Osmosis (RO) and Nanofiltration (NF) are used for ultrapure water applications in industries like pharmaceuticals, semiconductors, and Seawater desalination.

6.Key Selection Criteria for Water Filter Micron Ratings

Selecting the right filtration system requires careful evaluation of several key factors, including contaminant type, flow rate, system pressure, cost efficiency, and maintenance requirements.

Below is a comprehensive selection guide that covers essential criteria to ensure optimal performance, cost-effectiveness, and long-term reliability in industrial, municipal, and commercial filtration applications.

⏱️6.1 Water Quality Analysis

Before selecting a filter, analyzing water quality is crucial to understand the type and concentration of contaminants present.

Contaminant Profiling Methods:

· Turbidity Meters (NTU Measurement): Used to assess suspended solids and clarity of water.

· Particle Counters (μm Analysis): Measures particle size distribution to determine appropriate filter micron rating.

· Lab Testing (ICP-MS, GC-MS, HPLC): Detects heavy metals, organic pollutants, and chemical contaminants.

· Total Dissolved Solids (TDS) Testing: Determines RO membrane necessity for dissolved impurities.

Regional Variations in Water Composition & Recommended Solutions:

✅ Hard Water Areas (e.g., 300+ ppm CaCO₃ in Texas, India, Middle East):

· Use 5 μm sediment filters as pre-filtration before ion-exchange softeners to prevent scaling.

· Reverse osmosis (RO) membranes are recommended for high-TDS water (>1000 ppm).

✅ Microplastic Contaminated Municipal Supplies (e.g., Coastal Cities, Urban Areas):

· Use 0.5 μm carbon block filters (e.g., Aquasana EQ-1000) for microplastic and chlorine removal.

· Advanced ultrafiltration (UF) membranes can remove microplastics and fine particulates.

✅ High Organic Load (e.g., Agricultural & Food Processing Wastewater):

· Multi-stage filtration: 50 μm pre-filtration → 10 μm depth filter → 1 μm carbon filter → RO system.

· Activated carbon and biofiltration systems can handle pesticides, herbicides, and VOCs.

✅ Heavy Metal Contaminated Water (e.g., Industrial Discharge, Mining Areas):

· ICP-MS testing for lead (Pb), arsenic (As), mercury (Hg), and cadmium (Cd).

· Adsorptive media filters (iron-based, activated alumina) for arsenic removal.

· Reverse osmosis (RO) for broad-spectrum heavy metal removal.

⏱️6.2 Flow Rate and Pressure Drop Considerations

Filtration efficiency depends on maintaining the right balance between flow rate and pressure drop.

High-Flow Systems (Industrial Cooling, Manufacturing, Municipal Treatment):

· Use 20 μm pleated filters (e.g., Parker 20R series) to minimize pressure drop (<5 psi loss).

· High-capacity bag filters or multi-cartridge housings can accommodate large-scale water treatment.

Low-Flow Precision Systems (Laboratories, Pharmaceuticals, Medical Applications):

· 0.1 μm ultrafiltration membranes may require booster pumps for adequate flow rates.

· Use progressive filtration stages to prevent premature clogging of finer filters.

Key Flow Rate vs. Pressure Drop Guidelines:

⏱️6.3 Cost Optimization & Filter Longevity

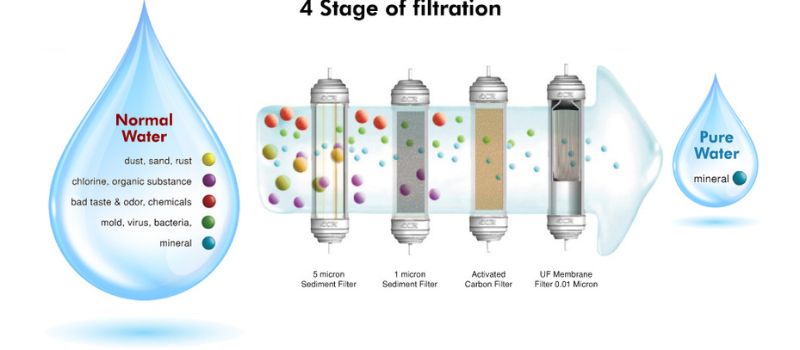

Multi-Stage Filtration: Reducing Costs & Extending Filter Life

Implementing a multi-stage filtration system significantly reduces filter clogging, prolongs lifespan, and lowers replacement costs.

By gradually removing contaminants at different micron levels, higher-precision filters (e.g., RO membranes) experience less fouling, leading to 40% lower maintenance costs.

Optimized Filtration Process for Cost Savings:
✅ 50 μm → 10 μm → 1 μm → 0.5 μm → RO membrane (Minimizes premature clogging)
✅ Pre-filtration reduces load on RO membranes, extending their lifespan by 2x
✅ WaterTech 2023 Study: Proper pre-filtration decreases membrane fouling by 60%, reducing downtime

Automated Backwashing & Self-Cleaning Filters

Manual filter maintenance is time-consuming and labor-intensive.

Automated backwashable filtration systems continuously clean themselves, eliminating manual intervention and reducing labor costs by up to 60%.

Continuous Filtration: Self-cleaning mechanism prevents clogging without disrupting operations
Lower Operational Costs: Reduces frequent cartridge replacements & labor-intensive maintenance
Extended Filter Lifespan: Prevents early saturation, ensuring consistent performance
Higher Flow Efficiency: Ideal for industrial water treatment, cooling towers, and wastewater recycling

✅ Example System: Lakos TwistIIClean – A high-efficiency automatic backwash filter that cleans itself in under 30 seconds, maintaining peak performance without disassembly.

Filter Lifespan Considerations:

⏱️6.4 Maintenance & Troubleshooting

Lifespan Indicators

· Pressure Rise: >10 psi increase signals clogging (replace 1 μm filters every 3–6 months).

· Turbidity Meters: Inline sensors (e.g., Hach’s Solitax sc) trigger automatic filter changes.

Common Errors

· Over-Filtration: Using 0.1 μm filters for irrigation water wastes $1,200/year in cartridges.

· Chemical Incompatibility: PVC housings degrade with chlorine dioxide; use PVDF instead.

7. Frequently Asked Questions (FAQ) About Micron Ratings

✅ What micron filter removes bacteria?

A 1-micron absolute-rated filter is typically needed to remove bacteria from water. However, the effectiveness depends on the type of bacteria and the filter technology used.

✅ What is the best micron rating for well water?

The best micron rating for well water depends on the level of sediment, bacteria, and contaminants present. A multi-stage filtration system(100μm → 5μm → 0.01μm ) is typically required

✅ Does a 5-micron filter remove parasites?

A 5-micron nominal-rated filter is not effective at removing microscopic parasites like Giardia & Cryptosporidium. These parasites are typically 4–12 μm in size, and a 1-micron absolute-rated filter or finer is required for effective removal.

✅How often should I replace my micron filter?

The replacement frequency of a micron filter depends on water quality, flow rate, and filter type.

General Filter Replacement Guidelines:
