HEPA vs ULPA Air Filters: Which One is Right for Your Cleanroom or Lab?

When it comes to clean air, not all filters are created equal.

Whether you’re designing a semiconductor lab, a hospital operating room, or simply upgrading your HVAC system, choosing between HEPA filter and ULPA filters can make or break your air quality goals.

 In this guide, we’ll break down their differences, applications, how to choose and why AALfilter’ s solutions stand out in the industry.

🌿1. What Are HEPA and ULPA Filters

☀️What is the difference between HEPA and ULPA filters?

HEPA (High-Efficiency Particulate Air) Filters

• Media: Glass Fiber

• Efficiency: Capture 99.97% of particles  ≥0.3 microns—like dust, pollen, and bacteria

• Application: Best air filtration system for hospitals, labs, and commercial HVAC

ULPA (ultra low particulate/ Penetration Air ) Filters

• Material: Ultra-Fine Glass Fibers with Nano-Coatings

• Efficiency: Trap 99.999% of particles ≥0.12 microns, including viruses and nanoparticles

• Application: Best air filter for semiconductor cleanroom and nanotechnology labs

☀️Frame & Sealing Materials

Frame material:

• Anodized Aluminum: Lightweight (2.7g/cm³), corrosion-resistant, cost-effective.

• 304/316L Stainless Steel: High-temperature resistance (500°C+), ideal for nuclear/chemical industries.

• Engineering Plastics: ABS/PP for portable devices.

Sealing Materials:

• Polyurethane Gaskets: Elastic sealing (≥30% compression), standard environments.

• Gel Sealant: Silicone-based fluid for leak rates ≤0.005% (critical cleanrooms).

☀️How do HEPA and ULPA filters work?

Both H14 HEPA filters and ULPA filters rely on three key filtration principles:

• Interception: Particles follow airflow and stick to fibers

• Impaction: Larger particles collide with fibers and remain trapped

• Diffusion: Smaller particles are captured due to random motion

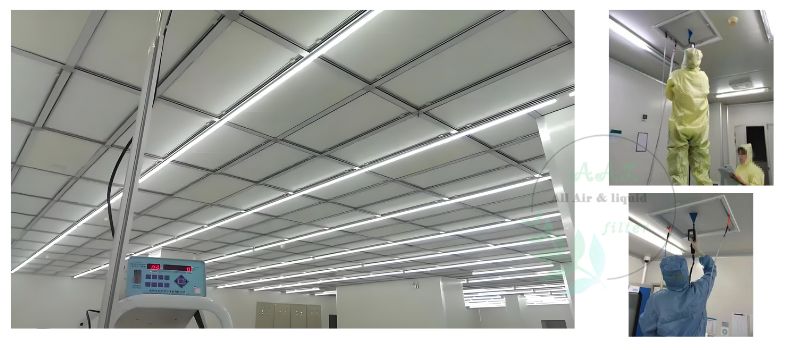

☀️Where to install?

Common installation locations include:

• 🦠End of HVAC systems, such as at the terminal ends of supply air ducts, near air outlets.

• 🦠Inside laminar flow hoods or ceilings, serving as clean air outlets.

• 🦠Within biological safety cabinets or clean benches, protecting the operational zone.

• 🦠Terminal section of exhaust systems, preventing pollutant release.

• 🦠Inside FFU (Fan Filter Units), used for top-down air supply in cleanrooms.

• 🦠Within standalone air purifiers, serving as the core filtration component.

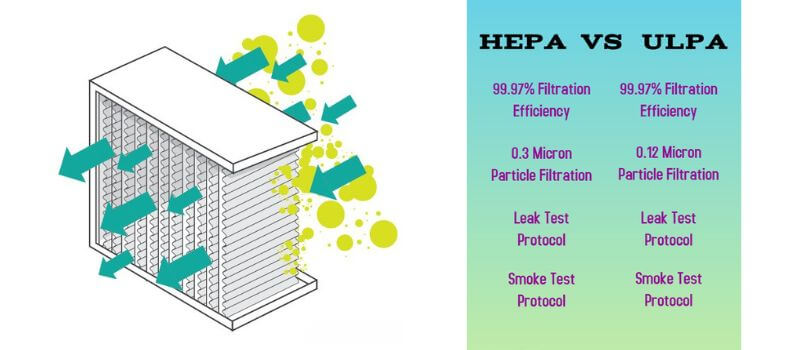

🌿2. HEPA vs ULPA: Key Differences & Performance Comparison

☀️HEPA vs ULPA Efficiency: Which One Captures More Particles?

☀️Airflow & Energy Consumption: HEPA vs ULPA Pressure Drop

Pressure Drop Comparison:

• HEPA Initial Pressure Drop: 120-250 Pa

• ULPA Initial Pressure Drop: 300-500 Pa (40% higher density, requiring customized high-pressure fans)

Energy Impact:

• ULPA systems consume 60-80% more energy than HEPA systems due to increased airflow resistance and higher operational demands.

🌿3. Cost vs. Performance: Is ULPA Worth the Extra Cost?

☀️While ULPA filters sound superior, they’re overkill for most applications. Here’s why:

• Higher Costs: ULPA filters cost more upfront and require frequent replacements

• Reduced Airflow: Their dense design cuts airflow by 20-50%, demanding stronger fans and higher energy bills

• Maintenance Hassles: Shorter lifespan means more downtime for replacements

• HEPA filters strike the perfect balance for 90% of industries—offering high efficiency without breaking the bank

☀️HEPA vs ULPA cost:

Cost-Effectiveness Coefficient=(Annualized Cost+Energy Consumption Cost)/ Filtration Efficiency

Annualized Cost = (Initial Investment+Replacement Cost)/ Service Life (years)

Prioritize ULPA if coefficient >1.5 (higher efficiency justifies shorter replacement cycles).

Select HEPA if coefficient ≤1.5 (lower maintenance frequency balances cost and performance).

🌿4. Where Should You Use HEPA or ULPA Filters?

☀️HEPA Filters for Labs, Hospitals & Commercial Use

HEPA filters are the best air filtration solution for medical, pharmaceutical, and industrial applications where maintaining clean air quality is crucial.

✅ Best Applications for HEPA Filters:

• Hospitals & Healthcare Facilities – Used in operating rooms, isolation wards, and PCR labs.

• Pharmaceutical Manufacturing – Ensures sterile conditions for drug production.

• Commercial HVAC Systems – Offices, hotels, and clean air environments for public spaces.

☀️ULPA Filters for Semiconductor, Aerospace & Nanotechnology

ULPA filters are required for ultra-clean environments where even the smallest airborne particles could compromise operations.

✅ Best Applications for ULPA Filters:

• Semiconductor Cleanrooms – Necessary for chip manufacturing (5nm process).

• Aerospace Engineering – Used in satellite assembly and optical component production.

• Nanotechnology & Quantum Research – Ideal for labs requiring near-zero particle counts.

☀️Hybrid Solutions

HEPA + Chemical Filtration: Effective for VOC control in laboratory exhausts

ULPA + DFS Technology: Used in biosafety labs for extreme air purity

🌿5. How to Choose the Right Filter? HEPA vs ULPA Selection Guide

When selecting HEPA and ULPA filters, a comprehensive evaluation of cleanliness requirements, cost-effectiveness, and system compatibility is essential. Below is a professional selection guide for H13 H14 HEPA filters and U15/U16/U17 ULPA filters :

☀️When to Choose H13 vs. H14 HEPA Filters?

Selection Recommendations:

Prioritize H14 hepa filter: For processes requiring particle concentrations ≤3,520/m³ (ISO Class 5 dynamic) or handling high-risk biologics (e.g., COVID-19 vaccine production).

Choose H13 hepa filter: For budget-constrained projects with cleanliness requirements ≤ISO Class 7 (352,000/m³), such as electronics assembly or food packaging lines.

☀️When to Choose U15, U16, or U17 ULPA Filters?

Technical Differences:

Fiber Density: U17 is 40% denser than U15, increasing pressure drop by 60–80% (requires custom high-pressure fans).

Detection Accuracy: U17 demands laser particle counters with ≤0.01μm resolution (e.g., Lighthouse 5100X).

🌿6. Maintenance Guidelines & Replacement Tips

☀️Regular HEPA and ULPA filter maintenance ensures optimal efficiency and extended lifespan.

How often should HEPA and ULPA filters be replaced?

• HEPA filters (H13-H14) typically last 12 months in HVAC systems.

• ULPA filters (U15-U17) require replacement every 6 months due to higher particle capture rates.

How to Extend HEPA & ULPA Filter Lifespan?

• Use G4 coarse pre-filters to trap large dust particles.

• Install F5-F9 medium filters to reduce load on primary HEPA/ULPA filters.

☀️Replacement Triggers:

Pressure drop increases by 20% or more.

Airflow volume decreases by 15% or more.

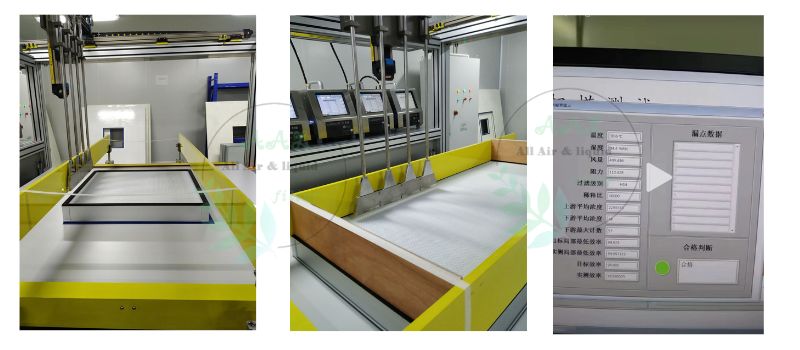

☀️Testing Methods:

PAO (Polyalphaolefin) Oil Test: Validates filter integrity using aerosol challenges.

Particle Counter Scanning: Detects leaks and quantifies filtration efficiency.

🌿7. Frequently Asked Questions About HEPA & ULPA Filters

⚡Q1: How often to change HEPA filters in HVAC systems?

💡A: Standard HEPA filters typically require one year replacement under normal operating conditions.

However, ULPA filters generally need replacement every 6 months due to their higher efficiency and faster particle-loading characteristics.

Actual schedules depend on air quality, system usage, and pressure drop monitoring.

⚡Q2: Why do ULPA filters require more frequent replacement than HEPA filters?

💡A: ULPA filters (e.g., U15-U17) capture 99.9995%+ of 0.12μm particles, leading to faster clogging from submicron contaminants.

HEPA filters (H13-H14) prioritize 0.3μm particles, balancing efficiency with longer service life in general HVAC applications.

⚡Q3: How can I extend the lifespan of HEPA/ULPA filters?

💡A: Pair them with pre-filters:

G4 coarse filters trap large particulates (>10μm) like dust and hair.

F5-F9 medium-efficiency filters capture mid-size particles (1-10μm).
This multi-stage filtration reduces the load on primary filters, extending operational lifespan by 30-50%.

⚡Q4: Can ULPA filters fully replace HEPA filters in all applications?

💡A: No. ULPA filters are optimized for capturing particles at 0.12μm (MPPS range),

while HEPA filters balance efficiency for 0.3μm particles.

System design must align with target particle sizes and operational requirements.

⚡Q5: Does a higher filter grade (e.g., U17) always guarantee better performance?

💡A: Not necessarily.

U17 filters consume 2.3× more energy than U15 filters and require high-power FFU systems to maintain airflow. Over specification may waste energy and strain infrastructure.

⚡Q6: Do all filters with the same efficiency rating perform identically?

💡A: No.

Variations in frame materials (aluminum vs. galvanized steel) and sealing quality can increase leakage rates by up to 15%,

even for filters with identical ratings.

⚡Q7: Does frequent filter replacement ensure operational safety?

💡A: No.

Unmonitored pressure drop changes may hide filter damage or bypass leaks.

Proactive monitoring of differential pressure is critical to avoid unplanned downtime.

⚡Q8: Can HEPA filters remove viruses?

 💡A:Yes,

 H14 HEPA filters capture airborne viruses, but ULPA filters (U15-U17) are more effective against nanoparticles.

🌿7. Why Choose AALfilter?

☀️At AALfilter, we engineer filters that go beyond standards:

100% Leak-Free: Rigorous testing with laser particle counters ensures zero bypass

Eco-Friendly Materials: Low chemical emissions for safer air

Custom Sizes: Fit any HVAC or cleanroom layout

Longevity: Optimized airflow design cuts energy costs by 15-30%

Pro Tip: Pair our HEPA filters with activated carbon pre-filters to tackle odors and VOCs

☀️Still Unsure? Use This Checklist!

Ask yourself:

What’s your target air quality? (ISO Class 1-100,000?)

What particle size matters most? (Viruses? Dust?)

What’s your budget? (HEPA saves 60%+ over ULPA long-term

For most, HEPA is the smarter choice. But if you’re pushing the limits of cleanliness, ULPA delivers.
