Everything You Need to Know About Fan Filter Unit (FFU) – Benefits, Structure, and Selection

1. What is a Fan Filter Unit (FFU)?

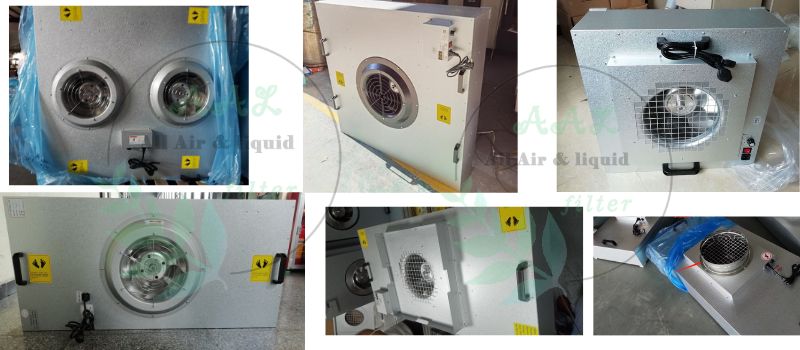

A fan filter unit(ffu) is a self-contained air filtration fan system that includes:

✅ High-efficiency HEPA/ULPA filters for particle removal
✅ An integrated fan and filter unit & motor to maintain airflow
✅ Laminar airflow control for clean environments

Used in ffu clean room , laboratories, and pharmaceutical production areas

The filter fan compensates for pressure drop(The resistance generated as air passes through the filter unit), ensuring consistent airflow.

2. How Does a Fan Filter Unit (FFU) Work?

A fan filter unit ffu draws in ambient air from the top or back of the unit, passes it through a hepa fan filter unit or ULPA filter, and then supplies the filtered air into the controlled space in a uniform laminar flow.

The working process includes the following steps:

l Air Intake – The filter fan unit pulls in unfiltered air from the surrounding environment or a ducted system.

l Filtration – The air passes through a hepa filter for fan (99.99% efficiency at 0.3 microns) or ULPA filter (99.9995% efficiency at 0.12 microns), removing airborne contaminants.

l Air Distribution – The filtered air is discharged in a controlled, laminar flow, minimizing turbulence and reducing contamination risks.

l Static Pressure Adjustment – The integrated fan filter motor maintains proper static pressure to compensate for increasing filter resistance as particles accumulate over time.

3. What are the Advantages of a Fan Filter Unit (FFU)?

According to industry studies, cleanrooms using HEPA-equipped FFU can achieve up to 99.99% particle removal efficiency, significantly improving air quality and reducing contamination risks in pharmaceutical and semiconductor environments.

Key Benefits of fan filters in Cleanrooms and HVAC Systems:

l High Filtration Efficiency – Equipped with HEPA or ULPA filters, FFU effectively remove airborne contaminants such as dust, bacteria, and aerosolized particles.

l Consistent Airflow Control – The built-in fan ensures stable airflow, even as the filter loads with particles over time.

l Energy Efficiency – Models with electronically commutated motors (ECM) provide significant energy savings compared to traditional motors.

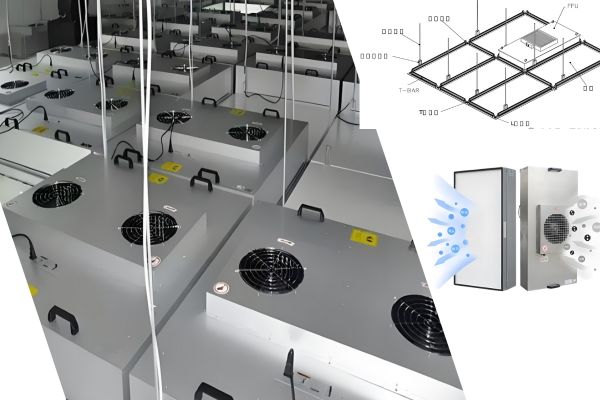

l Modular and Scalable – Fan filter unit for clean room installations integrate seamlessly into ceiling grids, also can be easily added to existing HVAC systems , making them flexible for various applications.

l Quiet Operation – Compared to large centralized air handling systems, FFU operate at lower noise levels, Ideal for labs and ffu clean room environments.

l Improved Air Change Rates – FFU contribute to maintaining high air change rates(Air changes per hour), a critical requirement in cleanroom and pharmaceutical environments.

4. What is the Structure of an FFU?

A  fan filter unit consists of several key components:

l Housing – Made of aluminum, stainless steel, or powder-coated steel, the housing encloses the filter fan and motor.

l Fan and Motor Assembly – Drives air through the filter, available in either Permanent Split Capacitor (PSC) or Electronically Commutated Motor (ECM) versions.

l HEPA/ULPA Filter – Core filter unit for Remove particulate contaminants from the airflow before it enters the controlled environment.

l Control System – Some advanced models feature adjustable speed control, airflow sensors, and remote monitoring capabilities for fan filter.

l Air Intake and Distribution System – Designed to maintain uniform airflow, minimizing turbulence(Turbulence may lead to the dispersion of contaminants) and contamination risks.

5. Why Do You Need to Use a Fan Filter Unit (FFU)?

FFU are essential in environments where high levels of air cleanliness and control are required. They are widely used in:

l Cleanrooms and Controlled Environments – Essential for semiconductor manufacturing, pharmaceuticals, and biotechnology to prevent contamination.

l Medical and Healthcare Facilities – HEPA filter fans Used in hospital pharmacies, pharmaceutical compounding areas, and surgical rooms to maintain sterile conditions.

l Food and Beverage Industry – Fan filter unit for clean room to prevent airborne contamination in food processing and packaging areas

l Aerospace and Microelectronics Manufacturing – Protects sensitive components from airborne particles and electrostatic discharge.

l HVAC and Laboratory Applications – Provides supplementary air filtration in existing HVAC systems and laboratory workstations.

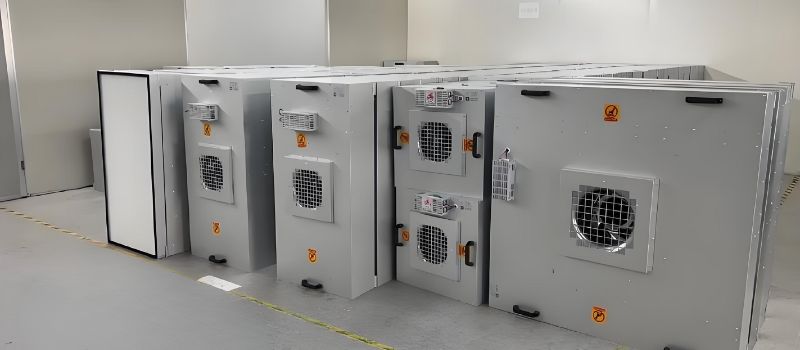

6. How to Choose the Right Fan Filter Unit (FFU)?

When selecting an FFU, consider the following factors:

(1) Application Requirements – Determine whether you need HEPA filter for fan or ULPA filters based on cleanliness standards.

FFU can be equipped with:

l HEPA Filters: 99.99% efficiency at capturing particles as small as 0.3 microns.

l ULPA Filters: 99.9995% efficiency at capturing particles as small as 0.12 microns, suitable for ultra-clean applications.

(2) Size & Airflow Capacity – Choose a size that fits your ceiling grid and provides the necessary airflow.

Fan filter unit are typically available in three standard sizes:

l 2 ft. x 4 ft. (Most common, provides 480 CFM at standard velocity)

l 2 ft. x 2 ft.

l 4 ft. x 4 ft.

(3)  Motor Type – If energy efficiency is a priority, opt for ECM motors instead of PSC motors.

The motor is a key component of FFU, impacting energy efficiency and operational costs.

Two primary motor types are used:

l Permanent Split Capacitor (PSC) Motors Traditional AC induction motors Lower initial cost but less energy efficient Fixed-speed operation

l Electronically Commutated Motors (ECM) Brushless DC motors with onboard microprocessors for optimized performance Higher efficiency, reducing energy consumption The initial higher cost is offset by energy savings, typically recovering costs within the first year.

(4) Filter Replacement Method – If frequent maintenance is expected, room-side replaceable (RSR) units may be more convenient.

 There are two primary replacement options:

l Room-Side Replaceable (RSR) Units: Feature an integrated knife-edge that engages with the gel-seal filter, preventing air bypass. Allows filter replacement from within the room without disturbing the ceiling or surrounding structure.

l Benchtop Replaceable Units: Require the unit to be removed from the ceiling for filter changes.Have 25% more filter area than RSR units, enabling higher airflow rates and extended filter life.

(5) Airflow Control Needs – Decide between constant torque or constant flow motor programs based on your system’s pressure control requirements.

FFU can be configured for different airflow patterns based on application requirements:

l Supply Flow (Most Common) Air is drawn in through the back/top of the unit (from a ducted connection or non-ducted plenum) and supplied downward with laminar airflow. Used in cleanrooms, pharmaceutical environments, and microelectronics manufacturing.

l Exhaust/Reverse Flow Air is pulled in through the perforated face of the unit and filtered before being exhausted outside the controlled space or recirculated. Used in applications where airborne contaminants need to be removed from a room rather than introduced.

(6) Budget & Lifecycle Costs – While ECM motors and ULPA filters have higher initial costs, they offer long-term savings in energy efficiency and improved air quality.

(7) Best FFU Type Based on Application

7. Frequently Asked Questions (FAQ) About Fan Filter Units (FFU)

✅ How many FFUs do I need for my cleanroom?
The number of FFUs needed depends on the cleanroom size and required air changes per hour (ACH):

ISO 5 Cleanroom (Class 100) – ~500-750 ACH

ISO 7 Cleanroom (Class 10,000) – ~60-90 ACH

ISO 8 Cleanroom (Class 100,000) – ~15-25 ACH

✅ Do FFU require special maintenance?
Regular maintenance for fan filter includes:

Cleaning the pre-filters every 3-6 months

Replacing HEPA filter for fan every 1-3 years (depending on usage)

Inspecting fan & motor operation annually to ensure performance

✅ Can FFU operate in negative pressure environments?
Yes, FFU can function in negative pressure rooms where airborne contaminants need to be contained, such as biosafety labs and isolation rooms.

✅ What is the airflow velocity of an FFU?
The standard air velocity of an FFU is 90-100 feet per minute (FPM), ensuring laminar airflow for contamination control.

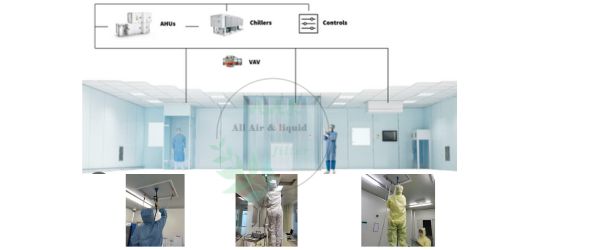

✅ Can I install an FFU in an existing HVAC system?
Yes, fan filter unit can be integrated into existing HVAC systems or used as standalone filtration units. They can be mounted in suspended ceilings, cleanroom grids, or laminar flow workstations.

✅ Are FFU energy efficient?

Yes, especially ffu models with Electronically Commutated Motors (ECM), which consume 30-50% less energy than traditional motors.

✅ What is the difference between an FFU and a traditional air handling unit (AHU)?

✅ What is the expected lifespan of an FFU?

With proper maintenance, an FFU unit can last 10+ years, though the filters need replacement every 1-3 years depending on environmental conditions.
