The Ultimate Guide to Coalescing Filters: How Coalescent Filters Work, Applications in Air Compressors, Oil & Gas Systems

💡What is a Coalescing Filter?

A coalescing filter—also called a coalescer filter, coalescing air filter, or coalescent filter—is a high-efficiency filtration device designed to remove fine liquid droplets, oil mist, and aerosols from gas or liquid streams. These filters are critical in systems that require pure, dry, and contaminant-free output, such as compressed air networks, fuel systems, and natural gas processing.

Unlike traditional filters that trap solid particulates, coalescing filters are engineered to coalesce (merge) microscopic liquid particles into larger droplets that can be easily drained away.

🔧Core Functions of Coalescing Filters

Coalescing filters are used across multiple industries for:

✅ Compressed Air Purification: Removes oil mist and water vapor in air compressors

✅ Fuel Systems: Eliminates free water from diesel, jet fuel, and gasoline

✅ Natural Gas Processing: Improves gas quality by removing water, hydrocarbons, and H₂S

✅ Oil-Water Separation: Acts as an oil coalescing filter in separators

✅ Instrument Protection: Prevents moisture damage in sensitive measurement systems

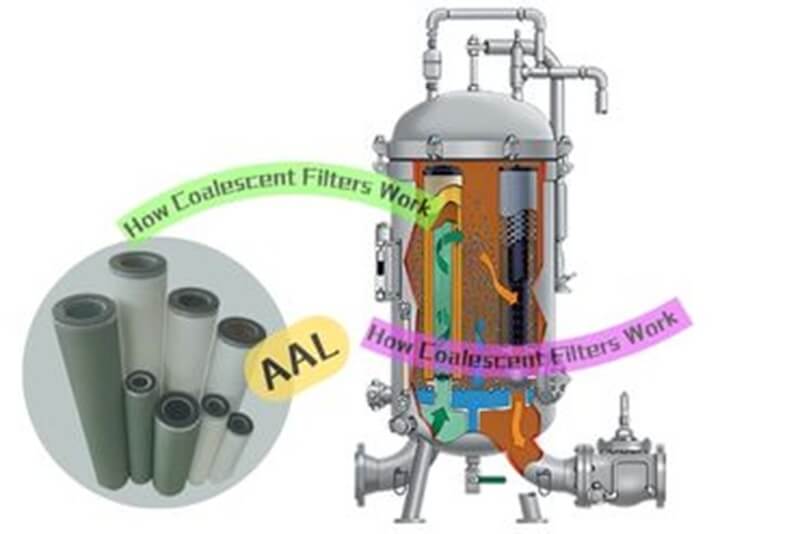

🔬How Do Coalescing Filters Work?

🌀Stage 1: Coalescence

As air or gas passes through coalescing filter elements, submicron aerosols undergo:

Inertial impaction – Particles collide with the glass fiber media

Direct interception – Droplets larger than fiber gaps get trapped

Brownian diffusion – Smaller particles stick to fibers via molecular motion

These filter coalescer elements merge tiny droplets into larger ones.

🌊Stage 2: Gravity Separation

Larger droplets settle by gravity

Oil collects in a sump (e.g., in coalescing filter for air compressors)

Water settles at the bottom in fuel/gas applications

🔍High-performance coalescing filters achieve up to 99.98% efficiency for 0.3μm particles

🔄Coalescers vs. Separator Filters: What's the Difference?

🏭Common Applications of Coalescing Filters

🔥Top 5 Benefits of Using a Coalescing Filter

✅ Submicron Precision
Captures particles as small as 0.01μm—smaller than most viruses

✅ Low Pressure Drop
< 0.5 psi pressure drop → Save up to 30% energy

✅ Corrosion Resistance
316L stainless steel housing ideal for H₂S-rich environments

✅ Long-Life Elements
U.S.-made HV glass fiber lasts 12–24 months

✅ Modular Systems
Support online replacement—no shutdowns required

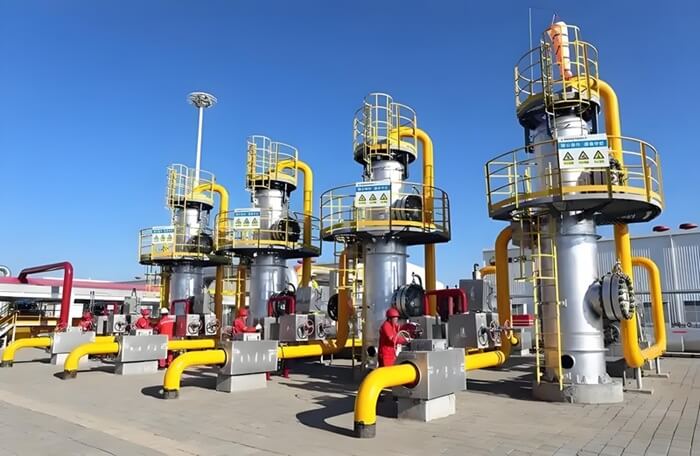

⚙️Oil & Gas Applications: End-to-End Coalescing Solutions

🟢Upstream

Wellhead Coalescers: Remove water/hydrocarbons before compression

Shale Gas: Capture aerosols to prevent hydrate blockage

🔵Downstream

Natural Gas Dehydration: Water content reduced to <0.1 lb/MMscf

Amine Sweetening: Works with scrubbers to reduce H₂S and corrosion

🔧AALfilter Solutions

Separation Filter Cartridge: Flow capacity up to 50,000 m³/h, for high-pressure gas

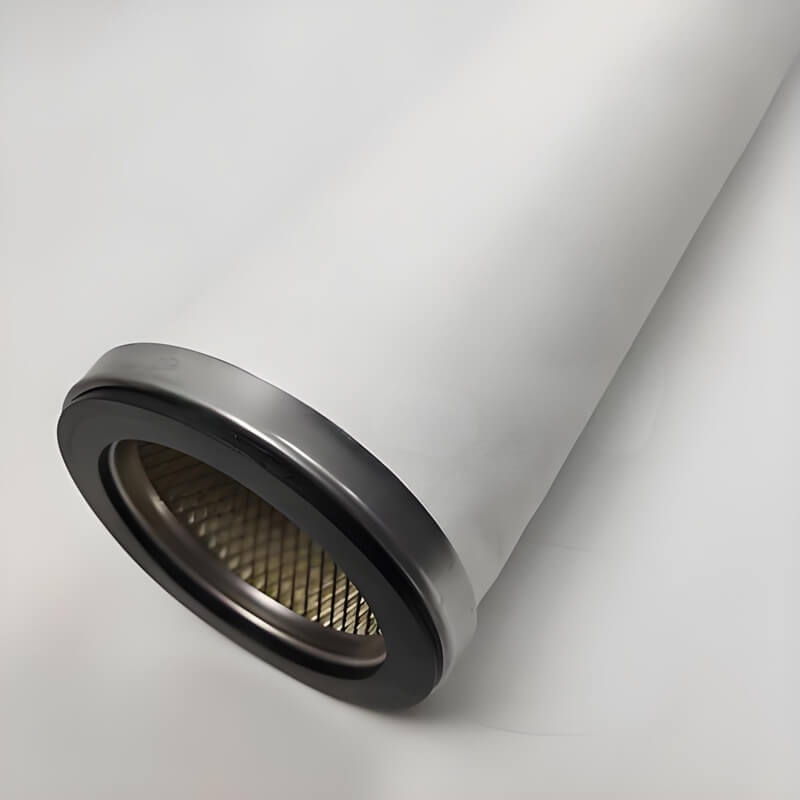

Coalescing Filter Element: Methanol-resistant, for LNG and chemical processes

🧠How to Choose the Right Coalescing Filter?

Request Your Custom Coalescing Filter Solution

Let us help you select the best coalescing filter for air compressors, oil-water separation, or gas purification.

Visit: AALfilter Coalescing Separation Filter Element
email: [email protected]

❓Frequently Asked Questions (FAQ)

Q: What is a coalescing air filter?
A coalescing air filter removes aerosols, oil mist, and fine water droplets from compressed air systems to ensure purity.

Q: Can coalescing filters separate oil and water?
Yes. They are commonly used in oil-water separators and can effectively handle both oil and moisture removal.

Q: What's the difference between coalescent filter and separator filter?
Coalescent filters trap and merge droplets. Separator filters then drain these droplets using gravity and hydrophobic layers.

Q: Do I need a coalescer filter element replacement often?
Typically, coalescer filter elements last 12 to 24 months, depending on usage and contaminant load.

🌍Industry Insight

The global coalescing filter market reached $1.27 billion in 2023, with petrochemical applications accounting for 45%+ of total demand. (Source: Grand View Research)
