📘How Automatic Self-Cleaning Filters Work: Industrial Backwash Filtration Explained

In modern industries, water treatment, and environmental management, filtration technology plays a critical role in ensuring efficiency, reliability, and sustainability. As systems become more intelligent and automated, the automatic self-cleaning filter has emerged as a transformative upgrade to traditional filters. By enabling continuous operation without manual intervention, this advanced filter type is rapidly becoming a go-to solution for a wide range of industrial applications.

In this guide, we’ll explore the definition, working principles, types, advantages, and selection tips of automatic self-cleaning filters — helping you understand why they’re an essential component of today’s high-performance fluid systems.

🧠What Is an Automatic Self-Cleaning Filter?

An automatic self-cleaning filter is a filtration system capable of automatically removing solid particles, debris, or contaminants from liquids or gases without requiring manual cleaning or system shutdown. These filters are ideal for continuous, unattended operation in applications where reliability and uptime are crucial.

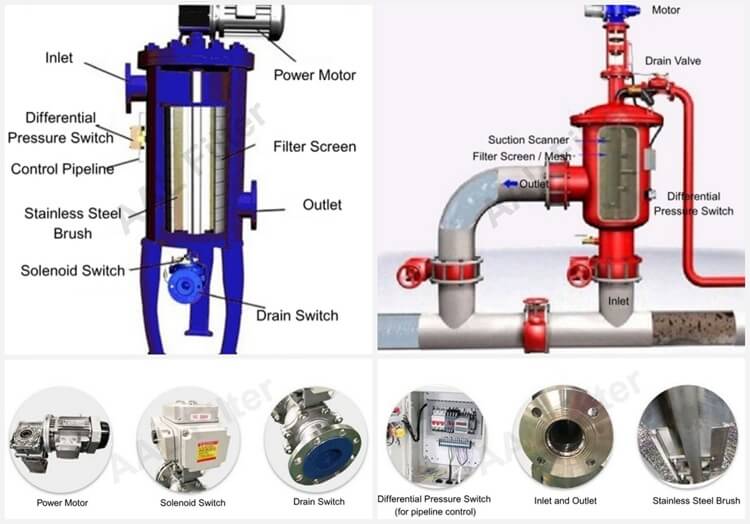

Key Components:

· Filter Housing: Pressure-resistant body that houses the filtration and cleaning elements

· Filter Element: Typically made of stainless steel wedge wire, sintered mesh, or wire mesh

· Self-Cleaning Mechanism: Includes backwash valves, suction nozzles, or mechanical scrapers

Common Cleaning Mechanisms:

· Backwashing: Uses reversed flow to flush out accumulated debris

· Suction Scanning: Vacuum nozzles scan the filter surface to remove trapped solids

· Mechanical Scraping: Internal brushes or blades physically remove debris from the screen surface

🔁Introduction to Automatic Backwash Filters

An automatic backwash filter operates by reversing the flow of liquid to clean the filter element and remove retained contaminants.

How It Works:

· Reverses the flow using motorized or pneumatic valves

· May use dedicated pumps or flow redirection to enable backwash

· Ideal for removing fine particles without stopping operations

Triggering Conditions:

· Pressure Differential: Cleaning starts when the pressure drop across the filter exceeds a preset value

· Timer-Controlled: Periodic cleaning based on programmable intervals

· Sensor-Driven: Real-time data from pressure, flow, or turbidity sensors

⚙️How Does a Self-Cleaning Filter Work?

Here’s a step-by-step breakdown of the self-cleaning filtration process:

1. Filtration: Fluid passes through the filter element, trapping particles and contaminants

2. Accumulation: Solids build up, increasing pressure drop or decreasing flow

3. Automatic Cleaning Activation: Triggered by pressure differential, timer, or sensor feedback

4. Cleaning Process:

        ✅Backflow washes away the debris

        ✅Suction nozzle or scraper mechanism removes buildup

5. Debris Discharge: Waste is expelled through a separate drain outlet

6. Normal Operation Resumes: The filter continues functioning without interruption

⚖️Advantages and Disadvantages of Automatic Self-Cleaning Filters

Advantages:

· High Efficiency: Maintains consistent filtration performance over long periods

· Cost Savings: Reduces manual labor and frequent filter replacements

· Time-Saving: Automatic cleaning requires no operator intervention

· Reduced Downtime: No need to stop the system for maintenance

· Environmentally Friendly: Minimizes waste and supports sustainable operations

Disadvantages:

· Complex Design: More sophisticated manufacturing and maintenance requirements

· Higher Energy Use: Cleaning mechanisms require power or compressed air

· Application Limitations: Less suitable for extremely sticky or clogging contaminants

🔧Maintenance Tips for Self-Cleaning Filters

Even though these systems are largely self-sufficient, periodic maintenance is essential to ensure long-term reliability.

Recommended Maintenance Frequency:

· Every 6–12 months, depending on system usage and fluid quality

Typical Maintenance Tasks:

· Inspect and clean filter screens or elements

· Replace worn parts such as seals, brushes, or actuators

· Test the cleaning mechanism, valves, and control systems

· Ensure proper discharge of waste through the drain outlet

🔍How to Select the Right Automatic Self-Cleaning Filter

Choosing the ideal filter requires evaluating several technical and environmental factors.

Key Selection Criteria:

1. Type of Contaminants:

        ✅Particle size, density, concentration, and stickiness

        ✅Presence of sand, fiber, scale, or biological solids

2. Flow Rate:

        ✅Required treatment capacity (measured in m³/h or GPM)

3. Filtration Accuracy:

        ✅Common micron ratings range from 10 μm to 500 μm

4. Operating Pressure:

        ✅Ensure the filter is compatible with system pressures

5. Fluid Compatibility:

        ✅Filter materials should resist corrosion, abrasion, or chemical attack

6. Control Integration:

        ✅Optional PLC, SCADA, or remote monitoring capabilities

🌿Conclusion: Smarter Filtration for Smarter Systems

The evolution from static to automatic self-cleaning filters reflects a broader trend in industrial systems: the move toward intelligent, efficient, and low-maintenance solutions. These filters not only ensure high performance and continuous operation but also contribute to long-term sustainability and operational savings.

At AALFilter, we provide a full range of automatic backwash and self-cleaning filters, tailored to diverse industrial applications — from water treatment and HVAC to petrochemical and agricultural systems. Contact us today to request a quote or speak with a filtration expert.

❓Frequently Asked Questions (FAQ)

1. How is an automatic self-cleaning filter different from a regular filter?
🅰️Unlike traditional filters, self-cleaning filters automatically remove debris without stopping the system or requiring manual cleaning.

2. Do I need to replace the filter cartridge regularly?
🅰️Most self-cleaning filters use reusable stainless steel screens. Regular cleaning is automatic, and parts only need replacing if worn or damaged.

3. What industries use automatic self-cleaning filters?
🅰️They are widely used in power plants, steel mills, wastewater treatment, irrigation, food processing, and HVAC systems.

4. Can these filters be integrated into an existing system?
🅰️Yes. Many filters are designed with standard connections and control interfaces, making integration into legacy systems straightforward.
