Wastewater Filtration : Advanced Treatment & Precision filter Systems

1. Introduction

Wastewater is a byproduct of human activities, including industrial production, agricultural operations, and household use.

It contains various contaminants such as organic pollutants, heavy metals, nutrients, and microorganisms, all of which can severely impact the environment and public health if not properly treated.

To protect ecosystems and maintain clean water supplies, wastewater undergoes filtration and treatment before being discharged or reused.

Modern filtration technologies play a crucial role in removing harmful substances, ensuring compliance with regulatory standards, and facilitating water recycling for sustainable water management.

2. The Importance of Wastewater Filtration

Wastewater filtration plays a critical role in protecting both the environment and industrial operations.

Whether in manufacturing, agriculture, or municipal water treatment, filtration helps remove harmful contaminants, ensuring that discharged or reused water meets safety standards.

With growing global concerns over water scarcity and pollution, effective wastewater management is not just a regulatory requirement but also a responsible business practice.

Implementing wastewater filtration systems offers numerous advantages, including cost savings, environmental benefits, and operational efficiency. Below are Three Benefits of Wastewater Filtration:

💧Cost Savings and Regulatory Compliance

In the past, many companies could discharge untreated wastewater into nearby rivers, lakes, or municipal sewage systems without significant consequences.

However, stricter environmental regulations have made improper wastewater disposal a costly mistake, leading to heavy fines, legal consequences, and potential shutdowns.

By investing in advanced filtration systems, businesses can avoid non-compliance penalties while also reducing overall water-related expenses.

Many modern filtration technologies allow for water reuse within industrial processes, lowering the demand for fresh water and decreasing wastewater discharge costs.

Additionally, automated filtration systems reduce labor costs by minimizing the need for manual monitoring and maintenance.

Companies that implement efficient wastewater treatment not only comply with regulations but also transform their wastewater from a liability into a valuable, reusable resource.

💧Environmental Protection and Sustainability

One of the most significant advantages of wastewater filtration is its positive impact on the environment.

Industrial wastewater often contains hazardous chemicals, heavy metals, and biological contaminants that can harm ecosystems if released untreated.

Advanced filtration systems remove these pollutants, preventing water sources from becoming contaminated and reducing the risk of harming aquatic life.

Additionally, wastewater filtration contributes to sustainability by promoting water conservation.

By purifying and reusing treated water, industries can reduce their dependence on freshwater supplies, which is particularly crucial in regions facing water shortages.

Filtration also minimizes the carbon footprint of wastewater management by reducing the need for long-distance transportation of contaminated water and lowering emissions from alternative disposal methods.

In short, wastewater filtration is a key element in building a more sustainable future.

💧Scalability and Adaptability for Different Industries

Wastewater filtration systems offer flexibility and scalability, making them ideal for various industrial applications.

Whether a company needs a small-scale filtration unit for localized water treatment or a large, multi-stage system for high-volume wastewater processing, filtration technologies can be customized to fit specific operational needs.

Moreover, as new treatment technologies emerge, businesses can integrate these advancements into their existing filtration systems to improve efficiency and performance.

Upgrading filtration components, such as adding advanced membranes or automated monitoring systems, can enhance water purification without requiring a complete overhaul of the system.

This adaptability ensures that businesses remain compliant with evolving environmental regulations while continuously optimizing their wastewater management processes.

So, Effective wastewater filtration provides businesses with financial, environmental, and operational benefits.

By reducing costs, improving sustainability, and offering adaptable solutions, wastewater treatment helps industries meet regulatory requirements while contributing to a cleaner environment.

As technology continues to evolve, wastewater filtration will play an even more crucial role in protecting water resources and promoting efficient water management worldwide.

3. Key Contaminants in Wastewater

Wastewater may contain a variety of harmful substances that need to be removed before it can be safely released or reused. Some of the most concerning contaminants include:

🧪Biological Oxygen Demand (BOD): Measures the amount of organic pollution, which can deplete oxygen levels in water bodies and harm aquatic life.

🧪Chemical Oxygen Demand (COD): Indicates the presence of both organic and inorganic pollutants.

🧪Heavy Metals (Lead, Mercury, Cadmium): Toxic elements that accumulate in ecosystems and pose health risks.

🧪Total Suspended Solids (TSS): Particles that reduce water clarity and contribute to sedimentation.

🧪pH Levels: Must be regulated to prevent water acidity or alkalinity from harming aquatic life.

🧪Nutrients (Nitrogen, Phosphorus): Excessive amounts can lead to harmful algal blooms and water pollution.

🧪Emerging Contaminants: Pharmaceuticals, microplastics, and industrial chemicals that pose new environmental challenges.

Different regions have varying regulations on permissible pollutant levels. Industries must consult local environmental authorities to determine their specific wastewater treatment requirements.

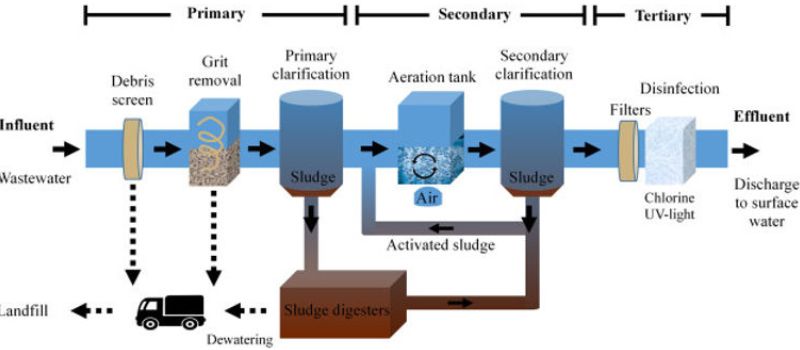

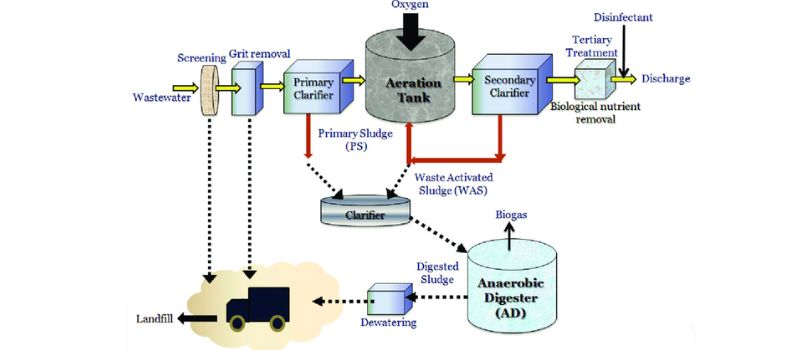

4. Stages of Wastewater Treatment

Wastewater treatment generally consists of three stages:

①Primary Treatment

This initial stage removes large debris and solids through screening and sedimentation. The steps include:

Screening: Large objects such as sticks, leaves, and plastics are removed to prevent damage to equipment.

Sedimentation: Heavier particles settle at the bottom of tanks, forming sludge that is later processed separately.

②Secondary Treatment

This stage focuses on breaking down organic contaminants using biological processes:

Microbial Degradation: Microorganisms consume organic pollutants, reducing BOD and COD levels.

Aeration: Air is introduced to stimulate microbial activity and improve pollutant breakdown.

③Tertiary Treatment

This advanced stage further purifies the water, often using filtration and chemical disinfection methods:

Membrane Filtration: Removes fine particles and dissolved pollutants.

Chemical Treatment: Uses chlorine, ozone, or UV radiation to kill pathogens and disinfect water.

Reverse Osmosis (RO): Eliminates dissolved salts, heavy metals, and other contaminants, producing high-quality water.

5.Types of Filtration Systems Used in Wastewater Treatment

Wastewater treatment systems rely on two primary filtration methods to remove contaminants: particle filtration and membrane filtration. These technologies operate at different scales and target distinct pollutants, ensuring water quality meets reuse or discharge standards.

①Particle Filtration: Removing Solids >1 Micron

Particle filtration is the first line of defense in wastewater treatment, designed to remove suspended solids, debris, and coarse particles. It serves as a pretreatment step to protect downstream processes from clogging or fouling. The choice of particle filter depends on particle size, concentration, and system requirements.

Key Technologies in Particle Filtration

🌐Bag Filters & bag filter housing

1) Design: Made of polypropylene, nylon, or polyester with pore sizes ranging from 1–800 microns.

2) Operation: Wastewater flows into the bag, trapping solids while allowing clean liquid to pass through.

3) Applications:

Ø Low-flow systems (e.g., food processing, automotive wash bays).

Ø Industries requiring minimal waste (e.g., paper mills recovering pulp from wastewater).

4) Advantages:

Ø Cost-effective for small-scale operations (single bag cost: 50–200).

Ø Easy replacement and low maintenance.

5) Limitations:

Ø Limited to low-to-medium flow rates (multi-bag systems max: ~200 m³/h).

Ø Manual cleaning required for heavy sludge loads.

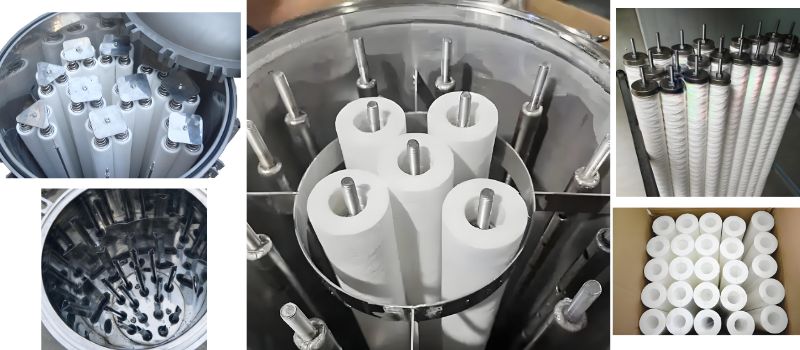

🌐Cartridge Filters

1) Types:

Ø Surface Filters: Capture particles on the filter surface (e.g., pleated polypropylene for 10–100 micron particles).

Ø Depth Filters: Use a tortuous path media (e.g., glass fiber or activated carbon) to trap sub-micron particles (down to 0.5 microns).

2) Innovations:

Ø Melt-blown cartridges: High dirt-holding capacity for oily wastewater.

Ø Sterilizable membranes: PTFE-coated cartridges for pharmaceutical wastewater.

3) Applications:

Ø Pretreatment for reverse osmosis (RO) in power plants.

Ø Microplastic removal in municipal wastewater.

🌐Self-Cleaning Filters

4) Mechanisms:

Ø Backwashing: Reverse flow dislodges debris (e.g., Siemens AFM™ systems with <60-second cycles).

Ø Mechanical Scraping: Rotating blades clean filter surfaces (e.g., VAF filters in mining slurry treatment).

5) Advantages:

Ø Zero downtime for continuous operations (e.g., petrochemical cooling loops).

Handle high solids loads (up to 10,000 ppm TSS).

6) Case Study:

Ø A steel plant reduced sludge disposal costs by 40% using automated backwashing filters.

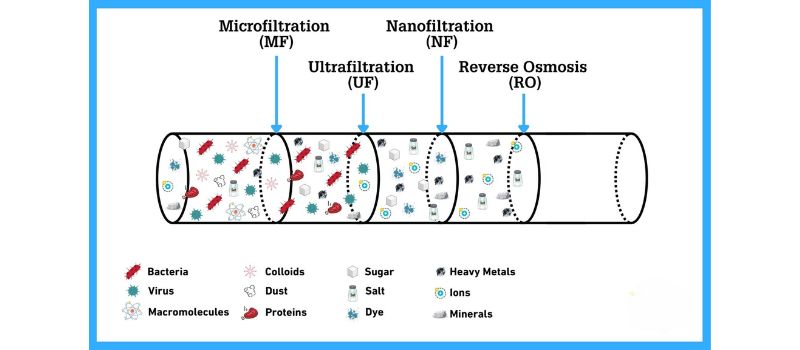

②Membrane Filtration: Precision Separation at Molecular Scale

Membrane filtration addresses dissolved solids, microorganisms, and fine colloids that particle filters cannot remove. It is critical for high-purity water reuse, especially in industries with strict discharge limits.

Membrane Types and Applications

Cutting-Edge Innovations

1) Anti-Fouling Membranes:

Ø Graphene oxide-coated RO membranes reduce energy consumption by 20% (e.g., LG Chem’s HiPura™ series).

2) Hybrid Systems:

Ø UF + Activated Carbon: Remove organic dyes in textile wastewater (COD reduction >90%).

Ø Electrocoagulation + NF: Treat heavy metal-laced electroplating effluents.

3) Resource Recovery:

Ø RO brine concentrators extract lithium from mining wastewater.

Case Study: Power Plant Zero Liquid Discharge (ZLD)

A coal-fired power plant achieved ZLD by combining:

Ø Self-cleaning filters to remove fly ash (TSS: 2,000 ppm → 50 ppm).

Ø Ultrafiltration to eliminate colloidal silica.

Ø RO + Evaporator to recover 95% water and crystallize salts for industrial reuse.

Selecting the Right Filtration System

1) Particle Load:

Ø High TSS (>500 ppm): Self-cleaning filters or centrifugal separators.

Ø Low TSS (<50 ppm): Cartridge filters with depth media.

2) Chemical Compatibility:

Ø Acidic wastewater (pH <2): Use PVDF or PTFE membranes.

Ø Oily wastewater: Hydrophobic melt-blown cartridges.

3) Automation Needs:

Ø Smart sensors (e.g., IoT-enabled pressure monitors) optimize backwashing cycles.

Particle and membrane filtration form the backbone of modern wastewater treatment. While particle filters excel at coarse solids removal, membrane systems enable molecular-level purification. Advances in materials science and automation (e.g., AI-driven predictive maintenance) are driving down costs and expanding applications, from municipal sewage to hyperscale semiconductor fabs. Collaborating with filtration experts ensures tailored solutions that balance efficiency, cost, and regulatory compliance.

6. Wastewater Treatment Operators

Municipal Treatment Plants

Handle household and commercial wastewater.

Utilize standardized treatment processes to ensure regulatory compliance.

Industrial Wastewater Treatment Systems

Treat highly polluted water from manufacturing, oil refining, and chemical industries.

Often require specialized filtration and treatment technologies to remove industrial contaminants.

May incorporate water recycling to reduce operating costs and environmental impact.

7. Modern Water Treatment Systems

Advantages of Advanced Filtration Technologies:

More effective removal of pollutants.

Compact and space-efficient designs.

Lower operational costs through automation and energy efficiency.

Customizable to meet specific industry needs.

Factors Affecting Operating Costs:

Labor and maintenance.

Electricity consumption.

Cost of chemicals and filter replacements.

Compliance with environmental regulations.

Challenges in Wastewater Treatment:

Frequent filter clogging.

High energy demand for advanced filtration methods.

Disposal of collected contaminants.

Keeping up with evolving regulatory requirements.

8. Future Trends in Wastewater Filtration

Innovations in wastewater treatment are shaping the future of the industry:

Smart Monitoring Systems: Real-time sensors and AI-based automation optimize treatment efficiency.

Energy-Efficient Equipment: Reduces operational costs and environmental impact.

Improved Filter Materials: Longer-lasting membranes and filters lower maintenance needs.

Resource Recovery: Technologies that extract valuable byproducts like biogas, fertilizers, and metals from wastewater.

Chemical-Free Treatment Methods: UV and ozone-based disinfection reduce the need for chemical additives.

9. Frequently Asked Questions

⚡Q: How do activated carbon filters differ from standard carbon filters?
A: Activated carbon has higher porosity and adsorption capacity, targeting VOCs and chlorine, whereas standard carbon is less effective.

⚡Q: Is self-cleaning synonymous with backwashing?
A: No. Self-cleaning is fully automated (e.g., rotary brushes), while backwashing may require manual intervention.

⚡Q: What is the optimal filter media combination?
A: RO + activated carbon is common, but site-specific factors (e.g., contaminant type, budget) dictate choices.

⚡Q: How do bacteria aid in wastewater treatment?
A: Species like Bacillus break down oils and proteins in biological filters, reducing organic loads.

10. Conclusion

Wastewater filtration is essential for protecting the environment, conserving water resources, and ensuring regulatory compliance. With advancements in filtration technologies, industries can achieve more efficient and cost-effective wastewater management. Investing in modern treatment solutions helps businesses reduce water pollution, minimize costs, and contribute to a more sustainable future.

As global water scarcity increases, continuous improvements in wastewater filtration will be vital in maintaining a clean and safe water supply for future generations.
