Membrane Filter vs Depth Filter: How to Choose the Right Industrial Filtration Solution
Membrane Filter vs Depth Filter: How to Choose the Right Industrial Filtration Solution?
Introduction
In industrial liquid purification processes, Membrane Filters and Depth Filters are two essential filtration technologies. Each offers distinct advantages and is suited for different applications. Choosing the right type of filter is critical for improving product quality, minimizing downtime, and reducing operating costs.
This article provides a comprehensive comparison of these two filtration methods—covering their working principles, application differences, and selection guidelines—to help you determine the best solution for your needs.
What Is a Membrane Filter?
✅ Definition:
A Membrane Filter is a surface filtration device that uses microporous membrane materials to retain fine particles and microorganisms with high precision. It is ideal for final-stage or critical process filtration.
✅ Key Features:
● Precisely arranged pore sizes for absolute-rated filtration
● Pleated structure for expanded surface area
● Common materials: PES, PTFE, PVDF, Nylon
✅ Working Principle:
● Filtration occurs primarily on the membrane surface
● Uniform pore size provides targeted retention
● High filtration efficiency, but prone to clogging
✅ Typical Characteristics:
● Filtration accuracy: 0.1 to 1 μm
● Integrity testing possible
● Suitable for low-contaminant fluids
● Shorter service life
● Higher cost
What Is a Depth Filter?
✅ Definition:
A Depth Filter uses a thick, porous filter medium to trap contaminants throughout its entire depth, making it ideal for high-particulate-load environments and pre-filtration.
✅ Working Principle:
● Particles are captured throughout the filter media
● Irregular and gradient pore size structure
✅ Common Materials:
● Melt-blown polypropylene (PP)
● String-wound cotton or synthetic fibers
● Glass fiber, polyester
✅ Typical Characteristics:
● High dirt-holding capacity
● Lower cost
● Not suitable for integrity testing
● Longer filter life
● Nominal filtration rating (typically 1–100 μm)
Membrane Filter vs Depth Filter: Key Differences
Comparison Dimension | Membrane Filter | Depth Filter |
Filtration Type | Surface filtration | Depth filtration |
Retention Mechanism | Absolute-rated micropores | Multi-layer gradient pores |
Filtration Precision | High (microorganism control) | Nominal (large particle removal) |
Dirt-Holding Capacity | Low | High |
Service Life | Shorter | Longer |
Integrity Testing | Yes | No |
Cost | Higher | Lower |
Best Applications | Final filtration, sterile applications | Pre-filtration, high particle loads |
Typical Applications: When to Use Which?
✅ Ideal for Membrane Filter:
● Final-stage filtration in pharmaceutical manufacturing
● High-purity filtration in food & beverage industries
● Ultrapure water filtration in microelectronics
● Sterile filtration in drinking water systems
✅ Ideal for Depth Filter:
● Pre-treatment in reverse osmosis (RO) systems
● Coarse filtration of chemical solutions
● Removing particulates in industrial cooling water
● Primary filtration of raw drinking water sources
Benefits of Combining Both Filters
Using Depth Filters and Membrane Filters together maximizes system performance:
● Depth Filter removes large particles, reducing membrane clogging
● Membrane Filter ensures final-stage high-precision filtration
● Reduces overall operating costs
● Extends system lifespan
● Enhances filtration stability and output quality
Conclusion & Selection Tips
● Choose Membrane Filters when your process demands high microbial retention and precision.
● Opt for Depth Filters when handling highly contaminated liquids in pre-filtration stages.
● In most industrial applications, a combined system offers the best balance of performance and cost-effectiveness.
AAL Filter Product Recommendations
AAL Filter offers a complete range of high-quality cartridges, covering everything from coarse to final filtration stages:

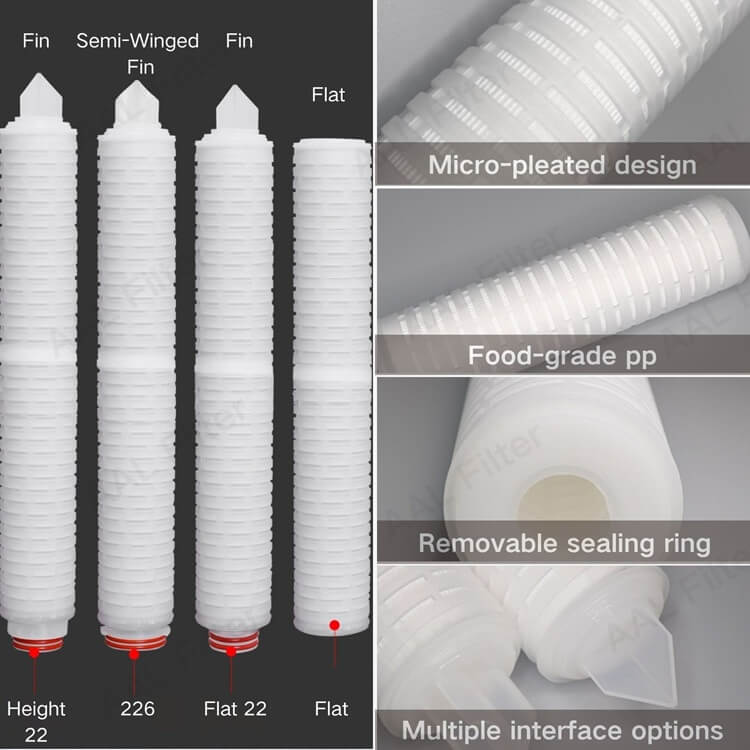

✅ Membrane Filters (PES, PTFE, PVDF, Nylon):
● PES Pleated Membrane Filter Cartridge
High-precision, hydrophilic PES media with low protein-binding. Suitable for injections, biologics, fermentation fluids. Fully integrity-testable.
● PTFE Hydrophobic Membrane Filter Cartridge
High chemical resistance, ideal for gas filtration, corrosive fluids, and sterile venting in pharmaceuticals, semiconductors, and chemical industries.
● Nylon Membrane Filter Cartridge
Naturally hydrophilic and mechanically strong. Used in drinking water systems, electronics cleaning liquids, lab filtration.
● PVDF Membrane Filter Cartridge
Excellent thermal stability and broad chemical compatibility. Suitable for food & beverage, ultrapure water, and specialized applications.

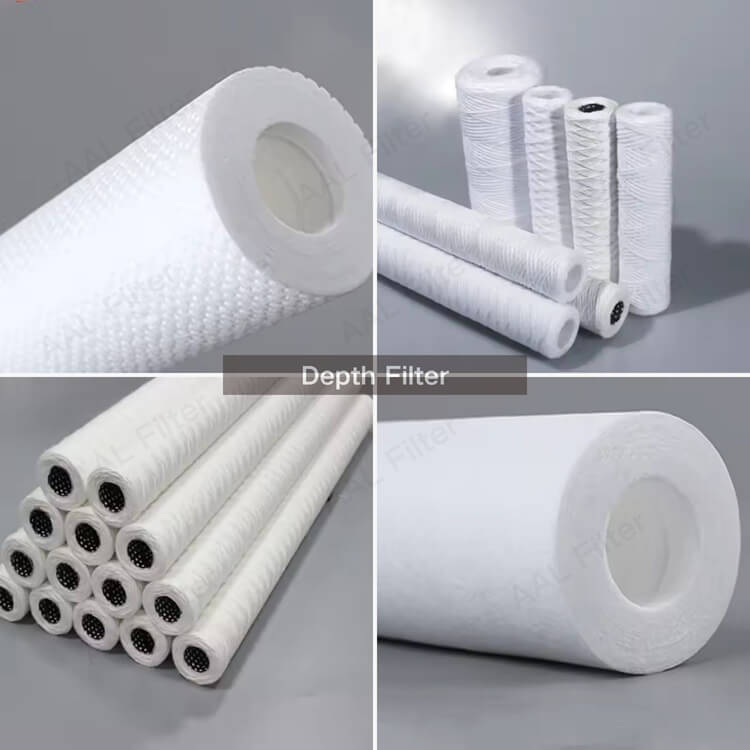

✅ Depth Filters (Melt-blown, String Wound, Pleated Depth):
● Melt Blown Filter Cartridge
Gradient pore structure for excellent dirt capacity. Ideal for RO pre-treatment, chemical cleaning, and industrial water.
● String Wound Filter Cartridge
Withstands high temperature and pressure, effective for coarse filtration in food, petrochemical, and metal processing.
● Pleated Depth Filter Cartridge
Combines depth filtration with high surface area. Used in critical process filtration requiring stable flow and dirt capacity.
All AAL cartridges support:
● Supports multiple end cap configurations, such as DOE, 222/Flat, 226/Fin, and custom designs tailored to your application requirements.
● Custom lengths (5"–80") and micron ratings (0.1–100μm)
● OEM branding, bulk customization, global shipping services
Frequently Asked Questions (FAQ)
🅰️Can I use a Membrane Filter alone for water treatment?
Not recommended. Membrane Filters have limited dirt-holding capacity and are better used after pre-filtration.
🅰️Can Depth Filters replace Membrane Filters?
No. Depth Filters are unsuitable for applications requiring microbial removal or high precision.
🅰️When should I replace a filter cartridge?
● Depth Filters: Watch for pressure drop, discoloration, or reduced flow.
● Membrane Filters: Look for rising pressure, failed integrity test, or poor filtrate quality.
🅰️Is a Membrane Filter the same as an RO membrane?
No. Membrane Filters are pleated microfiltration cartridges, while RO membranes are used in reverse osmosis systems with different mechanisms and applications.
🅰️How do I combine the two filter types correctly?
Recommended setup:
1️⃣Depth Filter →2️⃣Membrane Filter
This configuration ensures optimal cost efficiency and filtration quality.
