Real Case Studies from Power Plants, Desalination and Heavy Industry

In industrial water treatment systems, 40-inch filter cartridges have long been the industry standard. However, in high-flow applications such as power plant condensate polishing, large-scale seawater desalination, and heavy industrial cooling water systems, 70-inch string wound filter cartridges are increasingly becoming the preferred choice.

The reason is simple: as system flow rates continue to increase, filtration performance is no longer determined solely by micron rating. Reliability, maintenance efficiency, downtime costs, and overall system design have become equally important.

This article explores why many industrial facilities are adopting 70-inch string wound filter cartridges and how they help solve common challenges in large-scale filtration systems.

The Hidden Limitations of Multiple 40-Inch Filter Cartridges

For many industrial filtration systems, 40-inch cartridges remain the most common configuration. However, when higher filtration capacity is required, multiple cartridges are often installed within larger housings, increasing the complexity of maintenance and operation.

Leakage and Bypass Risks

Every additional connection point within a filtration system introduces a potential failure point.

Under demanding operating conditions such as:

· Water hammer

· Pressure fluctuations

· Continuous operation

· High differential pressure

seals and connections may become vulnerable over time. Any bypass of unfiltered liquid can compromise downstream equipment and overall process performance.

Higher Maintenance and Downtime Costs

Large industrial facilities often operate hundreds of filter elements simultaneously.

Replacing large numbers of shorter cartridges requires:

· More labor

· Longer maintenance windows

· Increased installation time

· Greater risk of installation errors

For facilities where production interruptions are costly, reducing maintenance time becomes a significant priority.

Reduced Structural Integrity

Shorter cartridge assemblies may perform well under normal conditions, but demanding applications often expose them to sudden pressure surges and high flow rates.

In these situations, structural strength becomes critical to maintaining filtration reliability and preventing unexpected failures.

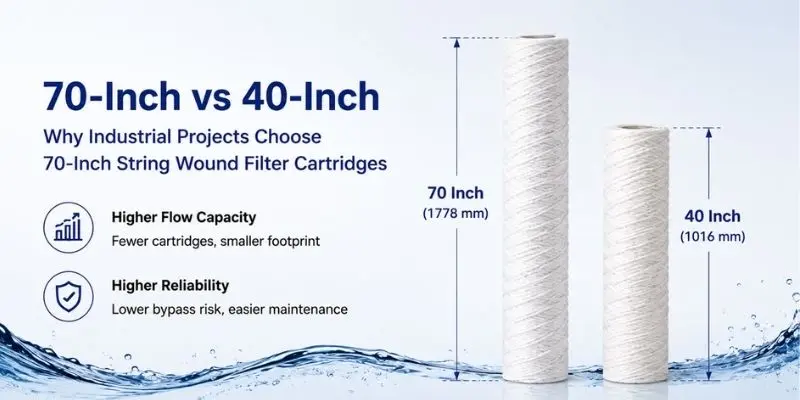

Why a Single 70-Inch String Wound Cartridge Makes a Difference

As industrial filtration systems continue to increase in size and flow capacity, many engineers are re-evaluating the limitations of traditional 40-inch filter cartridges.

Rather than relying on a larger number of shorter elements, a single 70-inch string wound filter cartridge offers a more efficient approach for high-flow applications. By reducing the number of filter elements required within a housing, it helps simplify maintenance, improve system reliability, and increase dirt-holding capacity.

These advantages have made 70-inch string wound filter cartridges a preferred choice in several demanding industries, including power generation, seawater desalination, and heavy industrial water treatment.

The following case studies illustrate how different industries utilize 70-inch filter cartridges to address their specific filtration challenges.

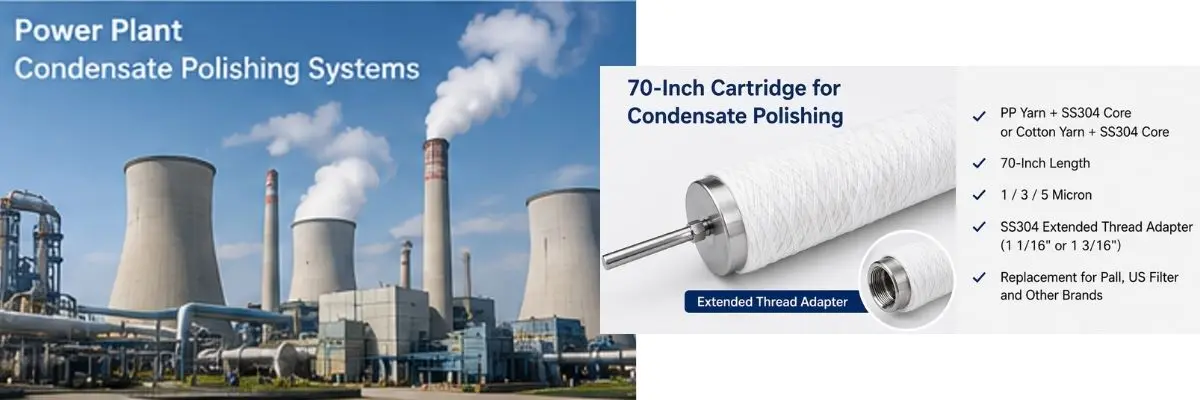

Case Study 1: Power Plant Condensate Polishing Systems

Industry Challenge

Whether in nuclear power plants or large thermal power stations, boiler feed water purity requirements are extremely stringent. Even trace levels of suspended solids can cause corrosion, scaling, or damage to boilers and turbines.

At the same time, condensate polishing systems operate with:

· Extremely high flow rates

· Continuous operation

· Water temperatures typically ranging from 60°C to 120°C

· High differential pressure conditions

Under these demanding conditions, filter cartridges must maintain structural integrity and consistent filtration performance throughout their service life.

Recommended Filtration Solution

For condensate polishing applications, we typically recommend:

· Polypropylene yarn + SS304 core

· Cotton yarn + SS304 core

· 70-inch length

· 1 μm, 3 μm, or 5 μm filtration ratings

· 1 1/16" Extended Thread Adapter

· 1 3/16" Extended Thread Adapter

· Replacement for Pall®, US Filter®, and other common power plant specifications

Key Benefits

· Excellent resistance to high differential pressure

· Superior stability under water hammer conditions

· Reduced bypass risk compared with multi-section cartridge assemblies

· Long service life in condensate polishing systems

· Compatible with many existing power plant filter housings

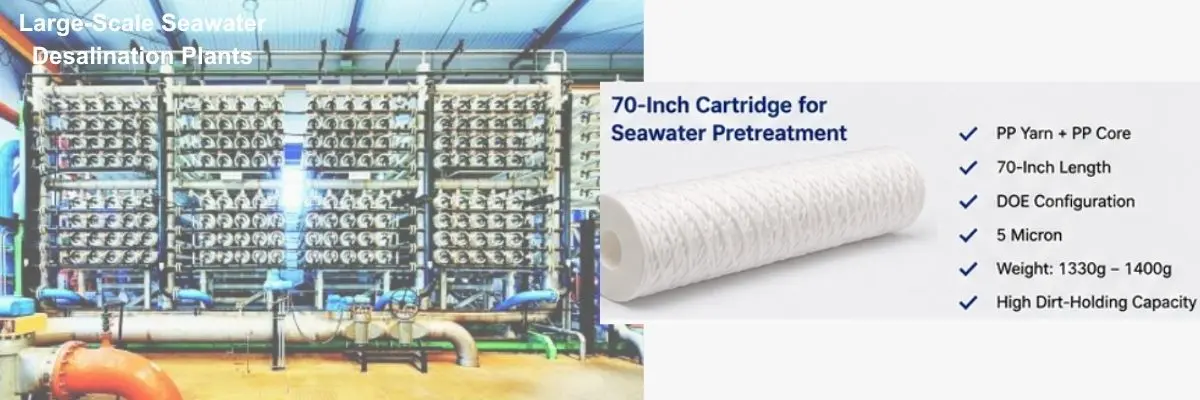

Case Study 2: Large-Scale Seawater Desalination Plants

Industry Challenge

While 50-inch filter cartridges are widely used in seawater desalination systems, ultra-large desalination facilities producing tens of thousands of cubic meters of water per day often face additional engineering challenges.

To reduce the overall footprint of security filter systems, engineering contractors increasingly specify 70-inch cartridges instead of traditional 50-inch elements.

Using longer cartridges allows designers to:

· Reduce the number of filter elements required

· Minimize housing size

· Lower stainless steel consumption

· Optimize installation space within the pretreatment system

These advantages become particularly important in large-scale desalination projects throughout the Middle East, Mediterranean region, and Caribbean markets.

Recommended Filtration Solution

For seawater pretreatment applications, we typically recommend:

· Polypropylene yarn + PP core

· 70-inch length

· DOE configuration

· 5 μm filtration rating

· Cartridge weight controlled between 1330–1400 g

· High dirt-holding capacity design

Key Benefits

· Higher contaminant retention capacity

· Reduced cartridge replacement frequency

· Smaller security filter footprint

· Lower overall system investment

· Better protection for downstream RO membranes

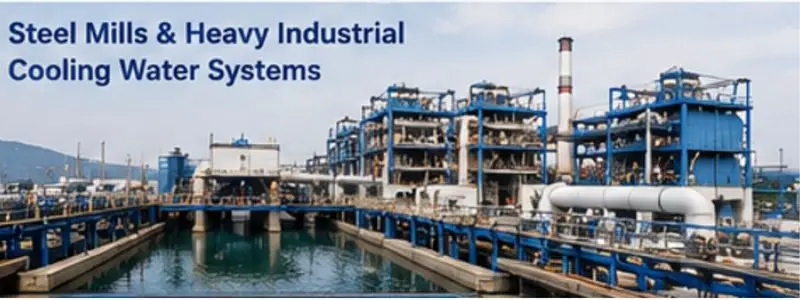

Case Study 3: Steel Mills and Heavy Industrial Cooling Water Systems

Industry Challenge

Cooling water systems in steel mills and heavy industrial facilities handle extremely large water volumes, often reaching several thousand cubic meters per hour.

These systems typically contain:

· Iron particles

· Rust

· Scale

· Suspended solids

Frequent replacement of shorter cartridges results in significant labor costs, maintenance downtime, and cartridge consumption.

For these applications, filtration systems require maximum dirt-holding capacity and long operating cycles to remain economical.

Recommended Filtration Solution

For cooling water and process water filtration, we typically recommend:

· Polypropylene yarn + PP core

· Polypropylene yarn + SS304 core

· 70-inch length

· 25 μm, 50 μm, or 100 μm filtration ratings

· High dirt-holding capacity design

· Suitable for high-flow industrial filtration systems

Key Benefits

· Exceptional dirt-holding capacity through depth filtration

· Longer filtration cycles

· Reduced cartridge consumption

· Lower maintenance labor costs

· Improved overall operating efficiency

Cost-Benefit Analysis: 70-Inch vs Multiple 40-Inch Cartridges

When evaluating industrial filtration systems, the purchase price of a filter cartridge is only one part of the equation. Maintenance labor, downtime, replacement frequency, and system reliability often have a much greater impact on long-term operating costs.

The following comparison highlights the advantages of a 70-inch string wound filter cartridge in high-flow industrial applications.

For facilities operating around the clock, reducing maintenance frequency and minimizing unplanned downtime can deliver significant cost savings over the life of the filtration system.

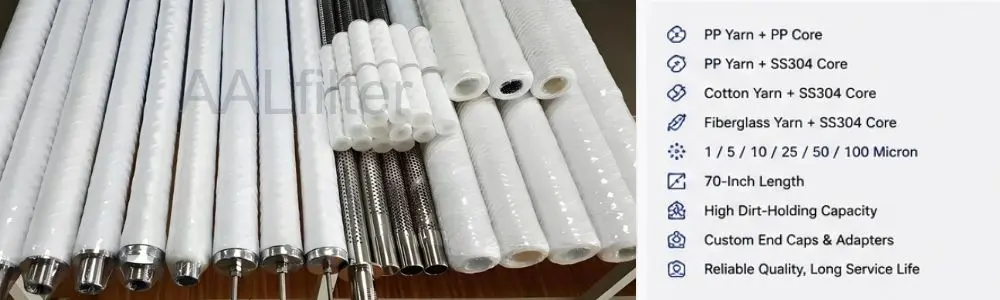

Key Features of Our 70-Inch String Wound Filter Cartridge

Designed for demanding industrial applications, our 70-inch string wound filter cartridges combine depth filtration performance with high structural strength and long service life.

Available Configurations

· Polypropylene yarn + PP core

· Polypropylene yarn + SS304 core

· Cotton yarn + SS304 core

· Fiberglass yarn + SS304 core

Available Micron Ratings

· 1 μm

· 5 μm

· 10 μm

· 25 μm

· 50 μm

· 100 μm

Key Advantages

· One-piece 70-inch construction

· Cartridge weight controlled between 1330–1400 g

· High dirt-holding capacity

· Excellent depth filtration performance

· Superior resistance to water hammer

· Suitable for high-flow industrial filtration systems

· Available in various end cap and adapter configurations

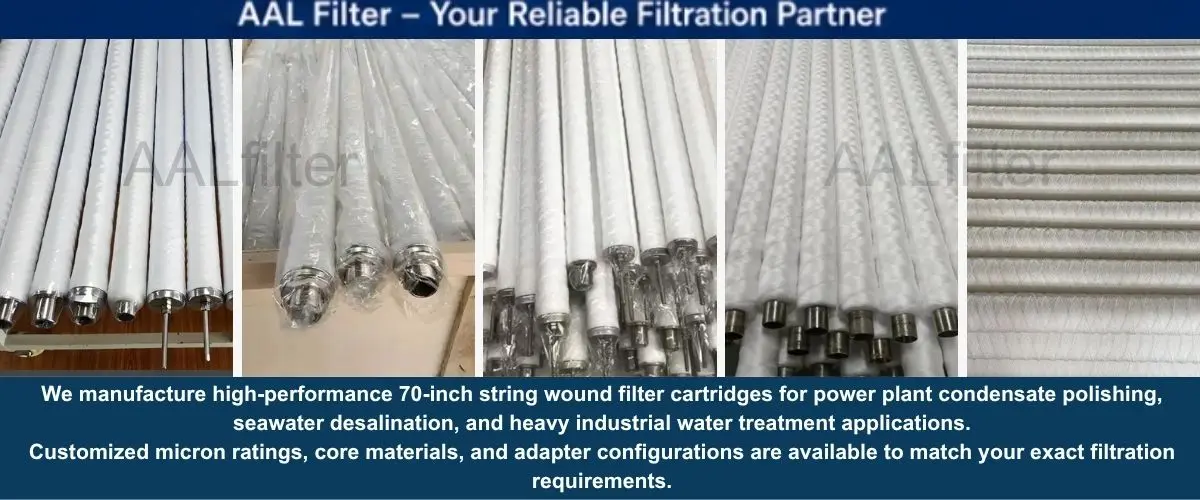

Looking for a Reliable 70-Inch String Wound Filter Cartridge Supplier?

Whether you operate a power plant condensate polishing system, a large-scale seawater desalination facility, or a heavy industrial cooling water system, selecting the right filtration solution can significantly improve system reliability while reducing operating costs.

Our engineering team can provide customized 70-inch string wound filter cartridges tailored to your application requirements, including:

· Micron ratings

· Core materials

· Adapter configurations

· Replacement specifications for existing systems

If you are looking for a reliable replacement for Pall®, US Filter®, or other industrial filter cartridges, contact us today for technical support, samples, and quotations.
