🌊 Introduction: Why Pretreatment Matters in Seawater RO Desalination
Reverse osmosis (RO) is the core of seawater desalination systems, but pretreatment is what ensures long-term reliability, membrane protection, and consistent water quality. Without proper pretreatment, RO membranes suffer from biofouling, scaling, and frequent replacements, leading to higher operational costs and downtime.
This guide covers the main RO pretreatment processes used in seawater desalination, and explains how to select the right filter cartridges, filter bags, and FRP filter housings for optimal system performance.
⚙️ 1. Key Pretreatment Processes in Seawater Desalination
1.1 Coagulation, Flocculation & Dissolved Air Flotation (DAF)
uRemoves: Suspended solids, colloids, organic matter, algae
uEquipment: Coagulation/flocculation tanks, DAF units
uRole: Initial clarification of seawater before filtration
1.2 Multimedia Filtration (MMF)
uMedia: Quartz sand, manganese sand, activated carbon
uRemoves: Finer particles, iron, manganese, organics
uRole: Reduces turbidity, chlorine, and color to protect microfilters
1.3 Microfiltration – Final Barrier Before RO
uTarget: Particles ≥ 1–5 microns
uRequirement: Silt Density Index (SDI) < 3
uRole: Extends RO membrane lifespan
🧃 2. High-Efficiency Filter Elements for RO Pretreatment
🔸 2.1 Melt Blown Filter Cartridges
lMaterial: Polypropylene
lFeatures: Graded pore structure for effective depth filtration
lRecommended Sizes: 40” and 50”
lMicron Ratings: 1, 5, 10, 20 μm
lHousing Type: FRP depth filter housings
lIdeal for: Standard flow seawater RO pretreatment systems
🔸 2.2 String Wound Filter Cartridges
lMaterial Options: Polypropylene (PP), cotton wound filter, glass fiber
lFeatures: Excellent temperature and chemical resistance
lRecommended Sizes: 50” and 70”, typically with PP media
lUse Case: Harsh environments with high salinity or variable feedwater
lIdeal for: Industrial seawater RO pretreatment requiring durability
🔸 2.3 High Flow Filter Cartridges
lOuter Diameter: 6” large-diameter design
lRecommended Sizes: 40”and 60”
lFeatures: High throughput with reduced filter quantity and smaller footprint
lHousing Type: FRP high flow filter systems (vertical or horizontal)
lIdeal for: Compact systems and large-flow desalination projects
🔸 2.4 PP Filter Bags (Size #2)
lMaterial: Polypropylene
lMicron Ratings: Available from 1 to 100+ μm
lApplication: Coarse filtration in RO pretreatment
lHousing Type: FRP bag filter housings (single or multi-bag)
lBenefits: Low cost, quick replacement, high dirt-holding capacity
🧱 3. FRP Filter Housing Systems for Seawater Applications
Since seawater is highly corrosive, stainless steel housings often fail over time. That’s why FRP (Fiber Reinforced Plastic) is the preferred material in seawater RO pretreatment systems.
✅ 3.1 FRP High Flow Filtration Systems
lUses: High Flow Filter Cartridges
lModels: Vertical (VRP), Multi-core (MRP), Horizontal type
lBenefit: Compact, modular, space-saving
✅ 3.2 FRP Depth Filtration Systems
lUses: Melt Blown or String Wound Cartridges
lConfigurations: 5, 12, 22 rounds × 20", 30", 40"
lSuitable for: Standard flow RO pretreatment

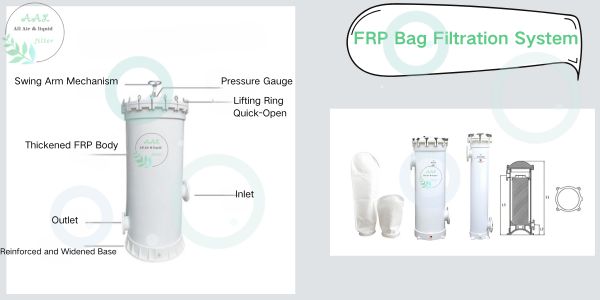

✅ 3.3 FRP Bag Filtration Systems
lUses: Size #2 PP Filter Bags
lSizes: 1 to 7 bag configurations
lBenefit: Flexible, cost-effective, ideal for coarse filtration
🛠️ 4. System Design Tips for Seawater RO Pretreatment
üConsider Flow Rate Requirements: Select filter size and configuration accordingly
üSpace Optimization: Use horizontal FRP housings or connect multiple units in parallel
üEase of Maintenance: Choose modular systems with easy cartridge/bag replacement
✅ Conclusion: Efficient RO Pretreatment Starts with the Right Filtration Setup
To ensure successful seawater desalination, pretreatment is key. With high-quality filter cartridges, filter bags, and FRP housings, you can greatly extend RO membrane life, reduce fouling, and improve system efficiency.
📞 Need the right filters for your seawater RO pretreatment system?
We offer a complete range of high-performance filtration solutions—perfect for seawater desalination pretreatment.
👇 (Below are some of our most recommended products for RO pretreatment)
👉 Want to learn the difference between melt blown and string wound filters?
Check out our detailed comparison: String Wound Filter vs Meltblown
