Commercial Reverse Osmosis Systems: The Heart of Modern Desalination Plants

🌊 I. What is a Commercial Reverse Osmosis System?

A commercial reverse osmosis system is an advanced water purification solution that uses semi-permeable membranes to remove salts and impurities from raw water sources, including seawater. It plays a vital role in various commercial desalination systems, providing high-purity water for industrial, municipal, and commercial use.

How it works:

lHigh pressure is applied to saline or contaminated water.

lOnly water molecules pass through the RO membrane (~0.0001 microns).

lContaminants such as salts, bacteria, heavy metals, and organics are rejected.

RO technology is the opposite of natural osmosis, making it ideal for RO desalination plants producing ultra-pure "product water."

Key Advantages:

lHigh desalination rate (>98%)

lNo chemical additives required

lEffective removal of bacteria and viruses

lHigh automation and ease of maintenance

lFlexible integration with pre- and post-treatment units

🌐 II. Why Choose a Commercial Reverse Osmosis System for a Desalination Plant?

As global freshwater scarcity intensifies, commercial desalination systems have become essential. Among all technologies, commercial reverse osmosis systems are the most energy-efficient and widely adopted for seawater treatment.

Benefits for Desalination:

lConverts seawater into potable or industrial water

lDelivers stable water quality

lReduces operating costs

lPowers critical sectors: energy, pharmaceuticals, electronics, food & beverage

With the right pretreatment and filtration, RO desalination plants can operate reliably even under extreme feedwater conditions.

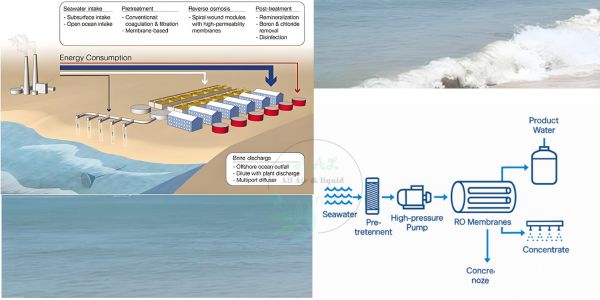

⚙️ III. How Does RO Work in Seawater Desalination?

In a commercial RO desalination plant, the process typically includes:

1. Pretreatment

Removes suspended solids and contaminants that could foul the membranes.

2. High-Pressure Pumping

Applies 50–80 bar pressure to push seawater through membranes.

3. Membrane Separation

• Product water: Clean water that passes through the membrane

• Brine: Salt-concentrated water that is discharged

4. Energy Recovery

Pressure exchangers reuse energy from brine, improving efficiency.

5. Post-Treatment

Product water is conditioned with pH adjustment, disinfection, or remineralization.

🛡 IV. Importance of Pretreatment Filters in RO Desalination Plants

Membrane fouling is the main operational challenge in RO systems. That’s why effective pretreatment filtration is critical.

🔧 Recommended Commercial Water Filters:

lString Wound Filters: Cost-effective, robust, ideal for large particulates

lMelt Blown Filters: Depth filtration, excellent fine particle retention

lHigh Flow Filters: Suitable for large-scale commercial desalination systems

These filters help:

lReduce SDI (Silt Density Index)

lPrevent membrane fouling

lExtend system lifespan

We also supply stainless steel and FRP filter housings tailored for RO pretreatment needs.

🔍 V. Reverse Osmosis vs. Ultrafiltration (UF)

Application Tip:

uUse UF before RO to remove large particles and protect membranes.

uUse RO for high-purity or desalinated water.

🔬 VI. Reverse Osmosis vs. Nanofiltration (NF)

Best Practice: Combine NF + RO to:

uRemove organics and hardness upfront

uReduce RO energy load and fouling

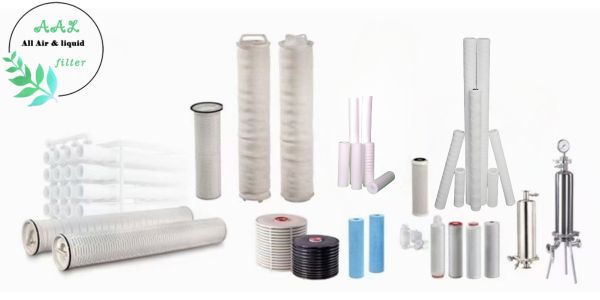

✅ Optimize Your RO Desalination Plant with the Right Filters

Choosing the right pretreatment is essential for a successful commercial reverse osmosis system for desalination plant. We offer:

String Wound Filter Cartridges: First-line defense against sediment and rust

Melt Blown Filter Cartridges: High dirt-holding, stable performance

High Flow Filter Cartridges: Ideal for high-volume, low-pressure-loss filtration

Filter Housings: Stainless steel or FRP, customized to system needs

📞 Ready to Upgrade Your Commercial RO System?

Whether you're designing a new RO desalination plant or upgrading an existing one, we provide expert technical support and high-performance filter solutions.

👉 Contact us for a quote or consultation
👉 Explore our pretreatment filter products to enhance your system’s performance

❓ Frequently Asked Questions (FAQ)

Q1: How often should pretreatment filters be replaced in RO desalination systems?
A: Replacement frequency depends on feedwater quality and flow rate. In high-salinity or turbid seawater, pretreatment filters may need changing every few days or weeks. Monitoring pressure drop is key to determining when replacement is needed.

Q2: What's the difference between ultrafiltration (UF), nanofiltration (NF), and reverse osmosis (RO)?
A: UF removes large particles and bacteria but cannot desalinate. NF removes divalent salts and organics but only partially desalinates. RO removes nearly all dissolved substances, making it essential for seawater desalination.

Q3: How do you clean RO membranes in a commercial reverse osmosis system?
A: RO membranes should be chemically cleaned when performance drops (e.g., reduced permeate flow, increased pressure drop, or lower salt rejection). The cleaning process includes:

Identify the fouling type:

vScaling (from CaCO₃, CaSO₄, etc.)

vOrganic fouling (from biofilm or natural organics)

vColloidal or particulate fouling

vBiological fouling

Select suitable cleaning chemicals:

vAcidic cleaners (pH 2–4) for scale removal

vAlkaline cleaners (pH 10–12) for organics and biofilm

vBiocide (if bacteria growth is detected)

Perform cleaning-in-place (CIP):

vFlush the system with clean water

vCirculate the cleaning solution at low pressure and moderate temperature

vRinse thoroughly before restarting

Regular cleaning can extend membrane life and ensure consistent system output. It's also important to maintain effective pretreatment, as proper use of filters (e.g., string wound, melt blown, high flow filters) minimizes fouling.
