How Automatic Backwash Filters Improve Industrial Filtration

1. What is an Auto Backwash Filter?

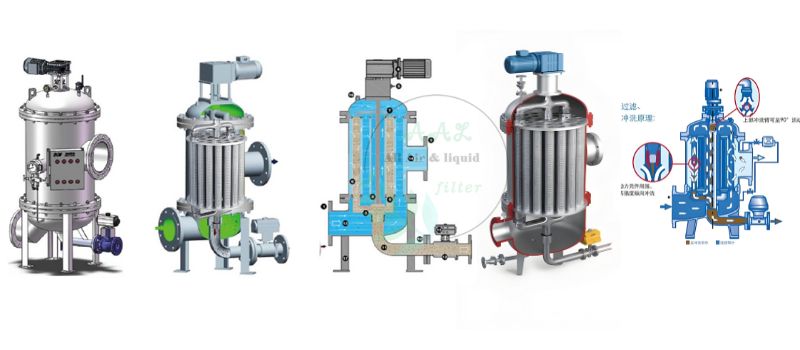

An Auto Backwash Filter, also known as an Automatic Backwash Water filter housing, is a self-cleaning filtration system designed to efficiently remove impurities from liquids without manual intervention.

To maintain high water quality while minimizing maintenance costs.

These Automatic Backwash Filters are widely used:

Industrial Water Treatment – Ensures high-quality water for manufacturing processes.

Municipal Water Supply – Removes sediments and particulates from drinking water sources.

Agricultural Irrigation – Prevents clogging of drip and sprinkler systems.

Cooling Systems – Maintains clean circulating water to prevent scaling and corrosion.

Building Water Supply – Protects pumps and plumbing from sediment buildup.

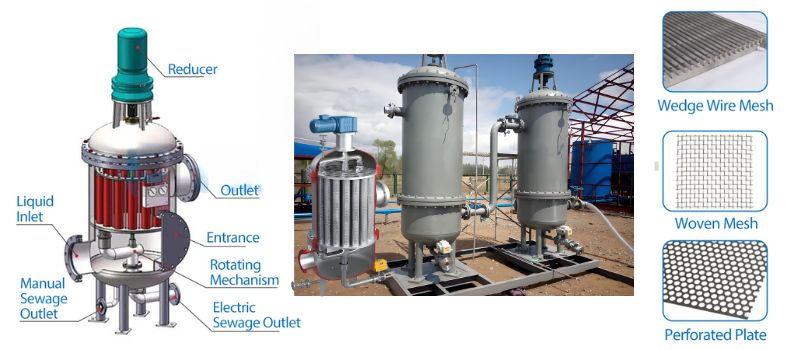

2. Key Components of an Automatic Backwash Water Filter

To understand its working principle, it is essential to examine the main components of an automatic backwash filter:

①　Filter Element

The filter element is the core component of an Auto Backwash Filter, designed to trap solid particles and contaminants from water.

The effectiveness of Automatic Backwash Filters largely depends on the material and structure of the filter element.

The filter elements structure including wedge wire screens, woven mesh, and perforated plates. Each type offers different levels of filtration efficiency and structural strength, making them suitable for specific applications.

Common materials include:

Stainless Steel – Durable and corrosion-resistant.

Nylon – Lightweight and chemical-resistant.

Copper – Suitable for specialized applications.

The filtration rating typically ranges between 10 to 200 microns, depending on the application.

②　Filter Housing

The filter housing encloses and protects the filter element and other internal parts. It is usually made of:

Stainless Steel – Offers high strength and corrosion resistance.

Carbon Steel – Provides cost-effective durability.

Plastic – Used in low-pressure applications.

③　Backwash Mechanism

The backwash system is responsible for initiating the cleaning cycle when the filter becomes clogged. It consists of:

Backwash Arm – Rotates to remove debris from the filter surface.

Backwash Valve – Controls the flow of reverse water for cleaning.

Cleaning Motor – Powers the backwash mechanism.

④　Control System

The control system automates the backwashing process and includes:

Differential Pressure Sensor – Detects pressure build-up due to clogging.

Time Controller – Initiates cleaning at preset intervals.

Solenoid Valve – Controls the backwash flow activation.

⑤　Drain Outlet

During backwashing, the drain outlet expels the dislodged impurities, ensuring the filter remains clean and effective.

3. How Do Automatic Backwash Filters Work?

There are two basic types of backwashing filters: manual backwash filters and automatic backwash filters.

Manual Backwash Filter: Unlike Automatic Backwash Water Filters, Manual Backwash Filters require users to periodically initiate a reverse flushing program manually. This makes Auto Backwash Filters a better choice for industries requiring continuous water filtration without manual intervention.

Automatic Backwash Filter : achieve seamless automated cleaning. They utilize a small amount of pre-filtered clean liquid to perform high-pressure reverse flushing on the filter screen, effectively removing accumulated contaminants such as dirt, soot, and other particulates

This design eliminates the drawbacks of manual operation—no cartridge replacement or human cleaning is required

These filters are characterized by high operational safety and minimal maintenance demands due to their self-cleaning mechanisms.

The filtration process operates in two main stages:

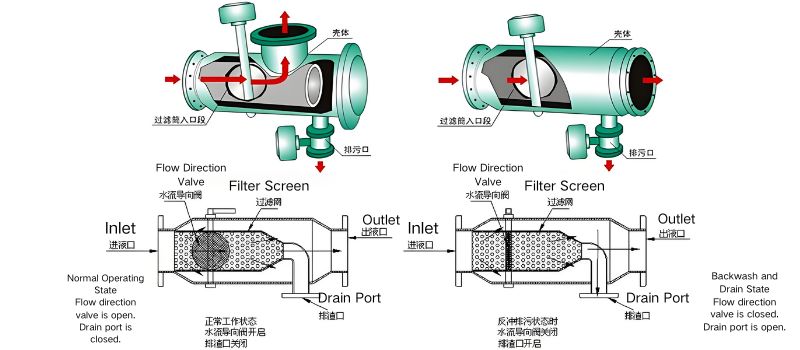

①　Normal Filtration Phase

Raw water enters the filter housing through the inlet.

Water passes through the filter element, where suspended solids and impurities are trapped.

Clean water exits through the outlet, leaving contaminants behind.

Over time, debris accumulates, increasing the differential pressure across the filter.

②　Differential Pressure Detection

A pressure difference sensor continuously monitors the pressure drop.

When the pressure exceeds a preset threshold, the system triggers the backwash cycle.

③　Backwashing Phase

The backwash valve opens, allowing clean water to flow in reverse through the filter.

The backwash arm rotates, dislodging accumulated debris from the filter surface.

The loosened contaminants exit via the drain port, restoring the filter’s performance.

This process ensures uninterrupted filtration as part of the filter continues operating.

④　Resumption of Normal Operation

Once cleaning is complete, the system returns to normal filtration mode.

The cycle repeats automatically based on pressure levels or scheduled intervals.

4. Backwash Filter vs. Self-Cleaning Filter: Which One is Better?

5. Why Choose an Automatic Backwash Water Filter?

Automatic backwash filters offer significant operational and cost-saving benefits, making them ideal for various industrial applications. Their key advantages include:

①　High Efficiency and Cost Savings

· Eliminates the need for manual disassembly and cleaning.

· Reduces labor costs and operational downtime.

· No disposable filter elements, lowering waste treatment costs.

· Minimal maintenance requirements, reducing long-term expenses.

②　Extended Equipment Lifespan

· Prevents excessive buildup that could damage the filter.

· Enhances the service life of components by ensuring consistent and thorough cleaning.

· Provides reliable system protection, reducing wear and tear on pumps and pipelines.

③　Continuous and Reliable Operation

· Self-cleaning mechanism allows uninterrupted filtration.

· Ideal for industries requiring 24/7 operation with minimal human intervention.

· Ensures stable system performance with automated backwashing cycles.

④　Environmental and Performance Benefits

· Supports clean combustion in industrial processes, reducing emissions.

· Improves filtration efficiency for cleaner water and air.

· Prevents sediment buildup, enhancing overall system reliability.

⑤　Wide Application Range

· Effective in treating river water, groundwater, cooling water, and wastewater.

· Suitable for diverse industries, including petrochemical, food & beverage, pharmaceuticals, and municipal water treatment.

· Helps protect and extend the lifespan of industrial water systems, high-rise building plumbing, and agricultural irrigation networks.

6. Top Industrial Applications of Auto Backwash Filters

①　6.1 Industrial Circulating Cooling Water

Removes suspended solids to prevent scaling in heat exchangers.

Enhances cooling efficiency and reduces equipment wear.

②　6.2 Municipal Water Supply

Filters out rust, sediment, and organic matter before distribution.

Ensures clean and safe drinking water for residents.

③　6.3 Agricultural Irrigation Systems

Prevents clogging in drip irrigation and sprinkler systems.

Enhances irrigation efficiency and promotes healthy crop growth.

④　6.4 High-Rise Building Water Systems

Protects pumps and pipelines from sediment accumulation.

Reduces maintenance costs and improves system longevity.

7. How to Select the Best Automatic Backwash Filter?

①　7.1 Filtration Accuracy Selection

Determine the micron rating based on water quality requirements.

Fine filtration requires frequent backwashing but offers better impurity removal.

②　7.2 Capacity and Flow Rate

Ensure the filter’s processing capacity matches the water demand.

Oversized or undersized filters may lead to inefficiencies.

③　7.3 Material Selection

Stainless steel for high-pressure and corrosive environments.

Plastic for lightweight and cost-effective applications.

④　7.4 Structural Design and Installation Considerations

Choose compact designs for space-limited installations.

Opt for easy-maintenance models with accessible components.

8. FAQ: Common Questions About Automatic Backwash Filters

☀️ Q: What to do if the filter media is clogged?

A:

Increase the backwash frequency to dislodge debris via high-pressure reverse flow.

For severe blockages, replace the filter media (prioritize materials with higher fouling resistance).

If caused by excessive impurities, switch to larger-pore media (e.g., upgrade from 50 to 100 microns).

☀️ Q: How to resolve valve leaks, damage, or blockages?

A:

Inspect the valve:

Leaks: Check seals for aging and tighten bolts.

Blockages: Disassemble and clean internal debris (e.g., sediment, scale).

Damage: Replace with an identical valve model.

Manually initiate a backwash cycle post-repair to verify functionality.

☀️ Q: How to address seal or gasket leaks?

A:

Shut down the system, depressurize, and disassemble the leaking component.

Replace damaged seals, ensuring proper alignment and even bolt tightening.

Test for leaks using soapy water after restarting.

☀️ Q: How to calibrate an inaccurate differential pressure sensor?

A:

Calibration steps:

Disconnect power and compare readings with a calibrated pressure gauge.

Adjust via potentiometer or software parameters to correct deviations.

Replace the sensor if damaged, then recalibrate.

☀️ Q: How to troubleshoot motor/drive mechanism issues (noise, jamming)?

A:

Inspection steps:

Test motor winding insulation with a megohmmeter.

Check gears/belts for wear or misalignment.

Verify bearing lubrication (reapply grease per manual).

Conduct a no-load test after repairs before resuming operation.

☀️ Q: How to remove hard scale or biofouling on the filter screen?

A:

Shorten backwash intervals to prevent buildup.

Use compatible cleaning agents (e.g., citric acid for scale, sodium hypochlorite for biofilms), then activate an intensive rinse mode.

☀️ Q: How to optimize ineffective backwash cycles?

A:

Dynamically adjust intervals:

Reduce during poor water quality (e.g., from 4 to 2 hours).

Extend in low-temperature conditions to save energy.

Ensure minimum 30-second duration and design flow rate per cycle.

☀️ Q: How to handle system contamination (oils, chemicals)?

A:

Identify the source:

Inspect upstream pipelines for foreign substances.

Analyze water samples to determine contaminants.

Flush the system with compatible solvents and replace contaminated media/screens.

☀️ Q: How to mitigate faults caused by poor maintenance?

A:
Implement a standardized maintenance plan:

Daily: Log pressure differentials, flow rates, and instrument status.

Monthly: Clean sludge from drain valves and inspect seal elasticity.

Quarterly: Calibrate sensors and test motor insulation.

☀️ Q: How to correct installation errors?

A:

Verify against the manual:

Confirm inlet/outlet orientation.

Ensure vertical, unobstructed drainpipe alignment.

Check voltage compliance (e.g., 380V/50Hz).

Perform a no-load test post-reinstallation to validate stability.
