Strainer Basket Explained: Differences from Basket Strainer & Application Guide

In industrial filtration, strainer baskets and basket strainers are often mistaken for one another. While they sound similar, their functions and structures are distinctly different.

A simple analogy:
👉 Basket strainer = filter housing
👉 Strainer basket = filter element inside the housing

This article will provide a comprehensive breakdown of the strainer basket, including its definition, structure, advantages, and how it compares to a filter bag support basket. We’ll also guide you on how to choose the right type for your system.

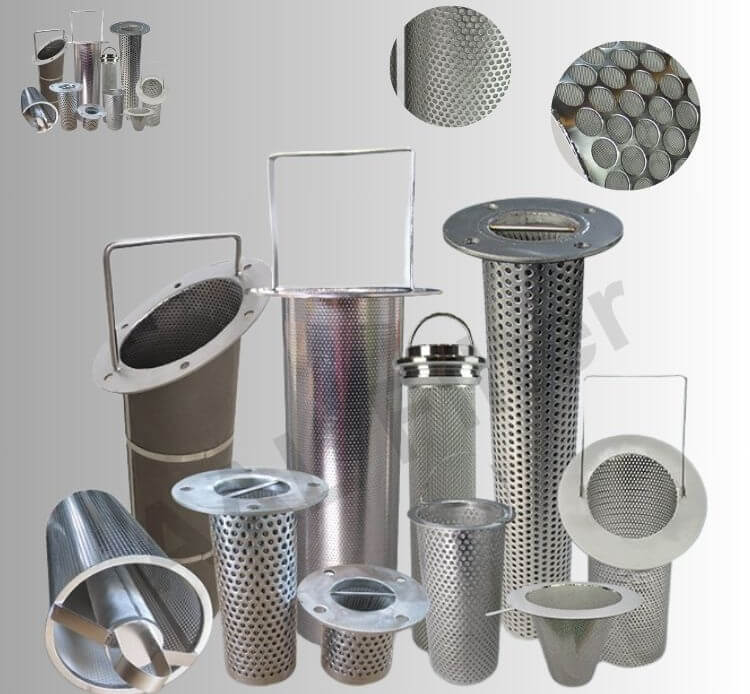

1. What Is a Strainer Basket?

A strainer basket is the core filtering component inside a basket strainer. Its primary role is to capture solid particles larger than the mesh openings, such as sand, rust, pipe scale, and other debris. It helps protect downstream equipment like pumps, valves, and flow meters.

Unlike the outer basket strainer, which is simply the vessel or housing, the strainer basket determines the filtration precision.

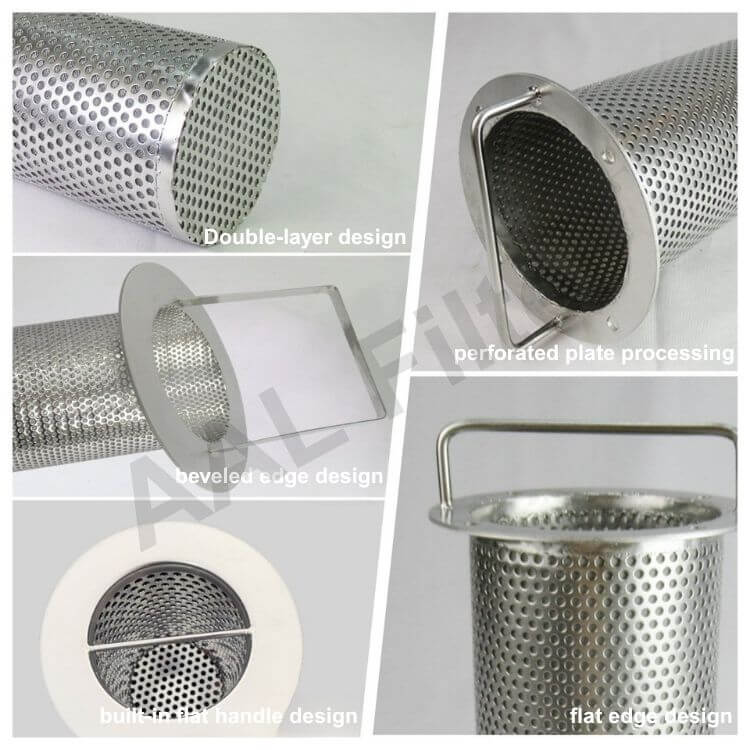

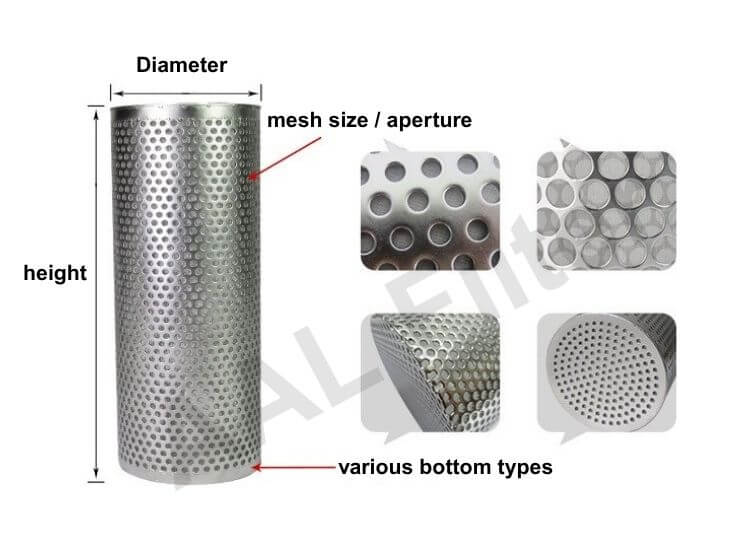

2. Structure & Classification

Strainer baskets come in a wide variety of structural designs and specifications to suit different filtration needs:

🔹By Layer Construction:

· Single-layer basket – basic structure for general-purpose applications

· Double-layer basket – added strength and durability for high-pressure systems

🔹By Mesh Size:

· Ranges from 5μm to 200μm

· Smaller mesh = higher filtration precision

🔹By Mesh Shape:

· Square mesh – strong and easy to clean

· Round (perforated) mesh – ideal for trapping larger particles

🔹By Top Design:

· Standard top – for standard vertical inlet/outlet designs

· Beveled top – for angled or offset inlet configurations

✅ AALFilter provides fully customizable strainer baskets, including size, mesh, material, and top design to meet unique system requirements.

3. When to Use a Strainer Basket?

Strainer baskets are ideal for coarse filtration – capturing visible particles in liquid or gas streams. For finer filtration (e.g., removal of microns and sub-micron particles), it’s best to use microfiltration (MF), ultrafiltration (UF), or reverse osmosis (RO) membranes as a complementary stage.

4. Key Advantages of Strainer Baskets

✅ Durability

Made of stainless steel or alloy materials, strainer baskets are robust, corrosion-resistant, and suitable for repeated use.

✅ Eco-Friendly

Unlike disposable filter cartridges, strainer baskets are reusable, reducing waste and environmental impact.

✅ Easy Maintenance

Simple structure allows for quick removal, cleaning, and reinstallation, minimizing downtime and labor costs.

✅ Highly Customizable

AALFilter offers bespoke strainer baskets to match specific operating conditions, including pressure, temperature, and chemical compatibility.

5. Strainer Basket vs. Filter Bag Support Basket

Understanding the difference between these two components is critical for selecting the right filtration system:

🛠️Conclusion: Use a strainer basket for standalone coarse filtration, and a support basket when using filter bags for fine filtration.

6. Common Applications of Strainer Baskets

Strainer baskets are widely used across various industries for liquid, gas, and steam filtration, including:

· Industrial liquids: cooling water, process fluids

· Pipeline systems: municipal water, natural gas

· Equipment protection: pumps, valves, flow meters

· Pre-filtration: in multi-stage filtration setups

7. How to Choose the Right Strainer Basket?

Choosing the right strainer basket is essential for system efficiency and equipment protection. Here’s what to consider:

· Particle Size

Match the mesh size to the particle size you want to remove (e.g., 100μm for large debris, 20μm for fine sand)

· Operating Conditions

Choose materials based on temperature, pressure, and chemical exposure (e.g., 304/316L stainless steel, Hastelloy, duplex steel)

· Inlet/Outlet Orientation

Select standard or beveled tops depending on the direction of flow and installation layout

· Need Customization?

AALFilter offers custom designs for non-standard housings or performance requirements

8. Conclusion: A Core Component of Coarse Filtration

Strainer baskets are the heart of the basket strainer system, directly responsible for capturing large particles and ensuring reliable operation of downstream equipment.

With the right design and specifications, a well-chosen strainer basket can prolong equipment lifespan, reduce downtime, and ensure smooth and cost-effective operations.

AALFilter provides expert consultation and custom manufacturing to help you select the most suitable strainer basket for your unique application.

📩Contact us today for technical support or a personalized quotation.

Frequently Asked Questions (FAQ)

Q1: How often should a strainer basket be cleaned?
🅰️Cleaning frequency depends on the contamination level and system pressure drop. In general, inspect and clean the basket every 1–3 months or when differential pressure rises significantly.

Q2: Can strainer baskets be used with oils or solvents?
🅰️Yes. Just ensure the material is compatible – for example, use 316L stainless steel or corrosion-resistant alloys for aggressive solvents or high-temperature oils.

Q3: Are strainer baskets interchangeable with Y-strainers?
🅰️No. Y-strainers and basket strainers are structurally and functionally different. Y-strainers feature a compact inline design, ideal for tight spaces and low debris loads. Strainer baskets, on the other hand, are used in basket strainers, offering easier maintenance and better performance for higher flow rates.
👉Curious about which one suits your system best? Read our full comparison: Basket Strainers vs Y-Strainers →
