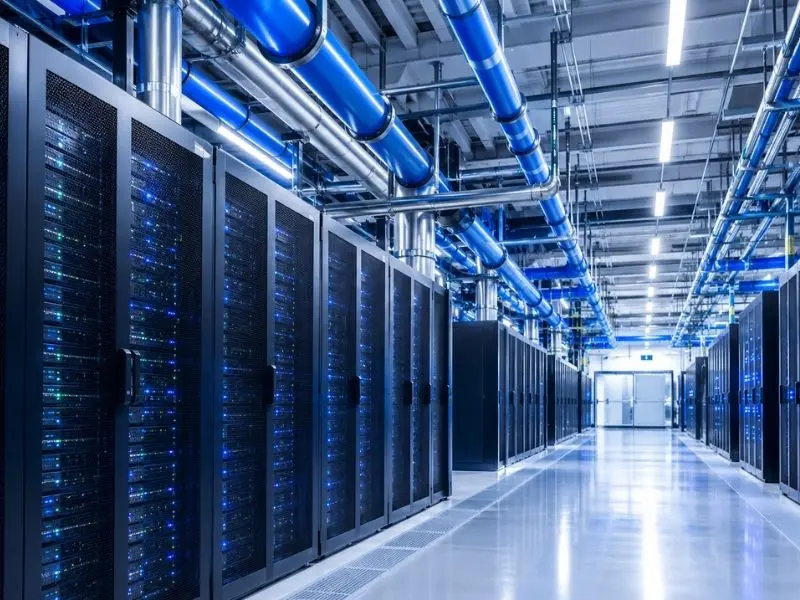

AI Is Driving Rapid Data Center Growth

Artificial intelligence is reshaping the data center industry.

The rapid growth of generative AI, large language models, GPU computing, and high-performance computing is driving the development of larger and more power-dense data centers. In the United States, there are now more than 4,000 data centers, including operational facilities and those under development.

Higher computing power also means higher heat loads. As a result, reliable cooling has become a critical part of modern data center infrastructure.

Water is an important part of many cooling systems. According to Lawrence Berkeley National Laboratory, U.S. data centers directly consumed approximately 17 billion gallons of water in 2023, while hyperscale data centers alone could consume 16–33 billion gallons annually by 2028.

As AI infrastructure continues to expand, maintaining clean and reliable cooling water is becoming increasingly important.

Why Does Data Center Cooling Water Need Filtration?

Cooling-water systems can accumulate or introduce:

· Suspended solids

· Rust and corrosion products

· Scale particles

· Pipe debris

· Silt and other contaminants

If these particles continuously circulate through the system, they can contribute to fouling of heat-transfer surfaces, increase maintenance requirements, and affect pumps, valves, heat exchangers, and other cooling equipment.

The U.S. Department of Energy identifies side-stream filtration as a method for continuously removing suspended solids, organics, and silt from recirculating cooling-water systems. This can help reduce fouling, scaling, and microbiological growth while protecting heat-transfer surfaces.

This creates a simple requirement:

Keep cooling water cleaner to help protect critical cooling infrastructure.

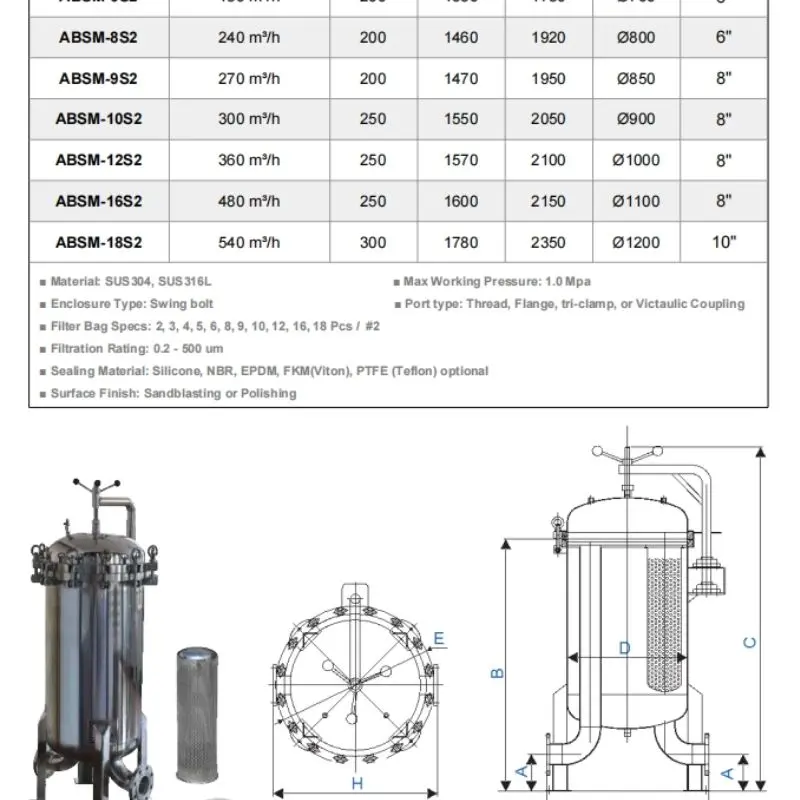

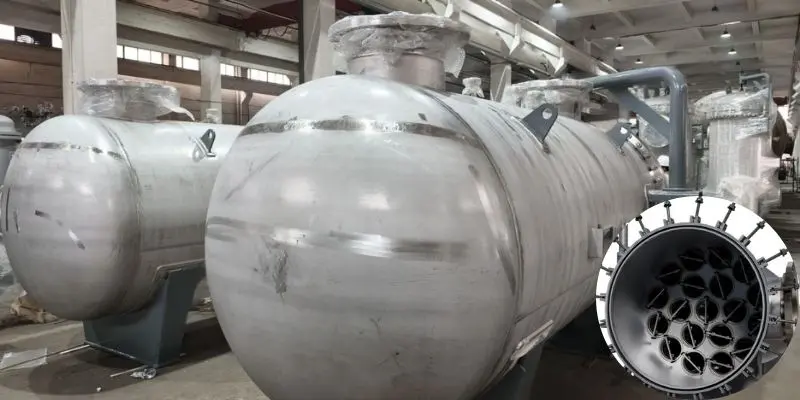

Stainless Steel Bag Filter Housing + Filter Bags

A stainless steel bag filter housing combined with replaceable filter bags provides a practical solution for removing suspended particles from data center cooling water.

The system can be used for suitable full-flow or side-stream filtration applications, depending on the cooling system design.

Cooling Water

↓

Stainless Steel Bag Filter Housing

↓

Filter Bag Captures Particles

↓

Cleaner Cooling Water

↓

Cooling System

Why Choose Stainless Steel?

Stainless steel provides good corrosion resistance and is less susceptible to rust contamination than conventional carbon steel.

Depending on water chemistry and operating conditions, 304 or 316L stainless steel can be selected for the housing.

For data center applications, this helps provide a durable and cleaner filtration vessel for long-term cooling-water service.

Key Advantages of Bag Filtration for Data Centers

1. Flexible Filtration: 1–200 μm

Filter bags are available in different filtration ratings, typically from approximately 1 to 200 μm.

The appropriate micron rating can be selected according to:

· Particle size

· Water quality

· Flow rate

· Required equipment protection

· Filter bag service life

This provides flexibility for different cooling-water filtration requirements.

2. Customized for Different Flow Rates

Data centers can have significantly different cooling-water flow requirements.

The bag filter housing can be configured according to the required capacity, including:

· Single-bag or multi-bag designs

· Different filter bag lengths

· Customized inlet and outlet connections

· Customized housing dimensions

This allows the filtration system to be designed around the actual project rather than forcing every application into one standard configuration.

3. Easy Filter Bag Replacement

The stainless steel housing is reusable, while the filter bag is the replaceable filtration media.

When the filter bag reaches its replacement point, operators can remove the used bag and install a new one without replacing the entire housing.

Reusable Housing + Replaceable Filter Bag

This simple design can help reduce maintenance complexity and keep consumable costs separate from equipment costs.

4. Captured Solids Stay Inside the Filter Bag

Suspended solids are captured inside the filter bag.

Rust particles, scale, silt, and other contaminants can therefore be removed together with the used bag during routine maintenance.

Unlike filtration systems that require regular backwashing, a bag filter does not need to discharge backwash water during normal bag replacement.

This can help minimize loose-solids handling and routine wastewater generated by the filtration step.

5. Helps Protect Cooling Equipment

The main purpose of cooling-water filtration is equipment protection.

By removing suspended particles from the cooling loop, filtration can help reduce the risk of particulate accumulation and fouling on:

· Heat exchangers

· Pumps

· Valves

· Cooling towers

· Piping

· Other cooling-system components

Cleaner cooling water can support more stable system operation and reduce maintenance requirements.

Bag Filter Applications in Data Center Cooling Systems

Stainless steel bag filter systems can be considered for applications such as:

Cooling Tower Water
Removal of suspended solids from recirculating cooling water.

Chilled Water Systems
Particulate filtration for appropriate chilled-water loops.

Heat Exchanger Protection
Removal of particles before they accumulate on heat-transfer surfaces.

Liquid Cooling Infrastructure
Filtration for suitable water circuits supporting high-density computing and AI infrastructure.

Side-Stream Filtration
Continuous filtration of a portion of the cooling-water flow to help control suspended solids without filtering the entire system flow.

A Flexible Filtration Solution for Modern Data Centers

As AI continues to drive the development of high-density data centers, cooling infrastructure must handle increasing thermal loads while maintaining reliable operation.

A stainless steel bag filter housing + replaceable filter bag provides a flexible approach to cooling-water filtration.

With:

· 1–200 μm filtration options

· Customized flow capacity

· 304 / 316L stainless steel housing options

· Single- or multi-bag configurations

· Easy filter bag replacement

· Captured solids contained inside the filter bag

· Reduced risk of corrosion-related contamination

· Protection for critical cooling equipment

the system can be configured for different data center cooling-water applications.

Looking for a Data Center Cooling Water Filtration Solution?

We manufacture stainless steel bag filter housings and industrial filter bags for liquid filtration applications.

Contact us today!

Our team can recommend a suitable stainless steel bag filter housing + filter bag configuration for your cooling-water system.
