Ultrafiltration System for E-Coat (KTL): Membranes, Components and Industrial Applications
Introduction
Electrophoretic coating, commonly known as E-Coat or KTL, is widely used in industries requiring uniform, corrosion-resistant, and high-quality surface finishing. From automotive bodies to industrial metal components, E-coat processes rely on stable bath chemistry and efficient material recovery.
An ultrafiltration (UF) system plays a critical role in modern E-coat lines. It enables paint recovery, maintains bath stability, reduces water consumption, and ensures consistent coating quality. Beyond the UF membranes themselves, a complete ultrafiltration system consists of multiple supporting components, including bag filter housings, pumps, piping, and cleaning systems.
This article provides a comprehensive overview of an ultrafiltration system for E-coat (KTL), focusing on:
UF membranes and system design
Key filtration components
The role of single-bag and multi-bag filtration systems
Typical industrial applications
The Role of Ultrafiltration in E-Coat (KTL) Processes
Why Ultrafiltration Is Essential in E-Coat
During the E-coat process, a significant amount of paint is carried out of the bath along with the coated parts. Ultrafiltration systems are used to:
Recover paint solids from drag-out
Produce permeate for post-rinsing stages
Control bath conductivity and solid content
Reduce paint loss and operating costs
Minimize wastewater discharge
Without a stable UF system, paint utilization efficiency decreases and bath quality becomes difficult to control.
Basic Working Principle of an E-Coat UF System
An E-coat ultrafiltration system separates components based on molecular size:
Retentate: Contains paint solids and is returned to the coating bath
Permeate: Low-solid-content liquid reused for rinsing or bath control
UF membranes allow water and small molecules to pass while retaining resin, pigments, and binders. Continuous circulation ensures stable operation and consistent coating performance.

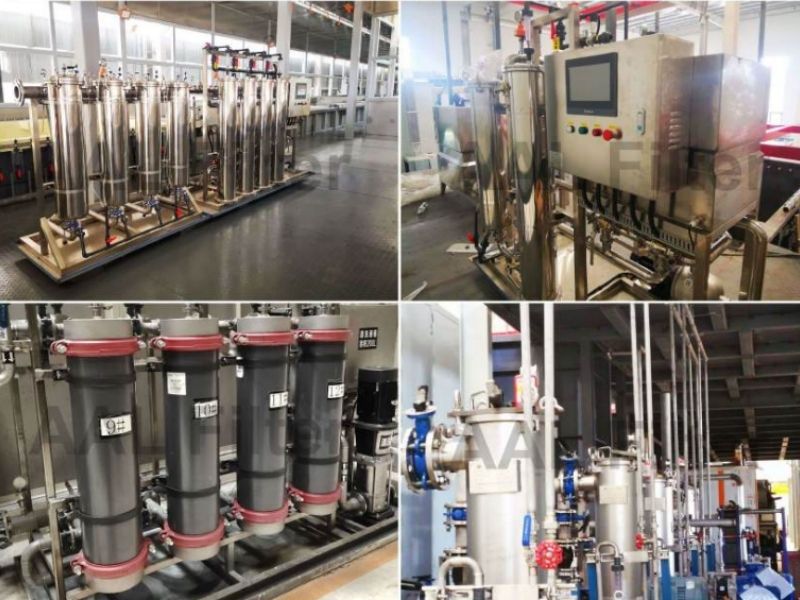

Main Components of an Ultrafiltration System for E-Coat
A complete UF system for electrophoretic coating is more than just membranes. It is an integrated filtration solution consisting of several key components working together.
Ultrafiltration Membranes for E-Coat Applications
UF Membrane Requirements in KTL Systems
Ultrafiltration membranes used in E-coat systems must meet specific requirements:
High chemical resistance to coating formulations
Stable flux under continuous operation
Resistance to fouling by paint solids
Compatibility with CIP (clean-in-place) procedures
Common UF Membrane Configurations
Hollow fiber membranes
Tubular membranes
Flat-sheet modules
The selection depends on coating chemistry, system capacity, and maintenance strategy.
Pre-Filtration System: Multi-Bag Filter Housings
Why Pre-Filtration Is Critical Before UF Membranes
Pre-filtration is installed upstream of UF membranes to remove:
Paint agglomerates
Gel particles
Solid contaminants
Foreign debris introduced during production
Effective pre-filtration significantly reduces membrane fouling and extends UF membrane service life.
Multi-Bag Filter Housings as Industry Standard
In E-coat ultrafiltration systems, multi-bag filter housings are typically used for pre-filtration due to the following reasons:
High Flow Capacity
UF feed flow rates are relatively high
Multi-bag configurations distribute flow evenly
Lower pressure drop compared to single-bag units
Continuous Operation
E-coat lines often operate 24/7
Multi-bag systems reduce filter change frequency
Less risk of unplanned production downtime
Stable Protection for UF Membranes
Parallel filtration improves pressure stability
Consistent inlet conditions protect membrane performance
Typical configuration:
4-bag, 6-bag, or 8-bag stainless steel bag filter housing
Filter bag materials: PP, PE, or Nylon
Filtration ratings: 25–100 μm (depending on paint condition)
Circulation and Bypass Filtration: Single-Bag Filter Housings
Role of Circulation Filtration in E-Coat Systems
In addition to pre-filtration, many E-coat systems include circulation or bypass filtration loops. These loops are used to:
Maintain bath cleanliness
Remove fine paint residues
Stabilize long-term bath quality
Polish the circulating liquid
Why Single-Bag Filters Are Commonly Used
Single-bag filter housings are well-suited for circulation filtration due to:
Moderate Flow Rates
Circulation flow is typically lower than main UF feed flow
Single-bag housings provide sufficient capacity
Compact Design and Easy Maintenance
Smaller footprint
Lower installation and maintenance costs
Quick filter bag replacement
Flexible Filtration Control
Often used with finer filtration ratings
Supports precise bath quality management
Typical configuration:
Single-bag stainless steel filter housing
Filter ratings: 10–50 μm
Installed in bypass or internal circulation loops

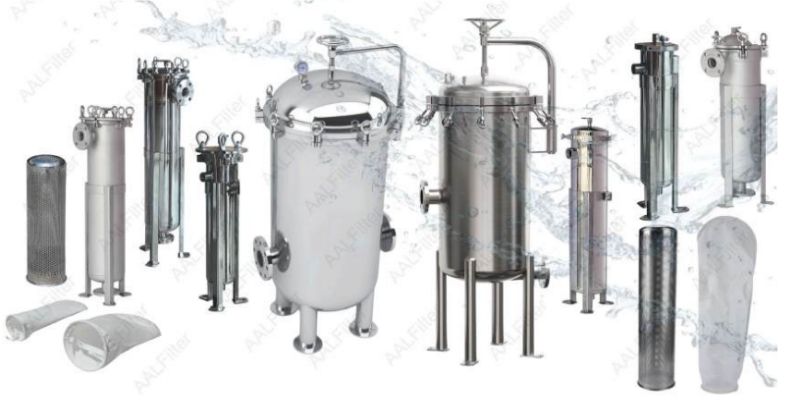

Other Key Components of an E-Coat Ultrafiltration System
Beyond membranes and bag filters, a complete UF system includes several supporting components:
Chemical-resistant circulation pumps
Stainless steel piping and valves
Pressure gauges and flow meters
CIP cleaning system (tanks, pumps, and piping)
Seals, O-rings, and connection fittings
Each component contributes to stable operation and long-term system reliability.
Industrial Applications of E-Coat Ultrafiltration Systems
Automotive and Automotive Parts Manufacturing
Vehicle bodies and frames
Chassis and structural components
High-volume, continuous E-coat lines
Home Appliances and Metal Products
Refrigerators, washing machines, and enclosures
Cost-effective and stable bath control
Industrial Equipment and Heavy Manufacturing
Large workpieces
High contamination load
Robust filtration requirements
System Integrators and Retrofit Projects
New E-coat line installations
UF membrane and component replacement
System upgrades and capacity expansion
Complete UF System Supply vs. Individual Components
Many E-coat operators face challenges when sourcing components from multiple suppliers, including compatibility issues and longer commissioning times.
Supplying a complete ultrafiltration system, including membranes, bag filter housings, filter bags, and accessories, offers clear advantages:
Matched system design
Simplified maintenance
Reduced operational risk
Faster technical support and replacement
How to Select the Right Ultrafiltration System for E-Coat
Key considerations include:
Paint chemistry and formulation
Required permeate flow rate
System operating pressure
Pre-filtration and circulation filtration strategy
Availability of spare parts and consumables
Proper system selection ensures long-term stability and optimal coating performance.
Conclusion
An ultrafiltration system for E-coat (KTL) is a critical element in achieving high-quality, cost-efficient electrophoretic coating operations. From UF membranes to multi-bag pre-filtration systems and single-bag circulation filters, every component plays an essential role in maintaining bath stability and maximizing paint recovery.
A well-designed UF system, combined with reliable filtration components and proper maintenance, supports consistent production, reduced waste, and improved operational efficiency across a wide range of industrial applications.
