Metal Filter Cartridges: The Ultimate Filtration Solution for High-Temperature, High-Pressure, and Corrosive Environments

In modern industrial applications, the reliability and performance of filtration systems are paramount. Metal filter cartridges, with their exceptional resistance to high temperatures, corrosion, and reusability, have become the preferred choice for challenging operating conditions. This article provides a comprehensive overview of metal filter cartridges, including their types, working principles, key advantages, and applications, helping you make informed decisions for your filtration needs.

1. What Are Metal Filter Cartridges?

Metal filter cartridges are advanced filtration elements made from materials such as stainless steel or titanium alloys, crafted through processes like weaving, sintering, or pleating. Their primary function is to remove suspended particles, impurities, and contaminants from liquid or gas streams, protecting equipment, enhancing product purity, or meeting stringent process requirements.

Unlike traditional filter media, metal filter cartridges offer superior structural stability, support high-intensity cleaning, and are reusable, making them ideal for applications requiring continuous operation in high-temperature, high-pressure, or highly corrosive environments.

2. How Do Metal Filter Cartridges Work?

Metal filter cartridges are critical components in industrial filtration systems, typically constructed from stainless steel, titanium, or other metals. They remove solid particles, impurities, or contaminants from liquids or gases through physical interception, adsorption, or sieving. Below is a summary of their working principle:

✅ Filtration Process

● Surface Interception: The cartridge’s porous structure (e.g., metal mesh, sintered powder, or fiber felt) captures solid particles, suspended matter, or impurities based on pore size (ranging from a few microns to hundreds of microns).

● Depth Filtration: Particles are progressively trapped within the multi-layered porous structure, enhancing filtration efficiency and dirt-holding capacity.

● Clean Fluid Output: Filtered fluid exits the cartridge (from the interior or exterior, depending on design) and proceeds to downstream processes or systems.

✅ Role of Pore Structure

Metal cartridges feature uniform or graduated pore structures, enabling precise filtration based on target particle sizes.

● Sintered Metal Cartridges: Formed by high-temperature sintering of metal powders, offering high strength and uniform pore sizes for high-precision filtration.

● Metal Mesh Cartridges: Constructed from woven or layered metal wire mesh, suitable for coarser particle filtration.

● Pleated Design: Some cartridges use pleating to increase filtration surface area, improving flow rates and dirt-holding capacity.

✅ Self-Cleaning or Backwashing (Optional)

● Certain metal cartridges support self-cleaning via backwashing or gas blowback to remove accumulated impurities.

● Backwashing Process: Clean liquid or gas is introduced in reverse to dislodge particles, which are then discharged through a drain port.

● This extends cartridge lifespan and reduces maintenance frequency.

✅ Dirt Accumulation and Pressure Differential

● As filtration progresses, particles accumulate on or within the cartridge, increasing the pressure drop across the filter.

● When the pressure differential reaches a set threshold, the system may trigger cleaning or replacement.

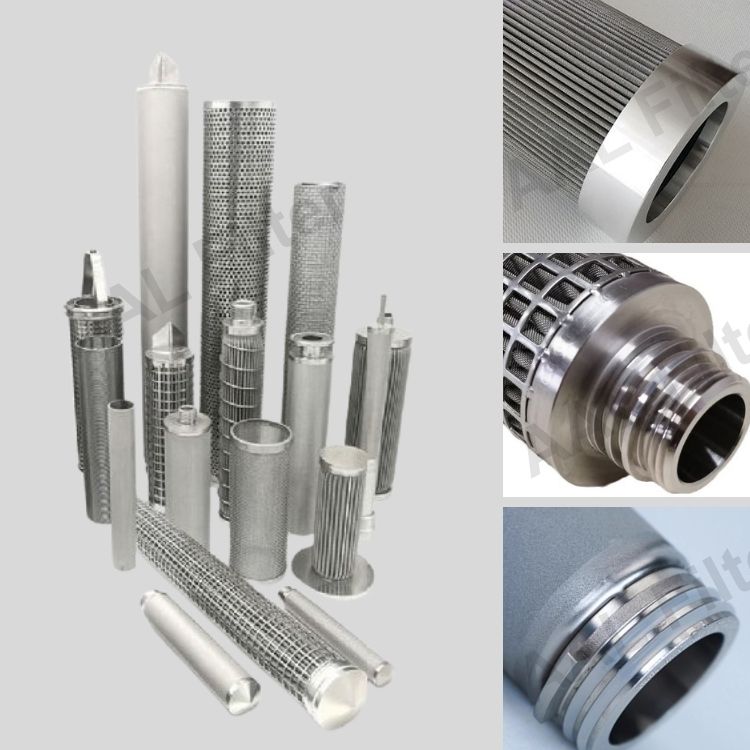

3. AAL Filter’s Metal Filter Cartridge Types

AAL Filter offers a diverse range of metal filter cartridges tailored to meet various industrial filtration needs. Our four primary types include: AAL PMF (Pleated Metal Felt), AAL FSMM (Five-Layer Sintered Metal Mesh), AAL TPS (Titanium Powder Sintered), and AAL PSM (Pleated Stainless Steel Mesh Melt). Each type is engineered for specific industrial applications.

🔹AAL PMF (Pleated Metal Felt Cartridge)

The AAL PMF cartridge utilizes stainless steel sintered fiber felt, pleated to maximize filtration surface area and achieve absolute filtration accuracy. The sintered felt, a porous depth-type filter media created by high-temperature sintering of stainless steel fibers, delivers high durability and efficient impurity removal from fluids like water, oil, and gas.

Its unique structure ensures high dirt-holding capacity, low pressure drop, and extended service life, making AAL PMF an ideal choice for applications demanding high filtration efficiency and durability.

🔹AAL FSMM (Five-Layer Sintered Metal Mesh Cartridge)

The AAL FSMM cartridge is crafted by sintering multiple layers of 316 or 304 stainless steel mesh, offering exceptional corrosion resistance and durability. Its high dirt-holding capacity is a standout feature, perfect for applications requiring efficient filtration.

The cartridge’s excellent backwashing performance makes it a top choice for solid-liquid separation, especially for liquids with rigid particles. AAL FSMM excels in backwashing rigid particles, ensuring robust performance in high-demand filtration scenarios.

🔹AAL TPS (Titanium Powder Sintered Cartridge)

The AAL TPS cartridge is made from over 99.4% high-purity titanium powder through sintering, providing superior chemical compatibility for filtering most liquids. Its titanium structure ensures corrosion resistance, high-temperature tolerance, and long-term performance in harsh environments.

Particularly effective for separating rigid particles from low-viscosity liquids, AAL TPS is recommended for use with titanium rod filters for optimal results. It is widely used in chemical, pharmaceutical, and food & beverage industries.

🔹AAL PSM (Pleated Stainless Steel Mesh Melt Cartridge)

The AAL PSM cartridge is constructed from woven stainless steel mesh, available in pleated or cylindrical configurations. The pleated design significantly increases filtration surface area, enhancing flow rates and lifespan, making it versatile for various applications.

Its stainless steel mesh offers excellent corrosion resistance and effectively removes impurities from fluids like water, oil, and gas. AAL PSM is one of the most widely used stainless steel cartridges due to its versatility, efficiency, and durability.

4. Advantages of Metal Filter Cartridges

Metal filter cartridges offer several distinct advantages in modern industrial applications:

✅ High-Temperature and High-Pressure Resistance: Operates reliably in extreme conditions.

✅ Superior Corrosion Resistance: Compatible with various chemical media.

✅ Structural Stability: Resists deformation or rupture.

✅ Easy to Clean and Reusable: Reduces replacement frequency and operational costs.

✅ Long Service Life: Cost-effective and durable.

✅ Customizable Precision: Meets diverse process requirements.

5. Typical Application Industries

Metal filter cartridges serve critical roles across numerous industries:

● Petrochemical: Crude oil processing, gas desulfurization, catalyst filtration.

● Pharmaceutical: Injectable solution filtration, gas sterilization, reactor exhaust purification.

● Food & Beverage: Fermentation broth, drinking water, and beverage filtration.

● Water Treatment & Desalination: RO pretreatment, ultrapure water production.

● New Energy: Battery material purification, hydrogen energy systems.

● Metal Processing & Smelting: Melt filtration, cutting fluid purification, coating recovery.

6. Conclusion

Metal filter cartridges, with their efficient filtration, durability, and eco-friendliness, are becoming indispensable in industrial filtration systems. Whether facing high temperatures, high pressures, corrosive media, or stringent cleanliness requirements, metal filter cartridges deliver reliable, long-lasting solutions.

If you’re seeking a trusted supplier of industrial metal filter cartridges, explore AAL Filter’s metal series. We offer high-performance stainless steel and titanium alloy cartridges, supporting customized specifications and bulk OEM production to enhance your system’s efficiency and stability.

Contact AAL Filter today to request a product catalog, sample, or technical consultation, and upgrade your filtration system effortlessly!

Frequently Asked Questions (FAQ) | AAL Filter Metal Cartridges

Q1: What are metal filter cartridges?
🅰️Metal filter cartridges are filtration elements made from stainless steel, titanium, or other metals, designed to remove solid impurities from liquids or gases. AAL Filter’s cartridges include sintered felt, sintered mesh, and titanium powder structures, offering excellent resistance to high temperatures, corrosion, and pressure.

Q2: What conditions are AAL Filter’s metal cartridges suitable for?
🅰️AAL Filter’s metal cartridges are ideal for:

● High temperatures (up to 500°C+).

● High pressures (supporting high differential pressures).

● Corrosive environments (e.g., acids, alkalis, organic solvents).

● High-viscosity fluids (e.g., oils, resins, syrups).

● Reusable applications (e.g., CIP/SIP systems).

Q3: What types of metal cartridges does AAL Filter offer?
🅰️We provide four metal cartridge types for diverse needs:

● AAL PMF: Pleated metal felt for high-precision depth filtration.

● AAL PSM: Pleated stainless steel mesh for high-flow, coarse pre-filtration.

● AAL TPS: Titanium powder sintered for corrosive environments and high-purity filtration.

● AAL FSMM: Five-layer sintered metal mesh for robust backwashing and structural stability.

Q4: How do metal cartridges achieve filtration?
🅰️AAL Filter’s metal cartridges filter through:

● Surface Interception: Large particles are trapped on the filter surface.

● Depth Filtration: Porous structures capture fine particles layer by layer for high precision.

Q5: Are metal cartridges reusable?
🅰️Yes. AAL Filter’s metal cartridges are durable and support backwashing, ultrasonic cleaning, or chemical cleaning, significantly reducing operational costs and offering an eco-friendly solution.

Q6: How do I ensure a metal cartridge is compatible with my fluid or gas?
🅰️Provide your specific conditions (e.g., media composition, temperature, pressure) to our technical team. We’ll recommend the best metal material (e.g., 316L, 304, titanium) and design for compatibility and safety.

Q7: Are metal cartridges suitable for high-viscosity fluids?
🅰️Yes. AAL Filter’s metal cartridges excel in filtering high-viscosity fluids like lubricants, resins, polymer melts, and syrups, offering excellent flow and anti-clogging performance.

Q8: Can AAL’s metal cartridges be customized?
🅰️Absolutely. We offer customization for:

● Cartridge dimensions (length, diameter, interface).

● Filter media (sintered felt, metal mesh, titanium powder).

● Precision range (1μm to 100μm+).

● Housing/end cap designs (welded, threaded, clamp).

Q9: What advantages do metal cartridges have over conventional ones?
🅰️Metal cartridges outperform traditional filters with:

● Resistance to high temperatures, pressures, and corrosion.

● Extended lifespan and reusability.

● High precision and large flow rates.

● Robust structure, resistant to damage or deformation.

Q10: How do I clean metal cartridges?
🅰️Depending on the contaminant, cleaning methods include:

● Backwashing with clean water or high-pressure water.

● Ultrasonic cleaning.

● Chemical soaking (e.g., alkaline or acidic solutions).

● Thermal baking for carbon removal (for high-temperature contaminants).
