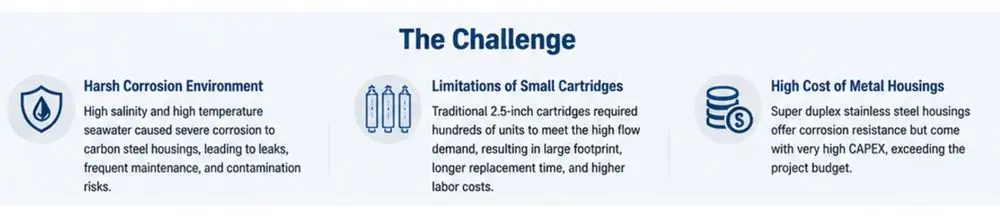

1. Pain Points: The “Double Threat” of Middle East Seawater

Operating seawater desalination plants in the Middle East comes with unique challenges:

· Extreme corrosion environment: High salinity and elevated water temperatures accelerate corrosion, demanding highly resistant filtration systems.

· Traditional metal housings are costly and vulnerable: Carbon steel and standard stainless steel housings corrode quickly, causing system bypassing or secondary contamination. Advanced metals like Super Duplex stainless steel offer durability but come with prohibitive procurement costs.

· Small 2.5-inch cartridges create bottlenecks: Large flow volumes require hundreds of small cartridges, increasing footprint, downtime, and labor for replacements.

Learn more about 5 Problems High Flow Filter Cartridges Can Solve

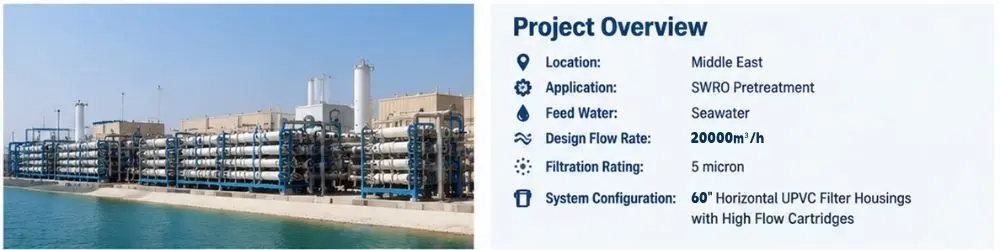

2. Project Scenario: A Middle East SWRO Plant

This case focuses on a large-scale SWRO (Seawater Reverse Osmosis) plant in the Middle East, where pre-treatment efficiency is critical.

Project Highlights

· Application: RO pre-treatment

· Water Source: Seawater

· Flow Requirement: High-volume, continuous operation

· Material Requirement: 100% corrosion-resistant housing

· Space Constraint: Limited footprint with high impurity removal efficiency

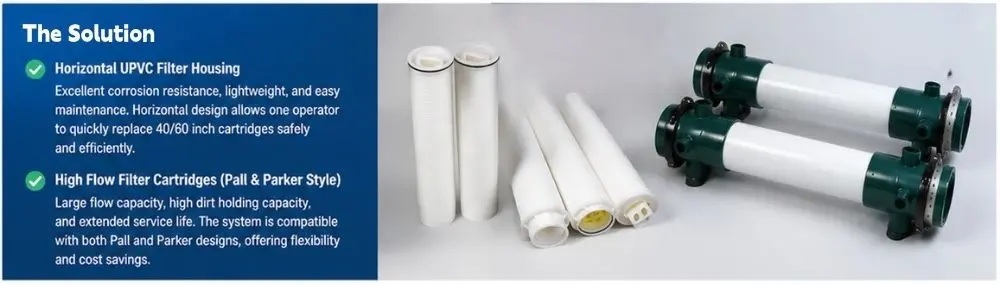

3. Solution: High Flow Cartridges in Horizontal UPVC Housings

3.1 Horizontal UPVC Filter Housing

· Material advantage: UPVC is naturally immune to seawater corrosion, eliminating coating maintenance and reducing costs compared to specialized metals.

· Design advantage: Horizontal layout allows a single operator to remove and replace long 40/60-inch cartridges safely, without scaffolding or complex rigging. This design minimizes downtime and improves maintenance safety.

3.2 High Flow Filter Cartridges: Pall & Parker Compatible

The plant used large flow cartridges compatible with both major designs:

· Pall-style (Inside-to-Outside flow): Traps impurities inside the cartridge, preventing contamination during replacement.

· Parker-style (Supported Outer Diameter): Handles high solids content, ideal for pre-filtration in challenging seawater.

Choosing Between Pall-Style and Parker-Style High Flow Filters

In high-flow desalination pretreatment systems, two mainstream flow configurations are commonly used:

One. If minimizing secondary contamination during cartridge replacement is a priority, Pall-compatible high flow filters are often preferred, as contaminants remain trapped inside the cartridge.

Two. For seawater with higher suspended solids, Parker-style high flow filters offer excellent dirt-holding capacity and extended service life.

The horizontal UPVC filter housing used in this project can be configured for either flow direction, providing full compatibility with both Pall and Parker-style cartridges to meet different operating requirements.

Read more about how to choose high flow filter cartridge.

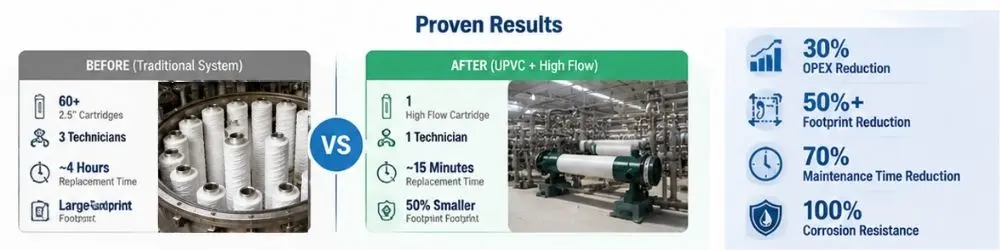

4. Results & Benefits

The plant realized significant improvements after implementing the horizontal UPVC housing and high flow cartridges:

· Space efficiency: Replacing dozens of small cartridges with a single high flow cartridge reduced footprint by over 50%.

· Maintenance efficiency: Downtime and labor dropped dramatically, enhancing operational reliability.

· ROI: The UPVC solution lowered both upfront procurement and long-term OPEX compared with high-grade metal alternatives.

5. Call to Action

· For Pall / Parker replacement needs: "Are you tired of long lead times and high costs from original brands? We supply premium, certified [Pall compatible high flow filters] and [Parker ParMax equivalents] designed for rigorous desalination plants."

· For UPVC housing inquiries: "Looking for a non-corrosive, cost-effective housing solution for your water treatment project? Check out our industrial [Horizontal UPVC Filter Housings]."

· Free engineering selection: Send your flow and water quality data for a tailored B2B quote and custom filtration solution.
