Deep Comparison of UF and RO and Cost-Saving Strategies for Large Water Reuse Projects

1️⃣ RO Systems Becoming Consumables Black Holes: The Pain Point

For many plant managers and EPC engineers, the biggest headache is not the RO system itself—but its relentless consumption of money and time.

Typical scenario:

· RO membranes designed for 3 years fail within 6–12 months.

· Intensive chemical cleaning becomes routine, sometimes monthly.

· Permeate flow declines sharply; energy consumption rises.

The instinct is to blame the RO membranes. Yet in most cases:

The root cause is upstream ultrafiltration (UF).

· UF fibers break or foul.

· Flux design is too aggressive.

· Colloids, bacteria, and organics bypass pretreatment.

The result: RO membranes are assaulted by contaminants they are never designed to handle.

In many desalination and water reuse plants, operators also install additional pre-filtration stages such as high-flow cartridge filters to reduce the solids load reaching UF systems and further stabilize RO performance.

Key insight:

RO performance is only as good as its UF pretreatment.

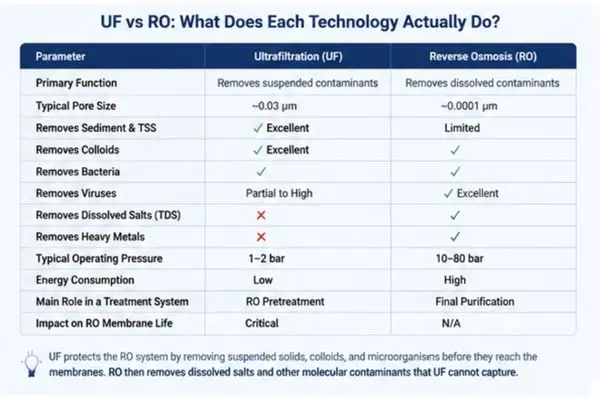

2️⃣ UF vs RO: Understanding Their Roles

To prevent RO fouling, it is crucial to understand the functional difference between UF and RO.

Bottom line: UF “cleans,” RO “purifies.”

Without stable UF, SDI rises, turbidity spikes, and RO membranes degrade prematurely.

Depending on water quality and project requirements, bag filtration systems are often installed ahead of UF units to remove larger particles and extend membrane cleaning intervals.

3️⃣ Case Study: DuPont IP-77XP – An Industry Benchmark

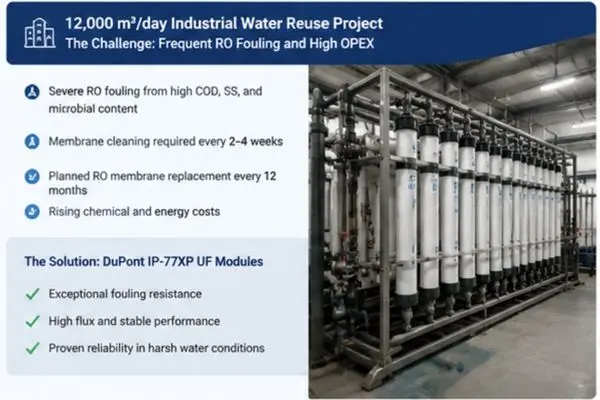

Project: Large coastal chemical plant, 12,000 m³/day water reuse.
Challenge: High organics, seasonal turbidity spikes, microbial load.

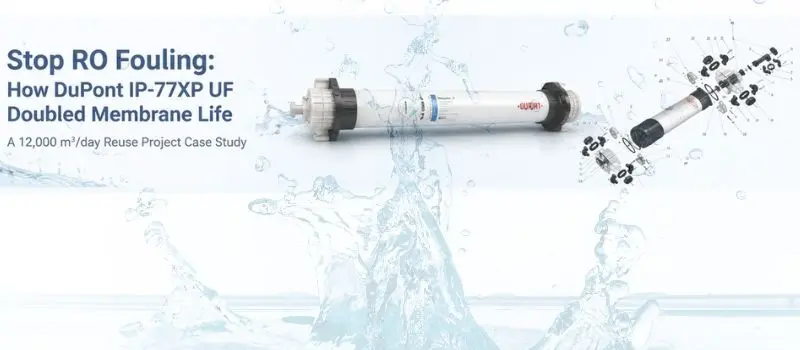

Solution: DuPont IntegraTec™ XP 77 IP (IP-77XP) modular ultrafiltration.

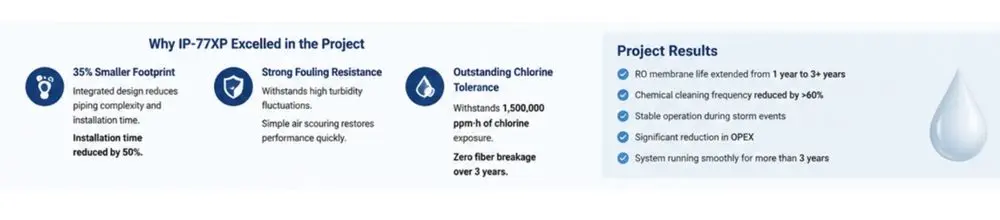

Why IP-77XP excelled:

① 35% Smaller Footprint

· Integrated module design eliminated external headers.

· Faster installation, shorter construction cycle (~50% time saved).

Similar modular design concepts are increasingly being adopted in modern FRP high-flow filtration systems to reduce installation complexity and operating costs.

② Strong Fouling Resistance & Quick Recovery

· Proprietary 77 m² hydrophilic membranes.

· Standard air scouring restored TMP after high-turbidity events.

③ Outstanding Chlorine Tolerance

· Cumulative resistance: 1,500,000 ppm·h.

· Allowed frequent sodium hypochlorite cleaning without fiber breakage.

· After 3 years: zero fiber breaks, RO membranes protected.

Result: RO membrane life effectively doubled, downtime minimized, energy and chemical costs reduced.

4️⃣ Cost-Saving Hook: 1:1 Retrofit Solutions

Even with proven performance, original IP-77XP modules are expensive.

Solution: Domestic manufacturers now offer 1:1 replacement modules:

· Same 77 m² membrane area

· DN100 quick-connect compatible

· Fits existing IntegraPac racks without modifying pipework

· Price: 40–50% of OEM cost

✅ Ideal for: municipal water treatment, industrial reuse, non-extreme feedwater conditions.

In addition to membrane replacement strategies, many facilities achieve significant operating cost reductions by upgrading pretreatment equipment, optimizing filter housing design, and using UPVC high-flow filtration technologies that reduce cartridge change-outs and labor requirements.

CTA (Call to Action):

If your IP-77XP system is nearing a replacement cycle, or your RO is fouling frequently, contact us for:

· Free IP-77XP 1:1 retrofit selection guide

· TMP and system optimization support

· Cost-effective upgrade consultation

✅ Bottom Line

· RO fouling is usually UF’s fault, not the RO itself.

· DuPont IP-77XP UF provides proven long-term protection for RO membranes.

· 1:1 retrofit solutions make high-performance UF affordable for existing plants.

Protect your RO, extend membrane life, reduce OPEX—start with UF.
