HEPA Filters: The Ultimate Guide for Cleanroom Applications

I. Introduction

HEPA filter, also known as HEPA air filter, are essential components for cleanroom HVAC systems and even serve as key elements in many HEPA filter air purifiers used in industrial settings.

Clean air is paramount in industrial and commercial environments such as semiconductor labs, pharmaceutical manufacturing facilities, and aerospace cleanrooms. HEPA (High Efficiency Particulate Air) filters are a cornerstone of these cleanroom applications, ensuring that the air remains free of contaminants that can compromise sensitive processes and product quality.

This guide explains what HEPA filters are, how they work, the different HEPA grades, and key considerations for selecting the right filter for your cleanroom.

II. Understanding HEPA Filter

A. What Is a HEPA Filter?

A HEPA filter is an air filtration device that meets stringent performance standards. Specifically, a HEPA filter is designed to capture 99.97% to 99.99% of airborne particles that are 0.3 microns in size—or even smaller—using standardized testing methods set by organizations such as IEST and ISO. This certification ensures that HEPA filters provide exceptional efficiency in removing particulate matter from the air.

B. How Does a HEPA Filter Work?

HEPA filters are typically constructed from materials like PTFE or glass fiber arranged in a pleated, dense mat. As air passes through the filter, particles are removed through three primary mechanisms:

l Diffusion: Tiny particles move randomly (Brownian motion) and eventually collide with and adhere to the filter fibers.

l Interception: Particles following the airflow come in contact with and stick to the fibers.

l Impaction: Larger particles are forced to deviate from the airflow and directly hit the fibers, becoming trapped.

These combined mechanisms allow HEPA filters to capture a wide range of particle sizes, ensuring superior air quality.

III. HEPA Filter Grades and Their Relevance to Cleanrooms

A. HEPA Filter Grades Explained

HEPA filters are categorized by efficiency levels using the European standard, typically classified as H10, H11, H12, H13, and H14. These grades indicate increasing particle capture efficiency:

l H10: Lower efficiency, suitable for less critical environments.

l H11 to H12: Moderate efficiency, often used in settings with less stringent cleanliness requirements.

l H13: High efficiency (captures at least 99.95% of particles at the most penetrating particle size), commonly used in hospitals and laboratories.

l H14: Superior efficiency (captures up to 99.995% of particles), required for ultra-clean environments such as semiconductor cleanrooms and pharmaceutical manufacturing.

B. HEPA Filter Grades & Corresponding US Standards

In the United States, the standards align closely with European ratings, but are often referenced by the Minimum Efficiency Reporting Value (MERV) and HEPA standards defined by ASHRAE. For example, an H13 HEPA filter in Europe is roughly equivalent to a HEPA filter meeting the H13 performance criteria as defined by ISO 29463, and is comparable to high-performance HEPA filters used in US cleanrooms.

C. How Filter Grade Affects Cleanroom Performance

In cleanroom environments, maintaining the desired ISO class (e.g., ISO Class 5 vs. ISO Class 7) depends on balancing particle removal efficiency with airflow resistance. Higher-grade filters, while offering better particulate capture, tend to have higher pressure drops. Therefore, selecting the right HEPA filter grade involves weighing the need for ultra-low particle counts against energy consumption and system design constraints.

IV. Applications of HEPA Filters in Industrial Cleanrooms

A. Cleanroom Air Quality Requirements

Industries such as semiconductor manufacturing, pharmaceutical production, aerospace engineering, and biotechnology require extremely low particle counts to ensure product integrity and compliance with strict standards. HEPA filters are critical components in these environments, providing reliable air purification.

B. Typical Industrial Cleanroom Applications

l Semiconductor & Electronics Manufacturing:
HEPA filters prevent particulate contamination that can damage delicate microchips and circuit boards.

l Pharmaceutical & Biotech Facilities:
In operating rooms, sterile drug production, and packaging areas, HEPA filters help maintain aseptic conditions.

l Aerospace & Nanotechnology Labs:
Ultra-clean environments demand HEPA filtration to protect optical components and sensitive materials from airborne particles.

l General Commercial Cleanrooms:
Facilities like research laboratories and controlled manufacturing spaces rely on HEPA filters to meet stringent air quality standards.

C. Installation Locations for High-Efficiency HEPA Filter

High-efficiency HEPA filters can be installed in a variety of settings within industrial and commercial cleanrooms, including:

l HVAC Systems: At supply air ducts, return air ducts, and air handling units.

l Cleanroom Ceilings and Walls: Integrated into building systems to provide uniform air distribution.

l Laminar Flow Hoods: In laboratory workstations or clean benches.

l Biological Safety Cabinets: Ensuring containment and sterilization in medical or research environments.

l Fan Filter Units (FFUs): For modular cleanroom systems with top-down or side air supply.

l Standalone Air Purifiers: In areas requiring localized air cleaning, such as conference rooms or control rooms.

l Mobile Cleanroom Units: For temporary installations in manufacturing or emergency response.

V. Key Considerations When Selecting HEPA Filters for Cleanrooms

A. Product Form Factors

HEPA filters come in various form factors to suit different cleanroom system designs:

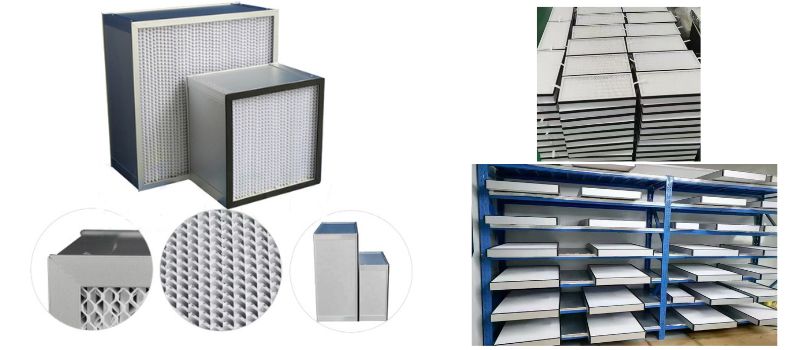

l Box-Type Filters:

With Separators: Mechanical Support, Enhance airflow distribution and improve filtration efficiency.

Without Separators(Mini-pleat HEPA): Simpler design for standard applications. Low Cost, Lightweight, and Low Initial Pressure Drop.

High-Temperature hepa filter: Designed for environments with elevated temperatures.

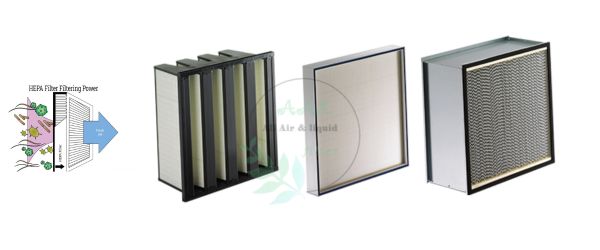

l Gel-Sealed HEPA Filter: Utilizing medical-grade silicone gel or polyurethane gel that fills the channel between the filter and mounting frame, curing to form a gapless seal. This design delivers exceptional sealing performance, vibration resistance, and extended service life.

l V-Bank High Flow hepa Filter: Provide increased surface area and efficient airflow, commonly used in modular cleanroom systems.

B. Filtration Efficiency vs. Airflow & Energy Consumption

For cleanroom applications, it is critical to balance high filtration efficiency with low airflow resistance. A sealed filtration system ensures that all air passes through the HEPA filter without bypassing, which is essential for achieving true HEPA-level performance. However, higher-grade filters (like H14) can create a greater pressure drop, which may increase energy consumption if not properly designed.

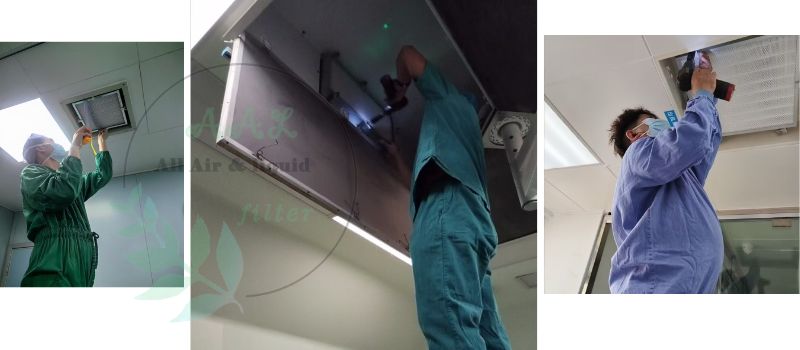

C. Hepa Filter Installation & System Integration

Proper installation is vital for maintaining HEPA performance:

l Sealing: Ensure that filters are fully sealed within the system to prevent bypass leaks.

l Pre-Filtration: Use pre-filters (e.g., MERV-8 pre-filters) to capture large particles before the air reaches the HEPA filter, thereby extending its life.

l System Compatibility: Verify that the filter dimensions and mounting mechanisms are compatible with your cleanroom’s HVAC system.

D. Maintenance & Replacement Guidelines

Regular maintenance is key to sustaining cleanroom air quality:

l Replacement Frequency: HEPA filters in cleanroom applications should be monitored and replaced based on pressure drop increases and overall air quality.

l Performance Monitoring: Use differential pressure gauges to detect filter clogging and ensure optimal performance.

l Service Life: Typically, HEPA filters used in cleanrooms have a longer lifespan (up to 10+ years) if properly maintained, though factors like usage and environmental load will affect this.

VI. Additional Air Purification Technologies in Cleanrooms

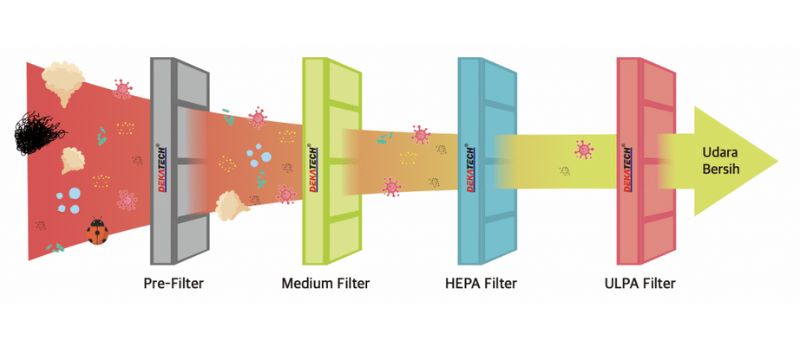

While HEPA filters are the backbone of cleanroom air filtration, they are often complemented by other technologies to achieve even greater air purity:

l Activated Carbon Filters: Remove VOCs and other gaseous contaminants.

l UVC Sterilization: Kills microorganisms that HEPA filters might not capture.

l Bipolar Ionization: Enhances particle removal and inactivates viruses and bacteria.

l Integrated Systems: Many modern cleanroom air purifiers combine HEPA filtration with these additional technologies to provide a comprehensive air cleaning solution.

VII. Frequently Asked Questions (FAQs) About HEPA Filters in Cleanrooms

Q1: What is the difference between H13 and H14 HEPA filters?
A: H13 filters capture about 99.95% of particles at 0.3 microns, while H14 filters achieve around 99.995% efficiency, making them suitable for more critical cleanroom environments.

Q2: Can HEPA filters remove viruses and ultrafine particles?
A: Yes, due to diffusion and interception, HEPA filters can effectively capture particles smaller than 0.3 microns, including many viruses.

Q3: How often should HEPA filters be replaced in a cleanroom?
A: Replacement frequency depends on air quality and system load; however, regular monitoring with differential pressure gauges is recommended to determine the optimal replacement time.

Q4: How does a sealed HEPA system improve air quality?
A: A fully sealed system ensures that all air passes through the HEPA filter without leakage, achieving true HEPA-level filtration.

Q5: What is the difference between a HEPA filter and a HEPA air purifier?

A: "A HEPA filter is the filtration element that captures particles, while a HEPA air purifier is a complete system that integrates the HEPA filter with additional technologies (like activated carbon, ionization, etc.) to continuously purify the air."
